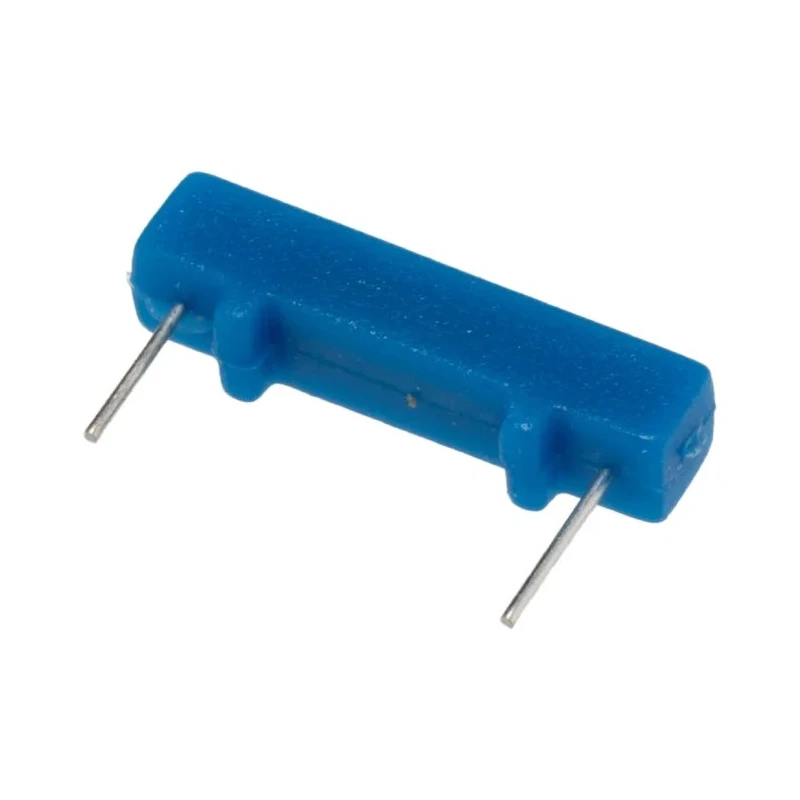

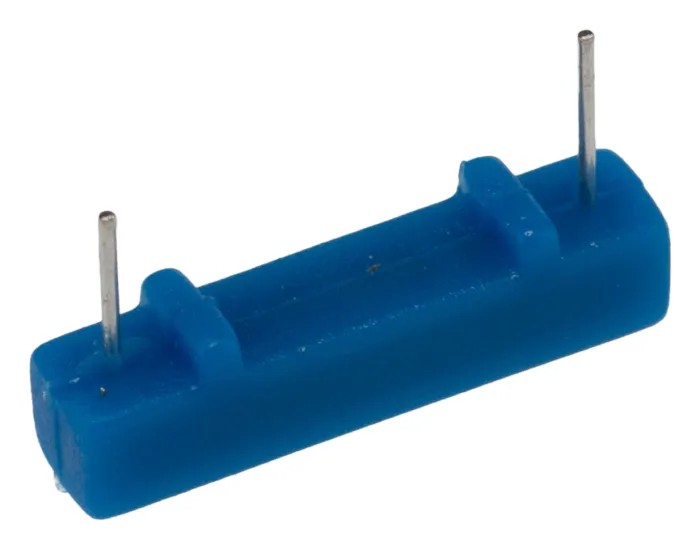

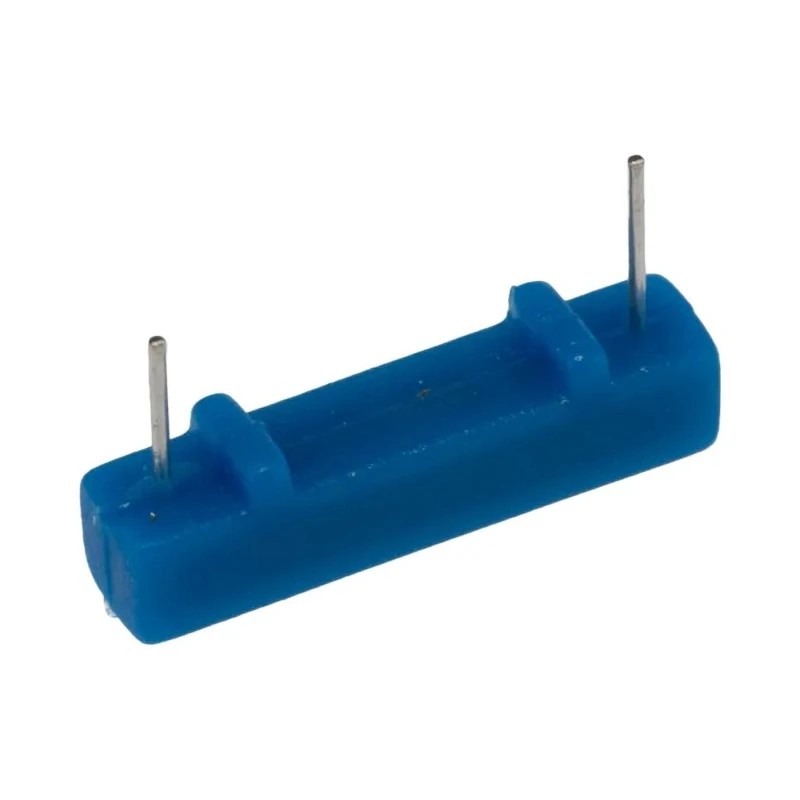

Assemtech Reed Switch Rectangular Housing Polypropylene 24V AC 0.1A PCB Terminal S1325
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Assemtech |
| Length | 14.8mm |
| Model | S1325 |
| Depth | 3.2mm |
| Width | 3.2mm |
| Housing Material | Polypropylene |
| Series | COMUS |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -25°C |
| Switching Current | 0.1A |
| Terminal type | PCB Terminal |
| Body Style | Rectangular |
| Standards/Approvals | RoHS |
| Switching AC Voltage | 24V ac |
| Assemtech Reed Switch 70V ac, 0.25ABrand | Assemtech |
Key Features
- The housing is made from durable polypropylene material ensuring electrical insulation and protection.
- It features a normally open (NO) contact form for switching functionality.
- Designed with PCB terminal type allowing easy integration into circuit boards.
- Operates efficiently within a temperature range from -25°C to 70°C.
- Compact dimensions of 14.8mm length, 3.2mm width, and 3.2mm depth make it suitable for tight spaces.
- The pin pitch measures 12mm providing standard mounting compatibility.
- Contact resistance is low at 200mΩ, ensuring minimal signal loss.
- RoHS compliant, indicating environmentally safe manufacturing processes.
Product Description
Assemtech S1325 Reed Switch is a high-quality magnetic proximity switch designed with a rectangular body style and constructed from polypropylene for robustness and insulation. This switch operates with a switching AC voltage of 24V and a switching current rating of 0.1A, making it ideal for low-power electrical and automation applications.
Its normally open (NO) contact form ensures the switch remains off until activated by a magnetic field, providing reliable control in circuit designs. Featuring PCB terminal type connections, it facilitates straightforward mounting on circuit boards with a standard pin pitch of 12mm.
The switch maintains operational stability across temperatures ranging from -25°C to 70°C, with contact resistance values maintained at 200mΩ for efficient electrical conductivity. This fully encapsulated design protects internal components from environmental factors, enhancing longevity.
Compact in size, measuring 14.8mm in length, 3.2mm in width, and 3.2mm in depth, it suits applications requiring space-efficient magnetic switching solutions. Compliance with RoHS standards ensures it meets environmental and safety regulations.
This product is manufactured in the United Kingdom and is ideal for use in industrial automation, electrical control circuits, HVAC systems, and other applications requiring precise magnetic switching.
The housing is polypropylene offering durable and reliable insulation. Switch operates at 24V AC with a current capacity of 0.1A. Rectangular form factor fits compact installation spaces. PCB terminal type simplifies electronic integration.
Wide operating temperature range from -25°C to 70°C. Low contact resistance enhances electrical efficiency. Fully encapsulated to protect against contaminants and mechanical shocks. RoHS certified for environmental compliance.
Explore more switches and components in the Electrical, Automation & Cables category on EnvMart for your industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a switching AC voltage of 24V and has a current rating of 0.1A.
It measures 14.8mm in length, 3.2mm in width, and 3.2mm in depth, making it suitable for compact installations.
It features a PCB terminal type, allowing for easy integration into circuit boards.
The switch operates efficiently within a temperature range from -25°C to 70°C.
It has a normally open (NO) contact form, meaning it remains off until activated by a magnetic field.
The contact resistance is low at 200mΩ, ensuring minimal signal loss during operation.
Yes, it is RoHS compliant, indicating it meets environmental safety regulations.
The housing is made from polypropylene, providing electrical insulation and protection.
This product is manufactured in the United Kingdom.
It is ideal for use in industrial automation, electrical control circuits, and HVAC systems.
The pin pitch measures 12mm, providing standard mounting compatibility.
This model belongs to the COMUS series of reed switches.
