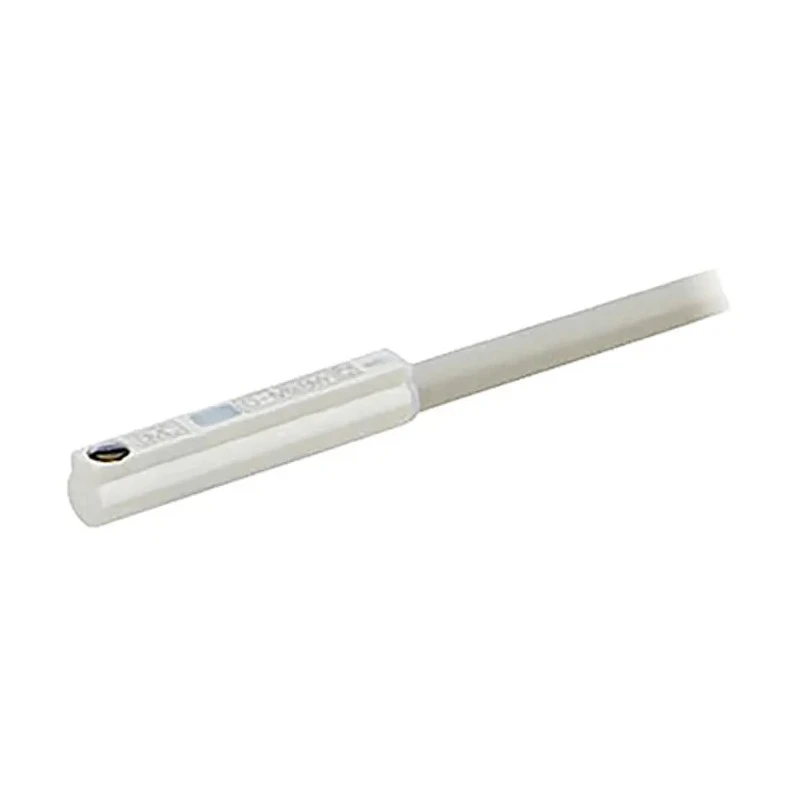

SMC Grommet Connector M12 4Pin, M8 4Pin, Pre Wired, Solid State Auto Switch D-M9NWVSAPC
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 200V dc |
| Brand | SMC |
| Model | D-M9NWVSAPC |
| IP Rating | IP67 |
| Operation Type | NPN, PNP, Reed Switch |
| Mount Type | Band, Direct, Groove, Rail, Tie-Rod |
| Housing Material | Oilproof Heavy-Duty Vinyl Cable |
| Series | D-M9N |
| Maximum Operating Temperature | 60°C |
| Sub Type | Solid State Switch |
| Minimum Operating Temperature | -10°C |
| Switching Current | 2.5, 40mA |
| For Use With | Auto switch, Series (C55,C76,C85,C95,CA2,CG1,CG5..S,CJ2,CJP2,CJ5..S,CL1,CLG1,CLJ2,CLM2,CLQ,CM2,CNA,CNG,CNS,CP95,CQ2,CQM,CQS,CRB1,CRB2,CRBU,CRJ,CRQ2,CS1,CU,CUJ,CXS,CXSJ,CXT,CXW,CY1F,CY1H/HT,CY1L,CY1S,E-MY2,MB,MB1,MDHR2,MDHR3,MGC,MGF,MGG,MGJ,MGP,etc) |
| Electrical Connection Type | Grommet, M12 4Pin, M8 4Pin, Pre Wired Connector (M8-3 Pin |
| Applicable Load | 24 V dc Relay/PLC |
Key Features
- Compatible with NPN, PNP, and Reed switch operation types.
- Features oilproof heavy-duty vinyl cable housing for durability.
- Designed for 200V DC voltage operation with IP67 rating.
- Includes LED indicator for position detection and status monitoring.
- Compatible with a wide range of SMC auto switches series (C55, C76, C85, and others).
- Supports switching currents of 2.5 and 40mA suitable for relay and PLC loads.
- Operating temperature range from -10°C to 60°C ensuring reliability in various environments.
- Meets multiple standards including JIS C 0920, IEC 947-5-2, UL, RoHS, CE, and IEC529.
Product Description
SMC D-M9NWVSAPC Grommet Connector is a high-quality pre wired connector designed for use with pneumatic cylinder switches. It features M12 4Pin and M8 4Pin configurations suitable for solid state switches providing reliable electrical connections in demanding industrial environments.
This connector supports NPN, PNP, and Reed-switch types, accommodating versatile operation modes for automation applications. Constructed with an oilproof heavy-duty vinyl cable housing, it provides excellent durability and resistance to harsh conditions.
Operating at 200V DC and rated IP67, it ensures robust protection against dust and water ingress. The integrated LED indicator facilitates easy monitoring and position detection, preventing incorrect operation and enhancing system reliability.
This product is highly compatible with many SMC auto switch series, such as C55, C76, C85, CA2, and others. It supports switching currents of 2.5mA and 40mA, making it ideal for control circuits including 24V DC relay and PLC applications.
The connector functions effectively within a temperature range of -10°C to 60°C, suitable for various industrial, manufacturing, laboratory, and pneumatic automation uses. Compliance with multiple international standards (JIS, IEC, UL, RoHS, CE) ensures safety and quality assurance.
Manufactured in Japan, the D-M9NWVSAPC connector upholds high reliability and precision, making it an excellent choice for OEMs and maintenance professionals requiring durable and secure Electrical Connectors for pneumatic cylinders.
Compatible with NPN, PNP, and Reed switch operation types. Durable oilproof heavy-duty vinyl cable housing. Rated for 200V DC voltage and IP67 protection. Includes LED indication for operational status and detection. Wide compatibility with SMC pneumatic auto switch series.
Supports switching currents of 2.5 and 40mA. Operational temperature range: -10°C to 60°C. Adheres to JIS, IEC, UL, RoHS, and CE standards. Manufactured in Japan for superior quality. Explore more pneumatic automation and sensor components at EnvMart for industrial and laboratory applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for 200V DC voltage operation.
It has an IP67 rating, providing protection against dust and water ingress.
It is compatible with NPN, PNP, and Reed switch operation types.
The operating temperature range is from -10°C to 60°C.
It supports switching currents of 2.5mA and 40mA, suitable for relay and PLC loads.
The housing is made of oilproof heavy-duty vinyl cable, ensuring durability in harsh conditions.
It features grommet connections with M12 4Pin and M8 4Pin configurations.
It is compatible with several SMC auto switch series including C55, C76, C85, CA2, and others.
The LED indicator facilitates position detection and status monitoring, enhancing operational reliability.
It can be mounted using band, direct, groove, rail, or tie-rod methods.
It meets multiple standards including JIS C 0920, IEC 947-5-2, UL, RoHS, CE, and IEC529.
This connector is manufactured in Japan, ensuring high quality and reliability.
