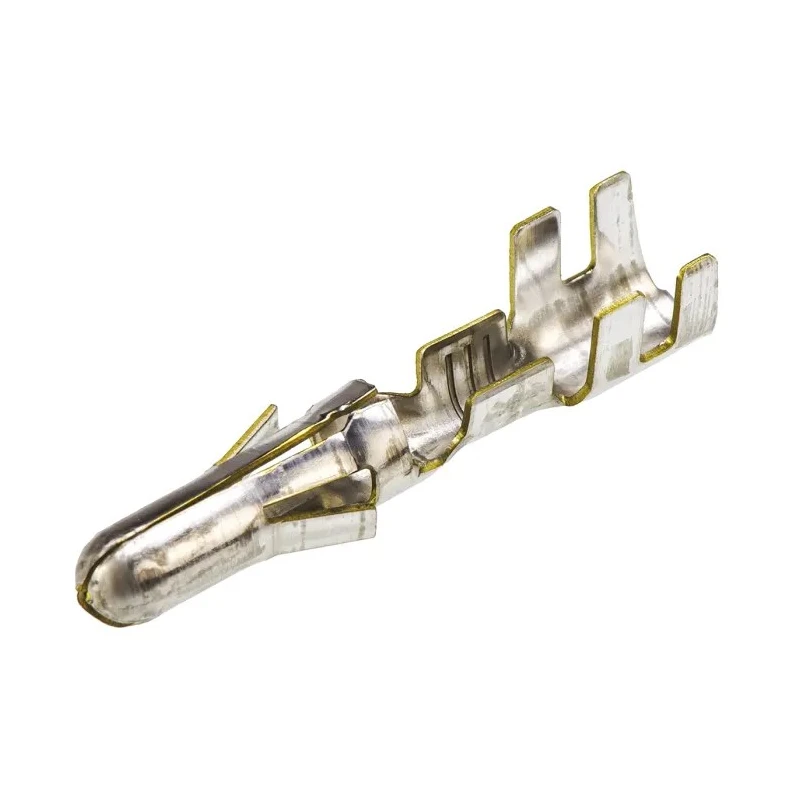

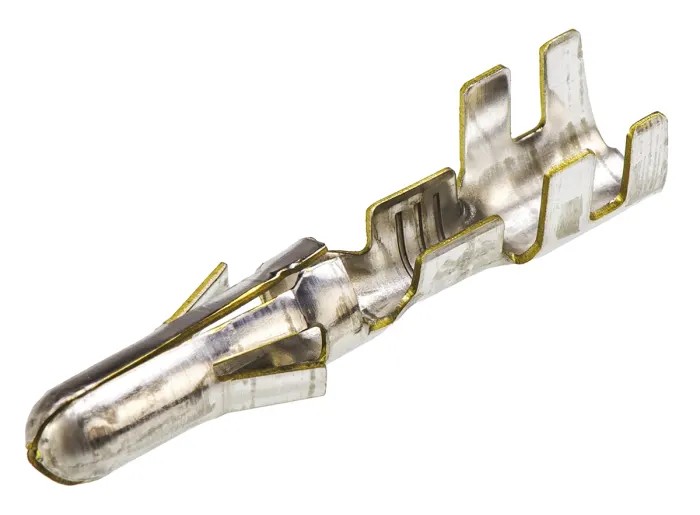

TE Connectivity Commercial MATE-N-LOK Series Male Crimp Terminal 20 AWG to 14 AWG 13A 350389-1

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Commercial MATE-N-LOK Series Male Crimp Terminal 20 AWG to 14 AWG 13A 350389-1

Name: TE Connectivity Commercial MATE-N-LOK Series Male Crimp Terminal 20 AWG to 14 AWG 13A 350389-1
Brand: TE Connectivity
SKU: 217812
Price: 0.49 USD
Availability: InStock



Category Crimp Terminal Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Current	13A
Length	20.19mm
Model	350389-1
Gender	Male
Contact Material	Brass
Series	Commercial MATE-N-LOK
Termination Type	Crimp
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Interfaces	lances assure optimum contact stability
For Use With	Commercial MATE-N-LOK Connector Housing
Contact Plating	Tin
Minimum Wire Size mm²	0.5mm²
Maximum Wire Size mm²	2mm²
Minimum Wire Size AWG	20AWG
Maximum Wire Size AWG	14AWG
Maximum Contact Resistance	4mΩ

Key Features

Constructed with brass contact material plated with tin for corrosion resistance.
Minimum wire size supported is 20 AWG (0.5 mm²) and maximum wire size is 14 AWG (2 mm²).
The terminal features dual locking lances for enhanced contact stability.
Suitable for use with Commercial MATE-N-LOK Connector Housings with fully polarized nylon construction.
Operates reliably between -55°C and 105°C temperature range.
Termination is by crimp, designed for wire-to-wire internal equipment connections.
Compact length of 20.19 mm enabling ease of insertion and removal.
Maximum contact resistance is 4 mΩ ensuring low electrical resistance.

Product Description

TE Connectivity 350389-1 Male Crimp Terminal from the Commercial MATE-N-LOK Series is engineered for secure and reliable electrical connections in commercial and industrial applications. This male contact terminal supports wire sizes ranging from 20 AWG (0.5 mm²) up to 14 AWG (2 mm²) and is rated for a current of 13 Amperes.

The contact is made of high-quality brass and plated with tin to ensure excellent conductivity and resistance to corrosion. Dual locking lances provide optimum contact stability within the fully polarized nylon connector housings designed for the .140 MATE-N-LOK pin and socket interfaces. The terminal length measures 20.19 mm, facilitating seamless insertion and extraction without specialized tools.

Operating within a temperature range of -55°C to 105°C, this Crimp Terminal is suitable for various industrial, commercial, and manufacturing environments requiring reliable wire-to-wire connections. The maximum contact resistance of 4 milliohms guarantees low signal loss.

This terminal is specifically designed for internal equipment connections with a wire pitch of 6.09 mm (.24 inches), compatible with TE's Commercial MATE-N-LOK connector housing series. The crimp termination type allows for robust mechanical and electrical connections, supported by tin-plated brass contacts.

Brass contact material plated with tin provides durability and corrosion resistance. Supports wire sizes from 20 AWG to 14 AWG, covering a broad range of wiring applications. Dual locking lances ensure secure and stable contact within connector housings.

Operates reliably over a wide temperature range from -55°C to 105°C. Compact size with 20.19 mm length facilitates easy installation in confined spaces. Maximum contact resistance of 4 mΩ ensures efficient electrical performance.

Compatible with .140 MATE-N-LOK commercial connector housings with a 6.09 mm pitch. Ideal for use in electronic components assemblies, industrial controls, commercial power connectors, and related electrical applications demanding precision and reliability.

Explore more connectivity solutions and accessories in the Crimp Contacts category available on EnvMart.
