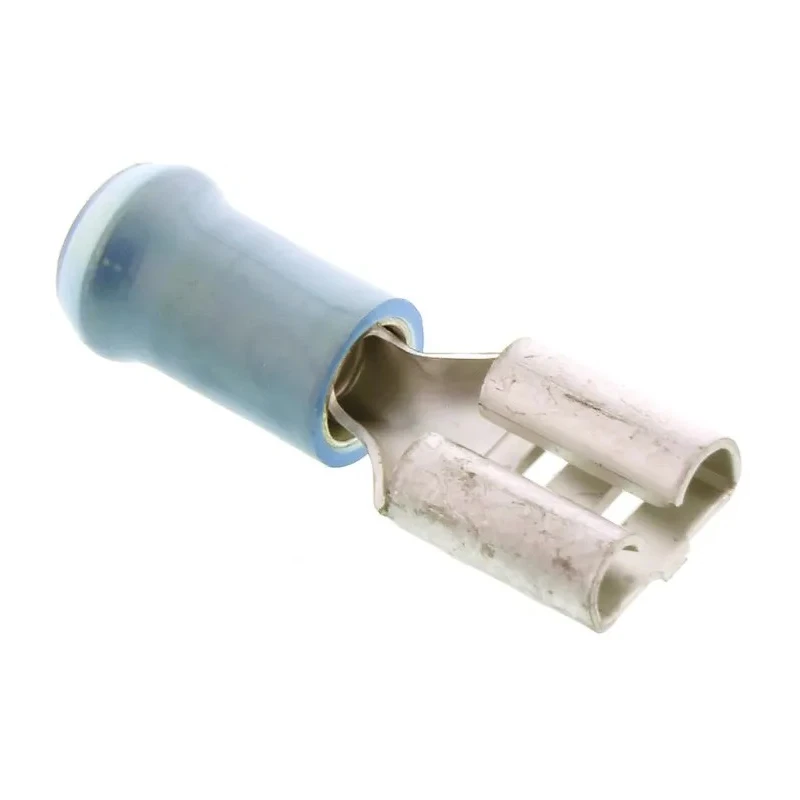

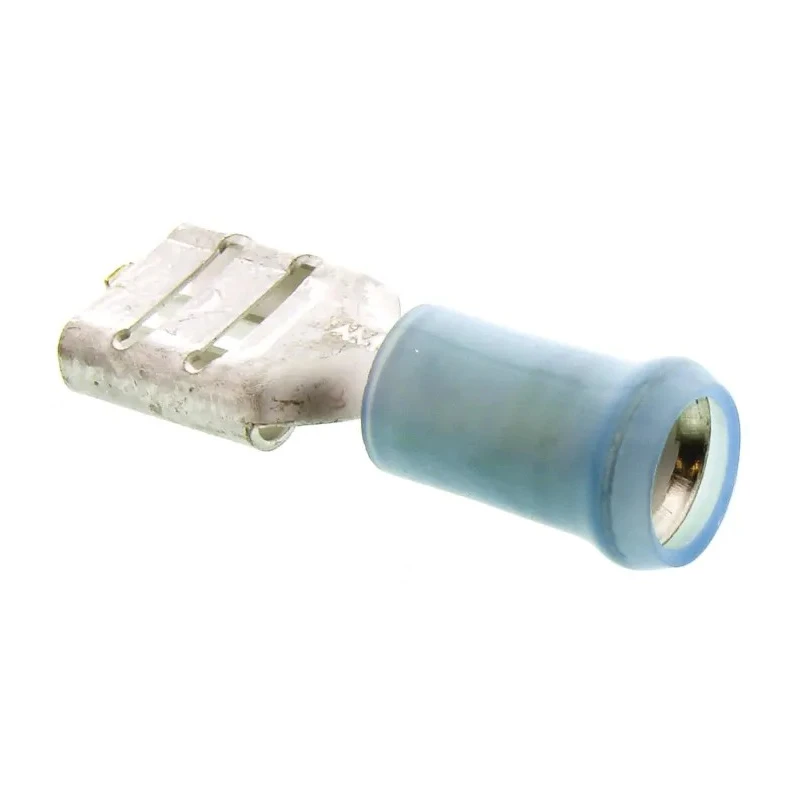

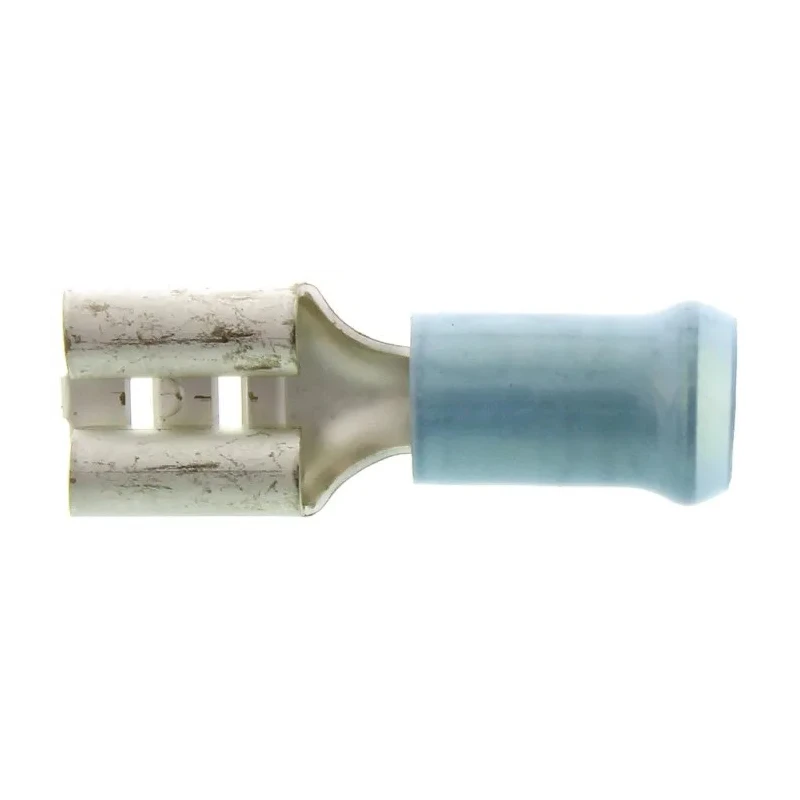

TE Connectivity PIDG FASTON .250 Blue Insulated Female Spade Connector Crimp 6.35 x 0.81 mm Tab Size 17 AWG to 13 9-160313-2
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Blue |
| Orientation | Straight |
| Gender | Female |
| Insulation | Insulated |
| Overall Length | 23.2mm |
| Contact Material | Brass |
| Series | PIDG FASTON .250 |
| Termination Type | Crimp |
| Insulation Material | Nylon |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 1mm² |
| Maximum Wire Size mm² | 2.5mm² |
| Minimum Wire Size AWG | 17AWG |
| Maximum Wire Size AWG | 13AWG |
| Tab Width | 6.35mm |
| Tab Thickness | 0.81mm |
| Tab Size | 6.35 x 0.81 mm |
Key Features
- Constructed with high conductivity brass contact material for reliable electrical connection.
- Features a tin-plated finish to resist corrosion and improve conductivity.
- Insulation made of durable nylon, color coded blue for easy wire gauge identification.
- Serrated wire barrel enhances contact and tensile strength after crimping.
- Designed with funnelled wire entry to facilitate fast and consistent wire insertion.
- Recommended for use in instrumentation, control panels, lighting, power supplies, and automotive applications.
- Compact overall length of 23.2 mm suits tight installation spaces.
- Complies with robust industrial requirements though no formal certifications are listed.
Product Description
TE Connectivity 9-160313-2 PIDG FASTON .250 Blue Insulated Female Spade Connector offers a reliable crimp termination solution designed for wire sizes from 17 AWG to 13 AWG (1mm² to 2.5mm²). The connector features a precision-formed brass contact with tin plating to ensure excellent electrical conductivity and corrosion resistance. The nylon insulation is color coded blue to simplify wire size identification and provides robust mechanical protection.
The PIDG (Pre-Insulated Diamond Grip) design incorporates a copper sleeve around the wire barrel, delivering enhanced insulation support after crimping and allowing for flexible wire bending without damage to conductor or insulation. Serrations inside the wire barrel maximize contact integrity and tensile strength, ensuring a secure, uniform crimp. The funnelled wire entry facilitates quick, reliable wire insertion during high-volume assembly.
This female Spade Connector with its .250 tab size (6.35 x 0.81 mm) and a compact overall length of 23.2 mm is engineered for demanding circuit environments and offers versatility for a broad range of applications including instrumentation, control systems, panel boxes, lighting, power supplies, automotive, aerospace, and general electrical installations. While it does not list formal approvals, it meets or exceeds many industrial performance requirements.
High conductivity brass contact with tin plating ensures excellent electrical performance. Nylon insulation with blue color coding for easy wire gauge identification. Copper sleeve supports wire insulation and allows flexibility after crimp.
Serrated barrel provides strong contact and tensile strength. Funnelled wire entry design for fast wire insertion. Compact length ideal for tight installation spaces. Suitable for diverse industrial and commercial electrical applications.
TE Connectivity is a recognized leader in advanced electronic components and connectors widely used in electronics, manufacturing, and industrial sectors. Explore our extensive range of wire terminals and splices optimized for durability, reliability, and ease of use.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model accommodates wire sizes from 17 AWG to 13 AWG, which corresponds to a cross-sectional area of 1 mm² to 2.5 mm².
The tab size of this spade connector is 6.35 x 0.81 mm.
The contact material is high conductivity brass, which is tin plated to enhance conductivity and resist corrosion.
The overall length of this unit is 23.2 mm, making it suitable for tight installation spaces.
It features nylon insulation, which is color coded blue for easy identification of wire gauge.
The serrated wire barrel maximizes contact integrity and tensile strength after crimping, ensuring a secure connection.
This connector is designed for a variety of applications including instrumentation, control panels, lighting, power supplies, and automotive use.
Yes, it has a funnelled wire entry that facilitates fast and consistent wire insertion, which is beneficial for high-volume assembly.
The tab has a width of 6.35 mm and a thickness of 0.81 mm.
The country of origin for this connector is India.
This model uses a crimp termination type, which is common for secure electrical connections.
While it does not list formal certifications, it meets or exceeds many industrial performance requirements.
