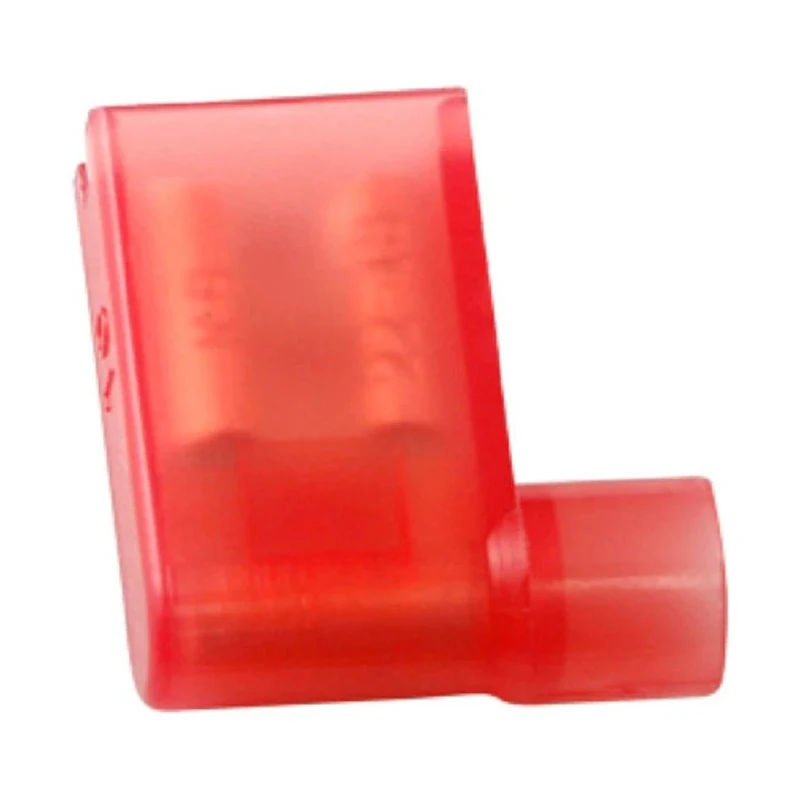

RS PRO Red Insulated Female Spade Connector Crimp 6.35 x 0.8 mm Tab Size 22 AWG to 18 AWG 125-1949
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Colour | Red |
| Orientation | Angled |
| Model | 125-1949 |
| Gender | Female |
| Insulation | Insulated |
| Overall Length | 15.2mm |
| Contact Material | Brass |
| Series | RS PRO |
| Termination Type | Crimp |
| Insulation Material | Nylon |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 0.75mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 18AWG |
| Per Unit, RS stock no | 125-1949 |
| RS stock no | 270-7590 |
| Tab Width | 6.35mm |
| Tab Thickness | 0.8mm |
| Tab Size | 6.35 x 0.8 mm |
Key Features
- Features red nylon insulation for electrical safety and ease of identification.
- Constructed with brass contacts plated in tin for excellent conductivity and corrosion resistance.
- Angled orientation allows installation in tight or hard-to-reach spaces.
- Overall length of 15.2 mm with tab dimensions of 6.35 mm width and 0.8 mm thickness.
- Supports a wire size range from 0.5 mm² to 0.75 mm² for versatile applications.
- Crimp termination provides secure mechanical and electrical connection.
- Suitable for automotive, industrial, and general electrical wiring uses.
- Compact design ensures compatibility in restricted space environments.
Product Description
RS PRO 125-1949 Red Insulated Female Spade Connector is a high-quality crimp-type terminal designed for secure and quick wire connections in various electrical systems. This spade connector features brass contacts with tin plating to provide enhanced electrical conductivity and corrosion resistance, ensuring reliable long-term performance.
The connector is fully insulated with red nylon material, offering electrical insulation that helps prevent accidental shorts and adds a degree of mechanical protection. The insulation also creates a sealed enclosure around the contacts to minimize exposure to liquids and contaminants.
Designed with an angled orientation, this connector facilitates easier access during installation in tight or difficult-to-reach locations. The crimp termination method allows for a strong mechanical and electrical connection with wire sizes ranging from 22 AWG (0.5 mm²) up to 18 AWG (0.75 mm²).
The tab measures 6.35 mm in width and 0.8 mm thick, with an overall connector length of 15.2 mm, providing compatibility with industry-standard mating terminals and connectors.
Commonly used in automotive, industrial machinery, and electrical equipment wiring, this Spade Connector supports efficient and safe electrical connections with clear colour coding for wire gauge indication.
Red nylon insulated for safety and identification. Tin-plated brass contact for excellent conductivity and corrosion resistance. Angled tab orientation for easier installation in confined spaces. Crimp termination suitable for wire sizes from 22 to 18 AWG.
Compact overall length of 15.2 mm with standard tab dimensions. Provides reliable and quick-connect capabilities. Widely used in automotive and industrial electrical applications.
This product originates from Taiwan, Province Of China, ensuring quality manufacturing standards. Ideal for professionals and hobbyists requiring durable and dependable wire terminals.
Explore our extensive selection of terminals and connectors at EnvMart for various industrial and electrical wiring needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports wire sizes ranging from 22 AWG (0.5 mm²) to 18 AWG (0.75 mm²).
The tab measures 6.35 mm in width and 0.8 mm in thickness.
The overall length of this connector is 15.2 mm.
The contacts are made of brass and are plated with tin for enhanced conductivity and corrosion resistance.
It uses a crimp termination method, providing a secure mechanical and electrical connection.
The connector is insulated with red nylon material, which offers electrical insulation and mechanical protection.
The angled orientation facilitates easier access during installation in tight or hard-to-reach locations.
This connector is commonly used in automotive, industrial machinery, and general electrical wiring applications.
It features a red colour coding for easy identification of wire gauge.
The description does not specify outdoor suitability; it is designed for general electrical wiring and may not be rated for outdoor conditions.
This product originates from Taiwan, Province of China.
This model is a female spade connector.
