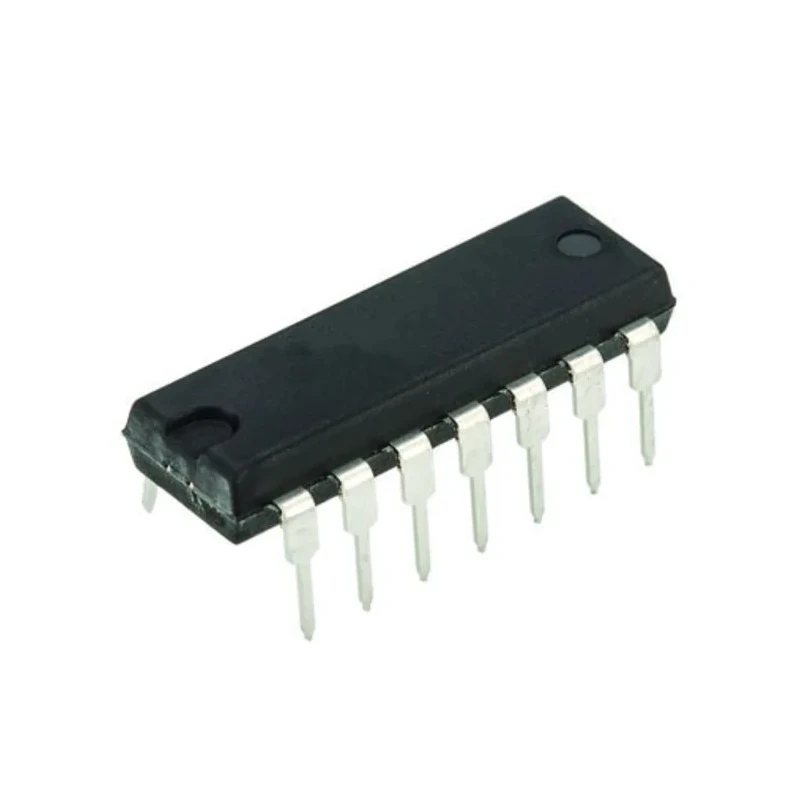

Texas Instruments Operational Amplifier 3 MHz Gain Bandwidth 14-Pin PDIP TL074BCN

Texas Instruments TL074BCN is a high-performance operational amplifier designed with JFET inputs and bipolar outputs, integrating four independent op amps in a 14-pin PDIP package. It features a gain bandwidth product of 3 MHz, allowing for accurate and fast amplification of signals in various electrical and electronic applications.

This quad operational amplifier supports a wide supply voltage range from ±5 V to ±15 V, making it versatile for numerous industrial and commercial uses. With a high slew rate of 13 V/μs, the TL074BCN ensures rapid voltage changes at the output and maintains signal integrity.

The low noise level of 18 nV/√Hz typical at 1 kHz and minimal total harmonic distortion of 0.003% make it ideal for audio processing and precision instrumentation. Its low input offset voltage of 5 mV and low input bias currents contribute to high accuracy and stability in sensitive circuits.

Physical dimensions are compact with a length of 19.3 mm, width of 6.35 mm, and height of 4.57 mm, suitable for dense PCB layouts. The through-hole mount facilitates mechanical robustness and easy assembly in electronic device manufacturing.

The TL074BCN operational amplifier operates reliably within a temperature range of 0°C to 70°C, suitable for a broad range of industrial environments including audio equipment, signal conditioning, control systems, and instrumentation. Its low input offset current of 2 nA supports precision signal amplification with minimal drift.

Packaged in a standard PDIP format, this amplifier is sourced as new from Texas Instruments and meets general quality standards without specific automotive certifications. Features JFET input and bipolar output for low noise and high performance.

Wide voltage supply range from ±5 to ±15 V for flexible application design. High slew rate of 13 V/μs typical for fast transient response. Low total harmonic distortion ensures signal fidelity. Four channels in one package support multi-channel amplification.

Compact and easy through-hole mounting with 14-pin PDIP package. Operating temperature range of 0°C to 70°C suitable for industrial use. Minimal input offset voltage and bias currents for high accuracy.

This operational amplifier is suitable for industrial machines, laboratory instruments, audio processing, signal conditioning, and various electronic controls. It is a reliable choice for design engineers requiring precise and low-noise amplification in their circuits.
