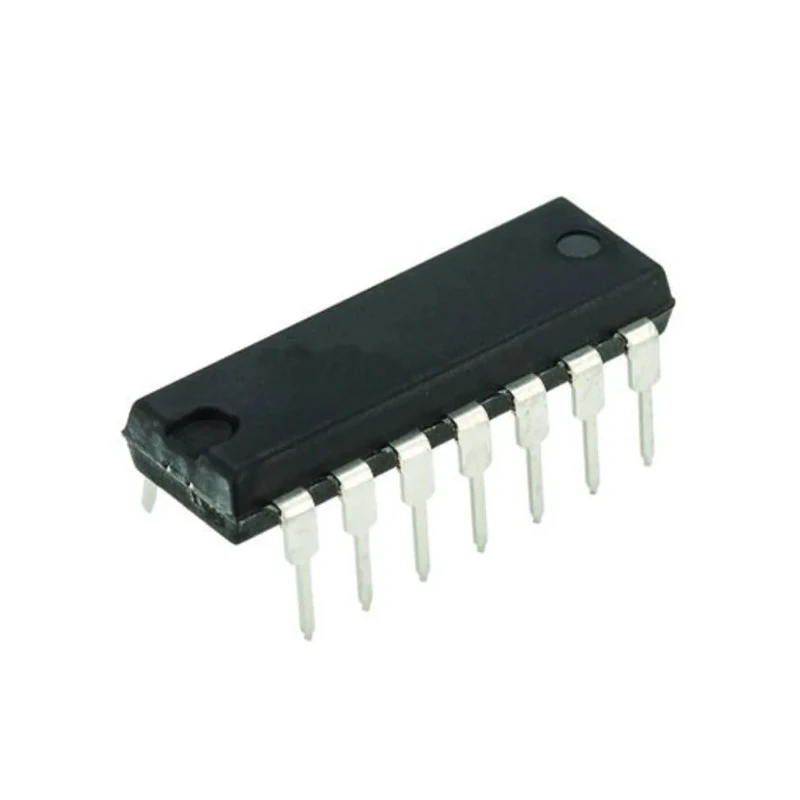

Texas Instruments 3 3-Input OR Logic Gate, 14-Pin PDIP CD4075BE

Texas Instruments CD4075BE is a 3 3-input OR logic gate IC housed in a 14-pin PDIP package, designed for through-hole mounting. It belongs to the 4000 series CMOS logic family, offering reliable and high-speed logic functions with a wide operating voltage range from 3 to 18 volts.

This logic gate IC consists of three independent OR gates, each having three inputs, enabling flexible digital logic circuit design. It provides a maximum propagation delay time of 90 nanoseconds, ensuring fast response and efficient switching in electronic applications.

Designed for durability, the device supports a minimum operating temperature of -55°C and a maximum of 125°C, making it suitable for a wide range of industrial and commercial environments.

The maximum output currents are -4.2 mA for high-level and 4.2 mA for low-level signals, allowing stable logic output interfacing.

Ideal for use in electronic components, power supply systems, and various semiconductor applications, the CD4075BE offers dependable performance with standard pin configuration and mounting type.

Three 3-input OR logic gates included for versatile circuit applications. Wide voltage range of 3 to 18 V for flexible power integration. Speedy CMOS operation with a 90 ns maximum propagation delay. Robust operating temperature range from -55°C to 125°C for industrial use.

Through-hole 14-pin PDIP package for standard PCB implementation. Compatible with 4000 series CMOS logic family for seamless integration. Output currents support stable digital signal driving capabilities.

Widely used in laboratory, industrial, and educational electronics, this logic IC enhances circuit design complexity and efficiency. Explore more related semiconductor Logic Gates and components within EnvMart to complement your system designs.
