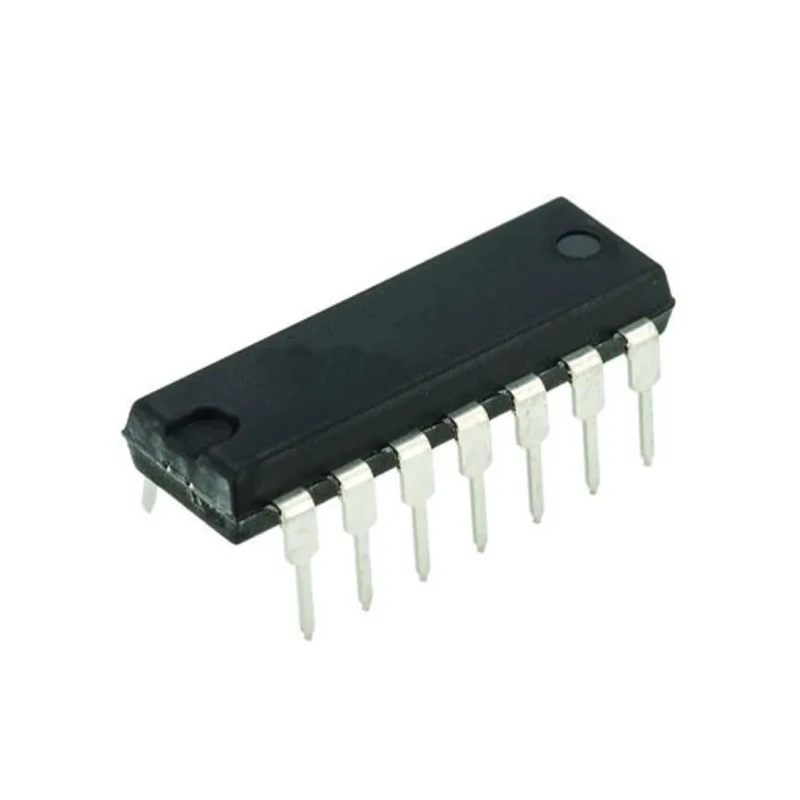

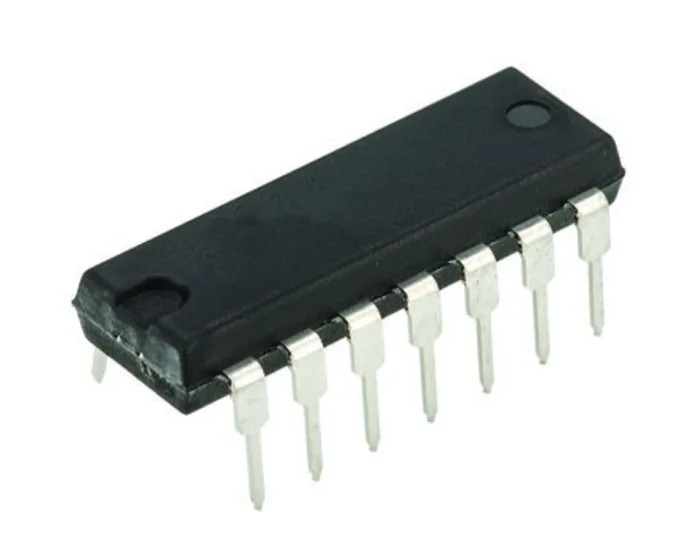

Texas Instruments CMOS Inverter 6 Elements 14-Pin PDIP TTL Input SN74HCT04N

Texas Instruments SN74HCT04N is a CMOS Inverter IC designed for use in electronic circuits requiring TTL compatible logic input and CMOS output. It contains 6 inverter elements within a 14-pin PDIP package, operating reliably with a supply voltage between 4.5V and 5.5V. The device achieves a maximum propagation delay time of 25ns, suitable for high-speed CMOS logic applications.

This inverter IC delivers a maximum high-level output current of -4mA and a maximum low-level output current of 4mA, supporting varied logic requirements. The device is intended for through-hole mounting and features a 14-pin dual in-line package with compact dimensions of 19.3mm length, 6.35mm width, and 4.57mm height.

Operating within the temperature range of -40°C to 85°C, the SN74HCT04N is robust for industrial and commercial electronics applications. It belongs to the HCT logic family, providing compatibility with TTL input signals and CMOS output levels, making it ideal for integration in digital systems, signal inverting, and buffering tasks.

The component is commonly applied in semiconductor circuits for logic inversion, signal conditioning, and digital electronics manufacturing. Though this device does not have special automotive or industrial approvals, its well-established family reputation ensures reliable performance in a variety of environments including laboratory, industrial automation, and embedded systems.

Operates with a supply voltage range of 4.5V to 5.5V. Maximum propagation delay time of 25ns at capacitive load. Maximum high-level output current is -4mA and low-level output current is 4mA. Through-hole mounting with a PDIP 14-pin package.

TTL input compatible and CMOS output logic type. Operating temperature from -40°C to 85°C. Compact package dimensions: 19.3mm x 6.35mm x 4.57mm.

This Texas Instruments SN74HCT04N CMOS Inverter is an essential component for electronic design and manufacturing, widely used for inverter logic functions in semiconductor circuits, microcontroller interfaces, and digital signal processing environments.
