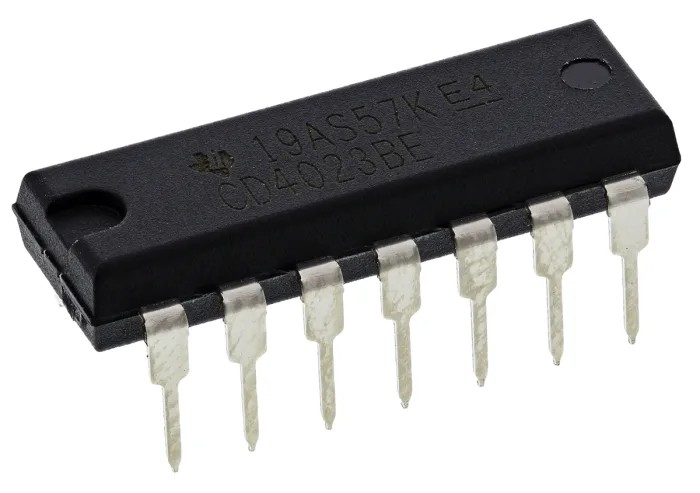

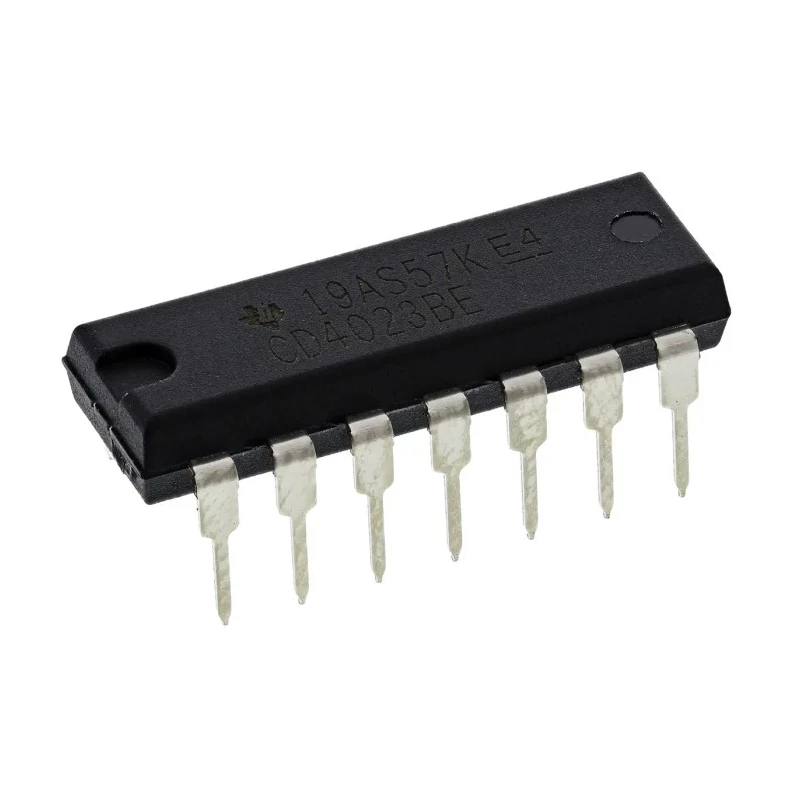

Texas Instruments 3 3-Input NAND Logic Gate, 14-Pin PDIP CD4023BE

Texas Instruments CD4023BE is a 3 3-input NAND logic gate IC in a 14-pin PDIP package designed for versatile digital logic applications. It belongs to the CD4000 series CMOS logic family that provides wide operating voltage flexibility from 3V to 18V and supports a robust temperature range from -55°C to 125°C.

Each IC contains three independent NAND gates with 3 inputs each, delivering reliable logic NAND functionality indispensable in complex digital circuits. The device employs CMOS input technology without Schmitt trigger inputs and has buffered outputs to enhance signal drive capability.

The package’s through-hole mount type and standard 14-pin PDIP form factor allow easy integration into existing PCB designs with conventional sockets or soldering. The maximum propagation delay time of 90 nanoseconds arranges well for moderate speed digital systems.

This logic IC is well-suited for a wide variety of industrial and electronic applications including control systems, embedded systems, and prototype development where reliable NAND gate operations are required at low power consumption.

This device contains three independent 3-input NAND gates. It supports a wide operating voltage range from 3 to 18 volts. The package type is a 14-pin PDIP suitable for through-hole mounting. It operates reliably within a temperature range of -55°C to 125°C.

The logic family is the CD4000 series CMOS technology. Maximum propagation delay is 90 nanoseconds under typical conditions. The input type is CMOS with Schmitt Trigger input not included. The output type is Buffered for improved signal integrity.

Pin count totals 14 pins ensuring compatibility with standard IC sockets. This new device is ideal for digital circuit applications requiring NAND logic gate functionality.
