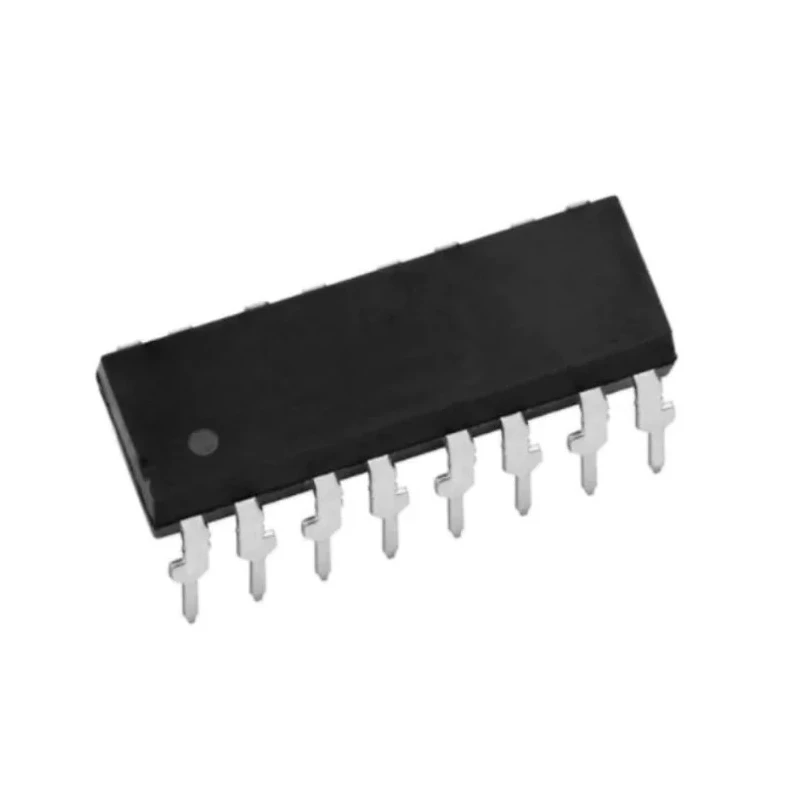

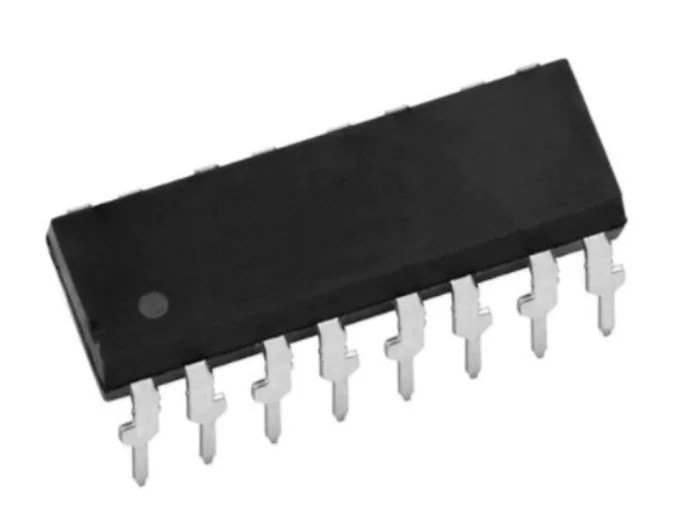

Vishay DC Input 4-Channel Optocoupler Through Hole 16-Pin PDIP ILQ621GB

Vishay ILQ621GB is a DC input, 4-channel optocoupler designed for signal isolation in electronic circuits. It features a 16-pin PDIP through-hole package and provides excellent electrical isolation with a maximum isolation voltage of 5300V AC. This optocoupler is suitable for applications requiring multiple channel isolation such as communications equipment, industrial controls, and power supply monitoring.

The device operates over a wide temperature range from -55°C to 100°C ensuring dependable performance in harsh environments. Each channel offers a typical rise time of 2.8 microseconds and typical fall time of 11 microseconds, allowing fast switching suitable for digital signal processing. The maximum forward voltage of the input LEDs is 1.3V with a maximum input current rating of 60mA.

Vishay ensures compliance with multiple global safety and environmental standards including BSI IEC 60950, DIN EN 60747-5-2 (VDE 0884), DIN EN 60747-5-5, FIMKO, IEC 60065, RoHS 2002/95/EC, UL1577, and WEEE 2002/96/EC. This makes the ILQ621GB optocoupler suitable for use in industrial, commercial, and laboratory electronic devices requiring certified components.

The precise current transfer ratio ranges from 100% minimum to 600% maximum providing design flexibility. The 16-pin PDIP package allows straightforward integration into through-hole printed circuit boards. The product is manufactured in Malaysia.

Features 4 independent optocoupler channels for signal isolation. Supports maximum forward voltage of 1.3V for input LEDs. Typical rise time is 2.8 microseconds ensuring fast switching performance. Isolation voltage of 5300V AC for high-voltage isolation applications.

Operates in temperature range from -55°C to 100°C for reliability. Maximum input current rating is 60mA. Complies with international standards including IEC and RoHS for safety and environment. Package type is standard 16-Pin PDIP suitable for through-hole mounting.

Typical fall time of 11 microseconds for swift signal transitions. Minimum current transfer ratio of 100%, maximum up to 600%.

The Vishay ILQ series optocouplers are widely used in industrial automation, power management, communication systems, and electronic control applications. Explore the range of Vishay Optocouplers and other electronic components on EnvMart for reliable and certified products.
