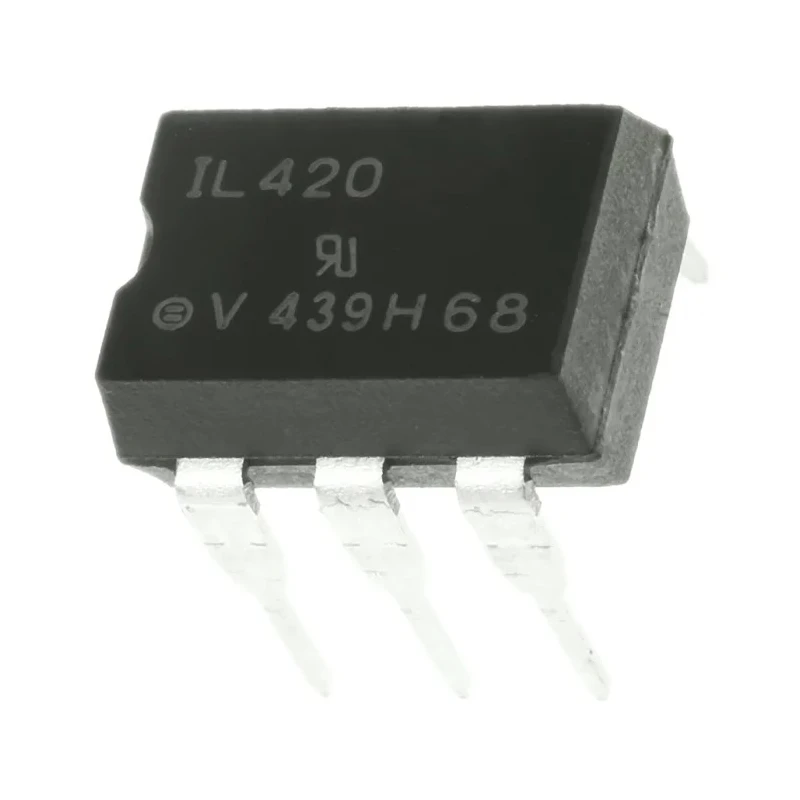

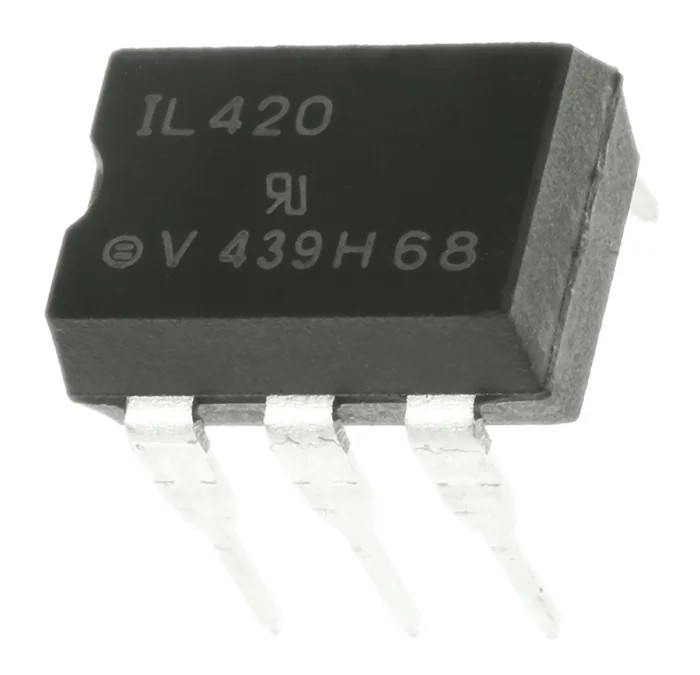

Vishay Optocoupler Through Hole 6-Pin PDIP 1 Channel 5300V AC Isolation IL420
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Vishay |
| Model | IL420 |
| Packaging | Tape & Reel |
| Mount Type | Through Hole |
| Series | IL420 |
| Maximum Operating Temperature | 100°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -55°C |
| Maximum input current | 60mA |
| Number Of Channels | 1 |
| Maximum Forward Voltage | 1.35V |
| Number of Pins | 6 |
| Isolation Voltage | 5300V ac |
Key Features
- Designed for isolating low-voltage logic from high AC voltages.
- Single channel optocoupler with phototriac output.
- Operates over a temperature range of -55°C to 100°C.
- Maximum forward voltage of 1.35V and input current up to 60mA.
- Package type is PDIP, suitable for through-hole mounting.
- Complies with CSA 93751, CQC GB8898-2001, DIN EN 60747-5-5 (VDE 0884), and UL1577 standards.
- Manufactured in Malaysia ensuring international quality standards.
Product Description
Vishay IL420 is a high-performance optocoupler featuring a through hole 6-pin PDIP package and phototriac output configuration designed to isolate low-voltage logic from high AC voltages up to 5300V AC.
This single-channel optocoupler is capable of controlling resistive, inductive, or capacitive loads including motors, high current thyristors or triacs, solenoids, and relays, making it suitable for various industrial and commercial applications.
Operating temperature ranges from -55°C to 100°C, making it resilient for harsh environments. It has a maximum forward voltage of 1.35V and supports an input current of up to 60mA.
The package type is PDIP, which caters to through-hole mounting, simplifying incorporation into existing circuit boards.
The IL420 series meets multiple international standards including CSA 93751, CQC GB8898-2001, DIN EN 60747-5-5 (VDE 0884), and UL1577, ensuring reliability and compliance for industrial usage.
This optocoupler is ideal for applications in industrial controls, solid-state relays, lighting controls, consumer appliances, and office equipment, providing electrical isolation with excellent performance.
Designed for isolating low-voltage control circuits from high AC voltage lines. Provides phototriac output suitable for switching AC loads. High isolation voltage of 5300V AC protects sensitive electronics. Reliable operation in a wide temperature range from -55°C to 100°C.
Compliant with major safety and performance standards for broad industrial acceptance. Available in 6-pin PDIP through-hole package for ease of assembly. Manufactured in Malaysia to stringent quality standards. Explore Vishay Optocouplers and other components in the Electronics & Electricals category on EnvMart for your industrial and electronic assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum isolation voltage of this optocoupler is 5300V AC, providing effective protection for sensitive electronics.
This model operates within a temperature range of -55°C to 100°C, making it suitable for harsh environments.
The maximum input current supported by this optocoupler is 60mA, allowing for versatile application in various circuits.
The package type of the IL420 is PDIP, which is designed for through-hole mounting.
This optocoupler features a single channel, making it suitable for specific isolation tasks in circuits.
The maximum forward voltage for this optocoupler is 1.35V, which is critical for its operation in low-voltage applications.
The IL420 complies with several international standards including CSA 93751, CQC GB8898-2001, DIN EN 60747-5-5 (VDE 0884), and UL1577.
It can control resistive, inductive, or capacitive loads, including motors, high current thyristors, triacs, solenoids, and relays.
The IL420 has 6 pins, which are standard for its PDIP package configuration.
This optocoupler is suitable for through-hole mounting, making it easy to integrate into existing circuit boards.
The IL420 is manufactured in Malaysia, adhering to international quality standards.
It is intended for applications in industrial controls, solid-state relays, lighting controls, consumer appliances, and office equipment.
