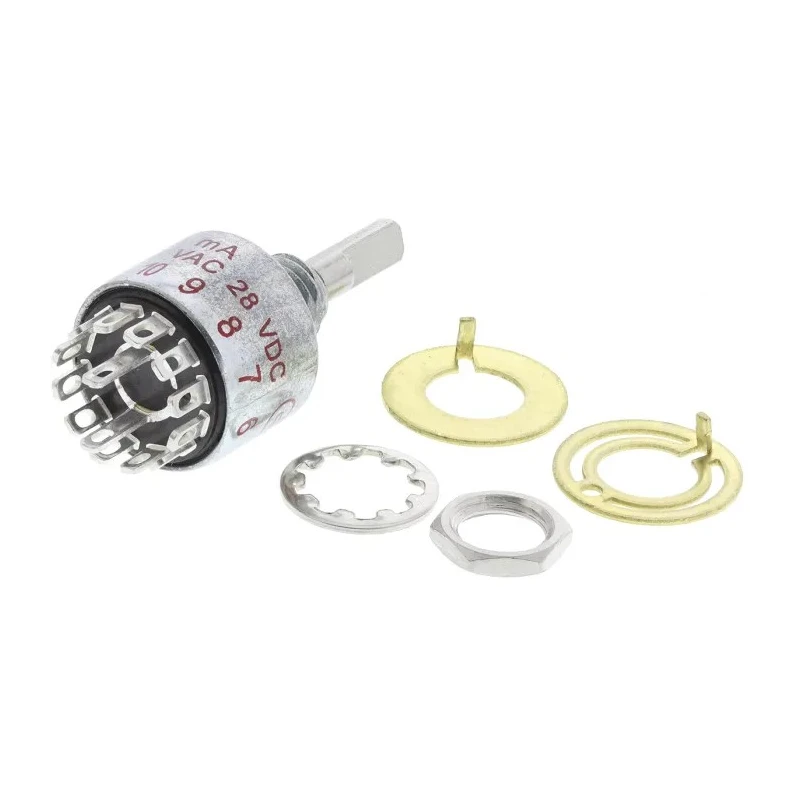

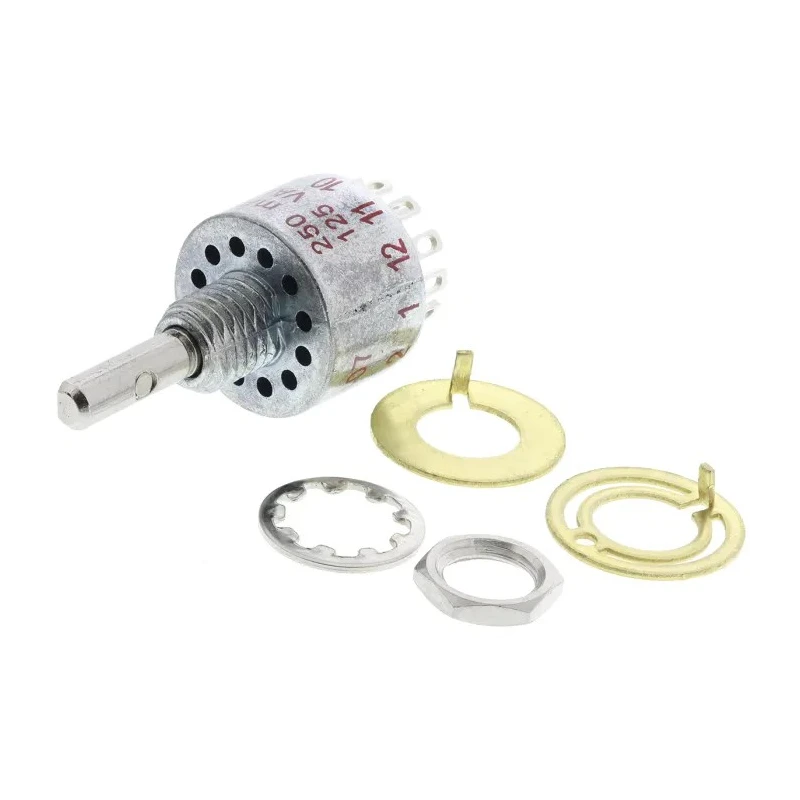

C & K M Series 6 Position DPST Rotary Switch 250mA, Zinc Alloy Housing, Panel Mount MH00L1NZQD

C & K MH00L1NZQD is a high-quality M Series 6 Position DPST Rotary Switch designed for reliable electrical switching in industrial, test, and medical equipment applications. The zinc alloy housing provides enhanced strength and durability, coupled with an IP67 rating making it resistant to dust and water ingress.

This panel mount rotary switch features double pole, single throw configuration, suitable for controlling two circuits simultaneously. The 30° indexing with six selectable positions offers precise operation and ease of use for switching requirements in WAN, LAN, and other electrical systems.

Engineered for durability, it includes a silver stainless steel actuator that resists corrosion and maintains aesthetic quality. The switch terminals are designed for solder connections to ensure robust and lasting electrical contact, ideal for secure soldering in manufacturing or repair contexts.

Key electrical parameters include a maximum switching current of 250mA, maximum AC voltage rating of 125V, and maximum DC voltage of 80V, meeting typical requirements for signal switching and low current load circuits.

The device operates reliably within a temperature range of -30°C to 85°C and has a mechanical endurance of 10,000 cycles, guaranteeing long service life in demanding environments. The compact dimensions with a 6.6mm diameter and 31.37mm height facilitate easy panel integration, supported by a Ø6.35mm panel cut-out and a 3.17mm shaft diameter.

The switch’s zinc alloy housing provides robustness and IP67 protection. Six position indexing with 30° increments ensures accurate control. Double pole, single throw design enables two-circuit switching. Maximum current of 250mA suitable for signal-level switching.

Solder terminals provide secure and reliable electrical connections. Operating temperature range of -30°C to 85°C suits industrial conditions. Durability ensured by a mechanical life of 10,000 cycles. Compact form factor supports diverse application uses.

This rotary switch is suitable for use in industrial automation, test equipment, communications devices, and medical instruments. Its robust construction and environmental resistance make it an excellent choice for reliable switching in harsh conditions.
