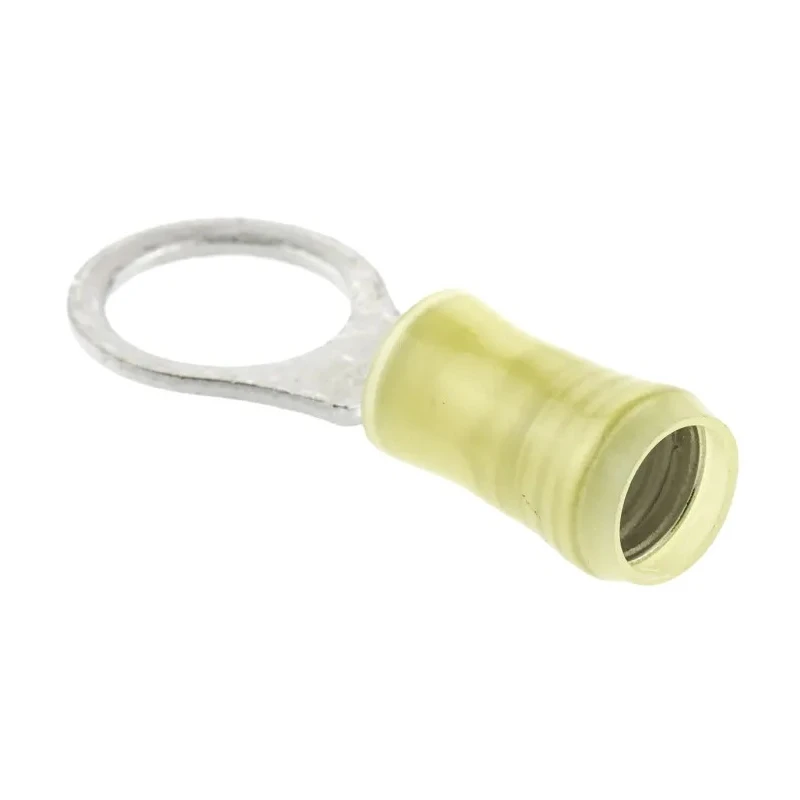

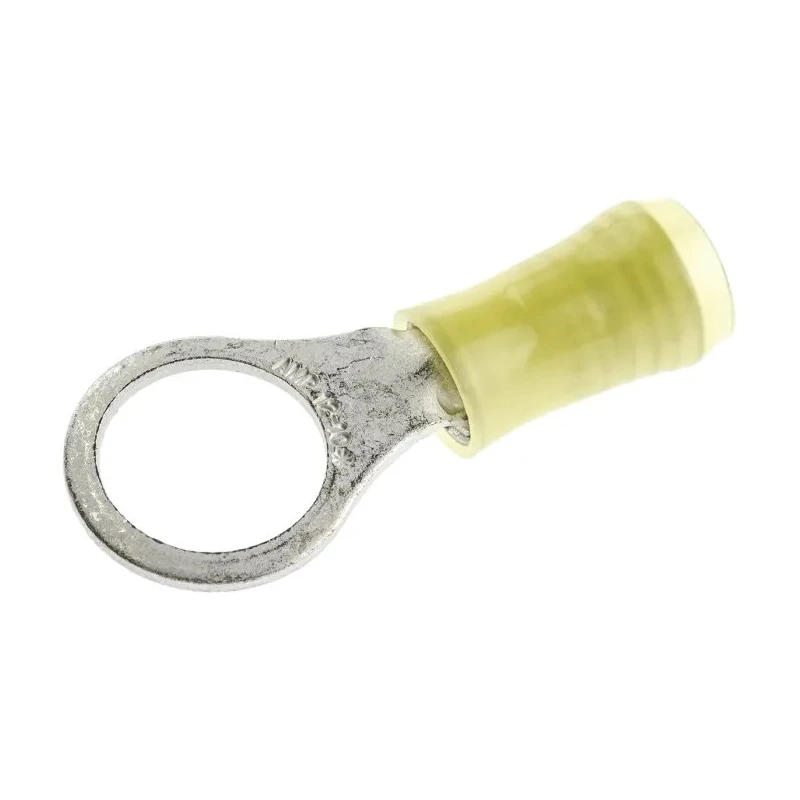

TE Connectivity PIDG Insulated Ring Terminal M10 Stud Size 12 AWG to 10 AWG Wire Size, Yellow 130207

TE Connectivity 130207 PIDG Insulated Ring Terminal is designed for dependable and uniform electrical connections in a variety of industrial and commercial applications. This M10 stud sized Ring Terminal supports wire sizes from 12 AWG to 10 AWG, featuring a yellow insulated nylon sleeve that assists with wire size identification and provides mechanical protection.

The terminal body is made from high conductivity copper, ensuring excellent electrical flow and reliability. The copper sleeve improves wire insulation support and helps prevent wire fraying. Serrations inside the wire barrel offer maximum contact and tensile strength upon crimping, enhancing the mechanical and electrical integrity of the connection.

The product measures 33.1mm in overall length, with a 1mm thickness and an inner ring diameter of 10.3mm, compatible with M10 stud bolts. It is suitable for wire cross sections ranging from 2.6mm² to 6.6mm². The design and materials allow operations up to a maximum temperature of 105°C.

These terminals are widely used in instrumentation, lighting, power supplies, panel boxes, transportation, lifting equipment, motors, aerospace, and appliance wiring, meeting or exceeding requirements for high reliability environments.

High conductivity copper body for excellent electrical performance. Copper sleeve enhances wire insulation support and prevents fraying. Serrated wire barrel ensures maximum contact and tensile strength after crimping. Colour-coded yellow nylon sleeve aids wire size identification.

Funnelled wire entry enables fast and easy wire insertion during production. Supports wire sizes from 12 AWG to 10 AWG (2.6mm² to 6.6mm²). Compatible with M10 stud size with inner ring diameter of 10.3mm. Maximum operating temperature of 105°C.
