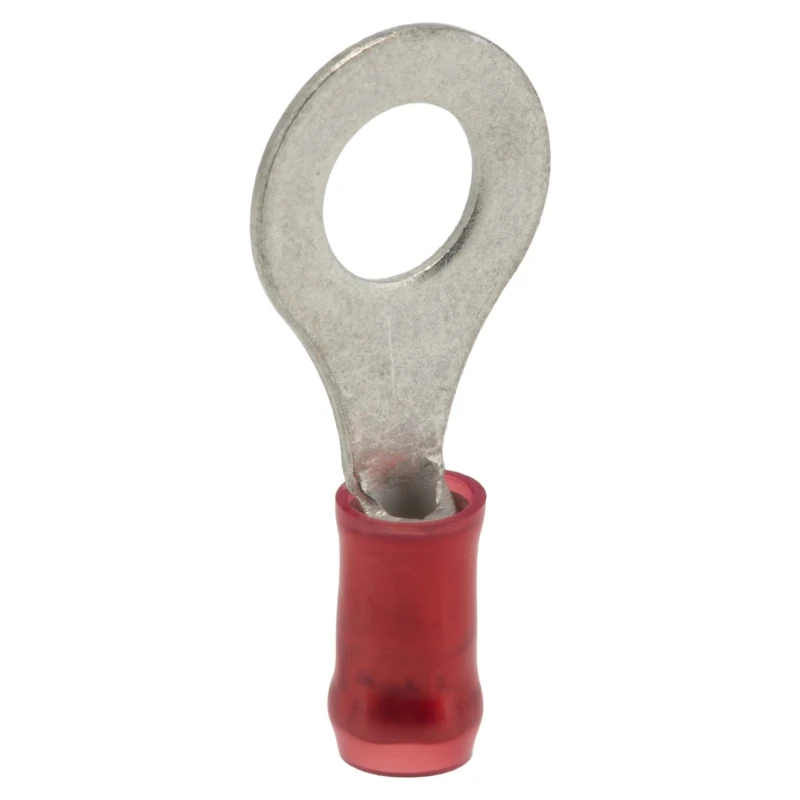

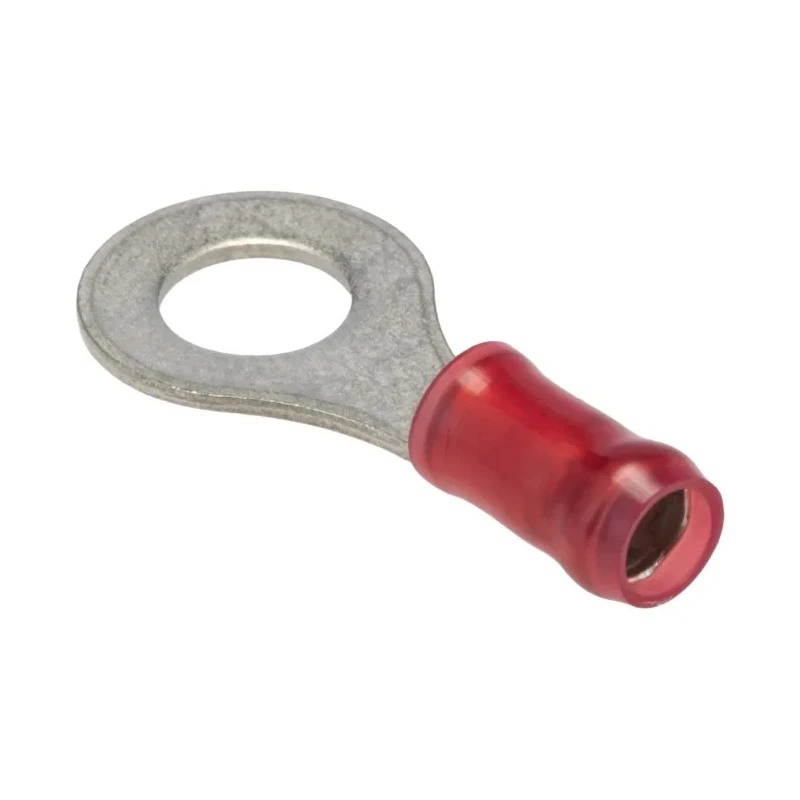

TE Connectivity PIDG Insulated Ring Terminal M6 Stud Size 22 AWG to 16 AWG Wire Size Red 130046
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | TE Connectivity |
| Colour | Red |
| THICKNESS | 0.79mm |
| Model | 130046 |
| Insulation | Insulated |
| Overall Length | 27.5mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.26mm² |
| Maximum Wire Size mm² | 1.65mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Outer Ring Diameter | 11.91mm |
| Inner Ring Diameter | 6.35mm |
| Stud Size | M6 |
| RS PRO Insulated Ring Terminal, M6 Stud Size 22 AWG 16 AWG Wire Size, RedBrand | RS PRO |
Key Features
- Constructed with high conductivity copper body for optimal electrical performance.
- Features a copper sleeve around the barrel to improve wire insulation support and prevent fraying.
- Includes serrations in the barrel for maximum contact and tensile strength after crimping.
- Red nylon insulating sleeve provides easy wire size identification and tooling compatibility.
- Funnelled wire entry design ensures quick and reliable wire insertion during production.
- Rated for maximum operating temperature up to 105°C for robust thermal stability.
- Suitable for various applications including instrumentation, power supplies, panel boxes, motors, and aerospace uses.
- Complies with reliable industrial standards though no specific certifications mentioned.
Product Description
TE Connectivity 130046 PIDG Insulated Ring Terminal is a high-quality electrical connector designed for secure and efficient wire connections within industrial, electronic, and electrical applications.
The terminal features a precision-formed high conductivity copper body and barrel with serrations inside to ensure maximum contact and tensile strength after crimping, making it durable in demanding circuit environments.
A copper sleeve surrounding the wire barrel offers enhanced wire insulation support and prevents fraying, while the outer red nylon sleeve enables quick identification of wire size and tooling compatibility.
The funnelled entry design prevents wire strands from turning back, facilitating fast and reliable wire insertion, critical for high-speed production processes.
This ring terminal supports wire sizes ranging from 22 AWG to 16 AWG and fits an M6 stud size, with an outer ring diameter of 11.91mm and an overall length of 27.5mm, making it suitable for a wide range of electrical wiring tasks.
It is rated for a maximum operating temperature of 105°C, ensuring stable performance under thermal stress.
Typical applications include instruments, control systems, lighting equipment, power supplies, panel boxes, transportation machinery, lifting equipment, motors, aerospace systems, and household appliances.
Constructed with high conductivity copper body for optimal electrical performance. Features a copper sleeve for enhanced wire insulation support and prevention of wire fraying. Serrated barrel design ensures maximum contact and tensile strength after crimping.
Color-coded red nylon insulation sleeve provides easy wire size identification. Funnelled entry streamlines wire insertion for high-speed production environments. Supports wire sizes 22 AWG to 16 AWG and M6 stud size. Rated for a maximum operating temperature of 105°C.
Manufactured in Hungary to meet quality standards. Compact dimensions with 11.91mm outer ring diameter and 27.5mm overall length.
TE Connectivity PIDG terminals are engineered for demanding electrical applications requiring secure and reliable wire connections with consistent performance. Explore more Ring Terminals and power connectors with EnvMart’s comprehensive electronics components catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is rated at 105°C, ensuring stable performance under thermal stress.
This terminal supports wire sizes ranging from 22 AWG to 16 AWG, accommodating various electrical wiring tasks.
The stud size for this model is M6, making it suitable for specific mounting applications.
It features a high conductivity copper body and a nylon insulation sleeve, with a tin plating on the contact.
The outer ring diameter is 11.91mm, and the overall length is 27.5mm, allowing for compact installations.
The funnelled wire entry design facilitates quick and reliable wire insertion, which is critical for high-speed production processes.
The serrations in the barrel ensure maximum contact and tensile strength after crimping, enhancing the reliability of the connection.
This terminal is manufactured in Hungary, adhering to quality standards for electrical components.
Typical applications include instrumentation, power supplies, panel boxes, motors, and aerospace systems.
The insulation material used is nylon, which provides easy wire size identification and tooling compatibility.
The contact material is copper, which ensures optimal electrical performance in connections.
Key features include a high conductivity copper body, nylon insulation, a funnelled wire entry design, and a maximum operating temperature of 105°C.
