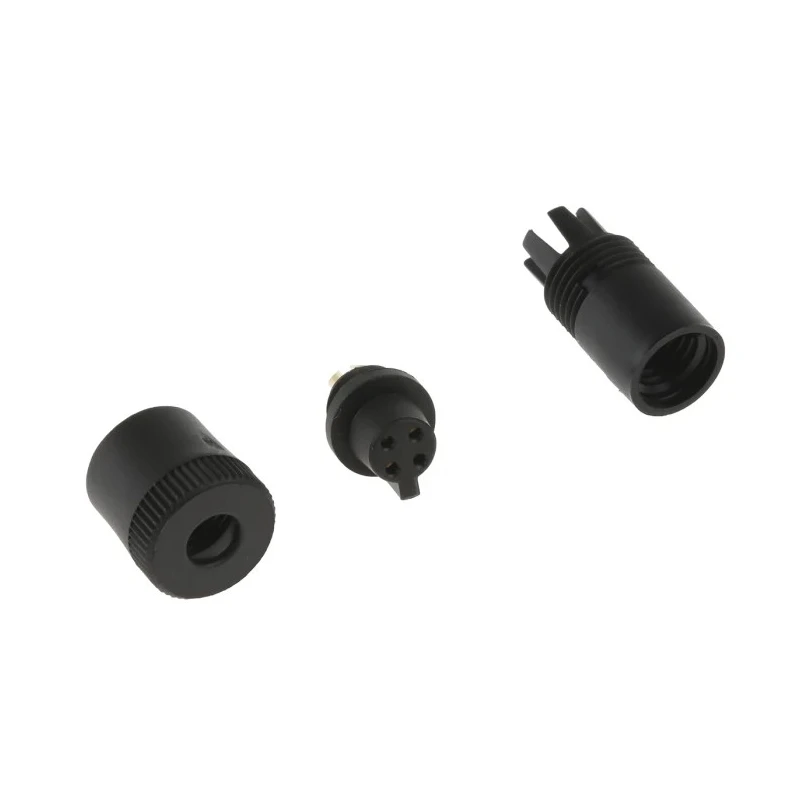

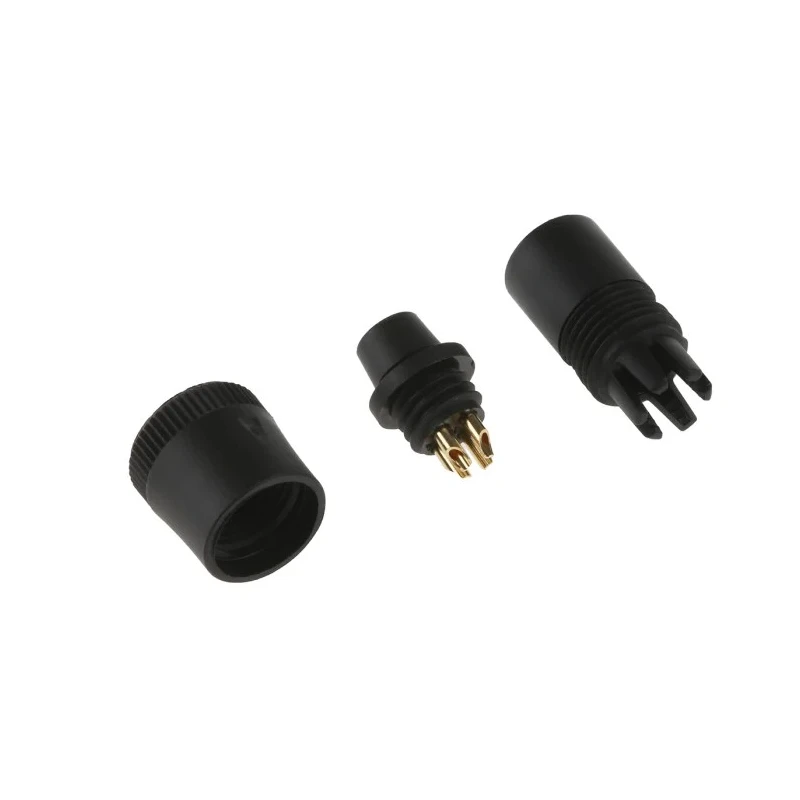

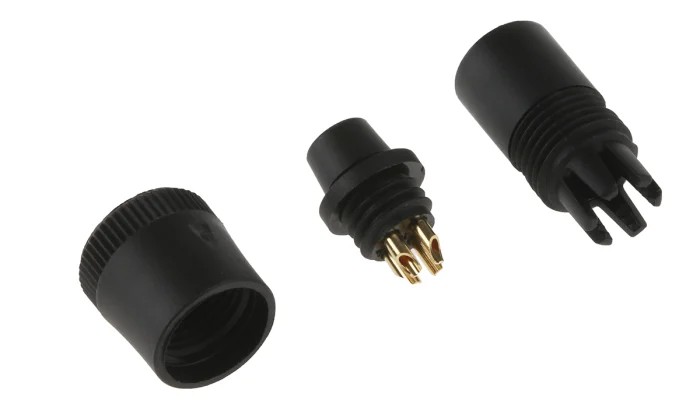

binder Circular Connector Subminiature 4 Contacts Cable Socket Female IP40 60V 3A Polyamide Housing 09-9764-70-04
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 60V |
| Brand | binder |
| Orientation | Straight |
| Current | 3A |
| IP Rating | IP40 |
| Mount Type | Cable |
| Housing Material | Polyamide |
| Contact Material | Brass |
| Series | 719 |
| Termination Type | Solder |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -25°C |
| Pole Format | 4 |
| Contact Plating | Gold |
| Number of Contacts | 4 |
| Contact Gender | Female |
| Shell Size | 8 mm |
| Mating Type | Plug-In |
| Connector Size | Subminiature |
| Plug/Socket | Socket |
Key Features
- Features four gold-plated bronze contacts for enhanced conductivity and reduced resistance.
- Constructed with a polyamide housing providing chemical and mechanical stability.
- Rated IP40 ingress protection suitable for indoor dust and particle exclusion.
- Compatible with cable mount and solder termination for secure conductor attachment.
- Offers operation in a temperature range from -25°C to 70°C for industrial environment compatibility.
- Uses a snap-in plug-in mating mechanism for quick and tool-free connection and disconnection.
- Has an 8 mm shell size and straight orientation for subminiature form factor applications.
- Ideal for sensor and actuator cabling in automation and control panels.
Product Description
binder 09-9764-70-04 Circular Connector Subminiature Cable Socket Female delivers a compact, robust interface for multi-conductor signal and low power connections in industrial applications. Rated for 3A current and 60V voltage, this connector ensures reliable electrical contact through gold-plated bronze contacts and a polyamide housing with IP40 protection, suitable for indoor environments requiring dust and particle exclusion.
Designed for cable mounting, this connector features solder termination for secure conductor attachment. Its snap-in mating mechanism allows for fast, tool-free engagement and disengagement, supporting a straight orientation layout with a four-contact pole format in an 8 mm shell size.
Operating efficiently between -25°C and 70°C, the connector suits industrial automation panels, control cabinets, and electro-mechanical assemblies, including sensor and actuator wiring and motor controls. It is well-suited for handheld test leads in laboratory bench equipment as well.
Four gold-plated bronze contacts offer excellent conductivity and low resistance. Polyamide housing delivers chemical resistance and mechanical stability. IP40 rating provides protection against indoor dust and particles.
Solder termination ensures a strong, lasting connection to conductors. Snap-in mating enables quick, tool-free connector engagement. Subminiature 8 mm shell size accommodates tight spaces and compact designs. Wide temperature range (-25°C to 70°C) for reliable industrial performance.
Ideal for sensor, actuator, motor controller, and wiring harness applications.
This binder circular connector is manufactured in Germany under the 719 Series and is a dependable choice for industrial, laboratory, manufacturing, HVAC, and automation environments requiring compact, multi-contact cable connectors. Explore additional binder products and connector solutions within the Industrial Circular Connectors category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this connector is 60V.
This model has a current rating of 3A.
It has an IP40 ingress protection rating, suitable for indoor dust and particle exclusion.
The housing is made of polyamide, and the contacts are gold-plated bronze.
It operates efficiently between -25°C and 70°C.
This connector features four contacts.
It uses solder termination for secure conductor attachment.
The shell size is 8 mm, suitable for compact applications.
It features a snap-in plug-in mating mechanism for quick and tool-free connection and disconnection.
It is ideal for sensor and actuator cabling in automation and control panels, as well as for handheld test leads in laboratory equipment.
This connector is manufactured in Germany.
The connector has a straight orientation.
