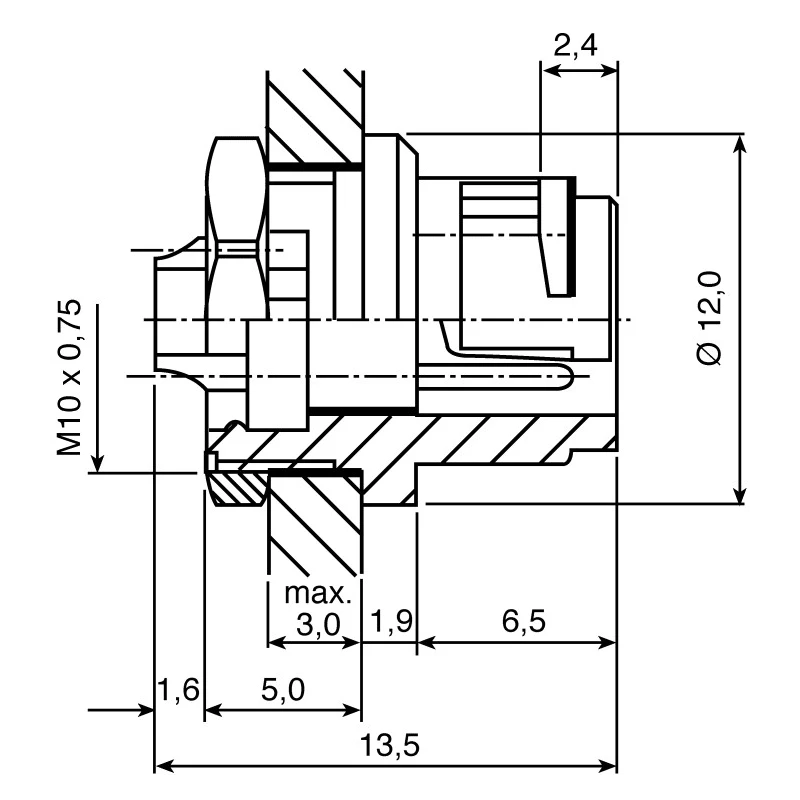

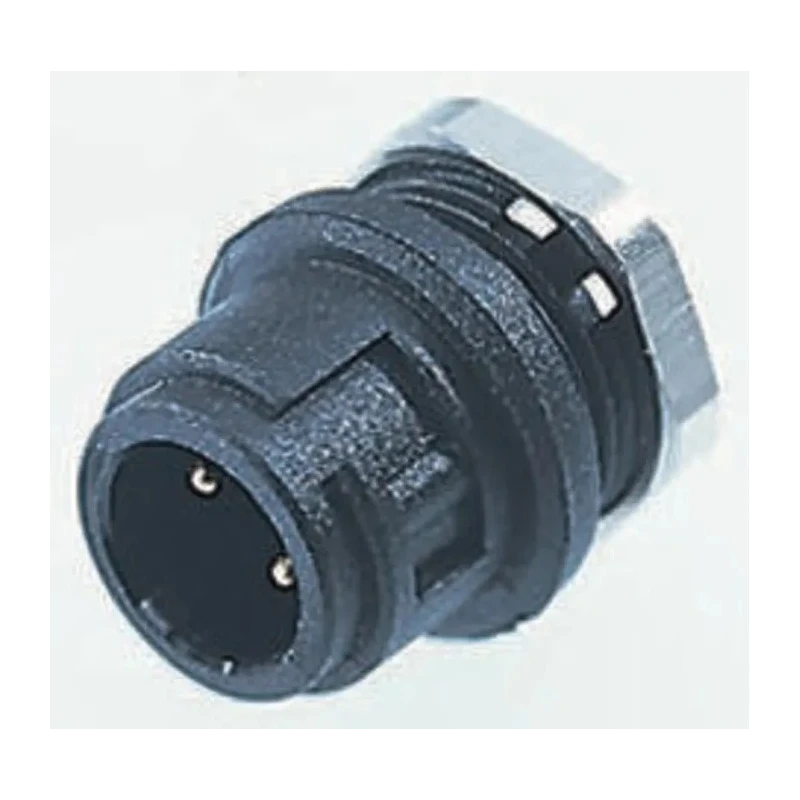

binder Circular Connector Subminiature Panel Mount 4 Contacts Plug Male IP40 710 Series 09-0981-00-04
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 125V |
| Brand | binder |
| Orientation | Straight |
| Current | 3A |
| IP Rating | IP40 |
| Mount Type | Panel Mount |
| Housing Material | Metal |
| Contact Material | Brass |
| Series | 710 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Contact Plating | Gold |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Shell Size | 10 mm |
| Mating Type | Bayonet |
| Connector Size | Subminiature |
| Plug/Socket | Plug |
Key Features
- Features a 4-contact subminiature circular design for compact industrial connectivity.
- Panel mount type with a bayonet mating system ensuring secure and quick connection.
- Supports a current rating of 3A and voltage rating up to 125V.
- Constructed with metal housing and gold-plated brass contacts for durability and reliable conductivity.
- Operates reliably between -40°C and 85°C temperature range suitable for harsh environments.
- Termination is via solder method providing secure electrical connection.
- Shell size is 10 mm with straight orientation enhancing installation flexibility.
- Protection complies with IP40 ensuring protection against solid objects larger than 1 mm.
Product Description
binder 09-0981-00-04 Circular Connector is a subminiature, panel mount plug from the 710 Series. It is designed with 4 gold-plated brass contacts arranged in a straight orientation and housed in a robust metal shell measuring 10 mm in diameter. This industrial-grade connector is engineered to operate reliably at voltages up to 125V and currents up to 3A, making it suitable for various electronic and power connection applications.
The connector features a bayonet mating type that enables quick and secure coupling. It provides an IP40 ingress protection rating when mated, effectively protecting against solid foreign objects larger than 1 mm. The solder termination offers durable and stable electrical connections necessary for demanding industrial environments.
The operating temperature range from -40°C to 85°C ensures reliable performance in extreme climate conditions. The coding lug incorporated in its design guarantees secure and distortion-free positioning during installation, complemented by strain relief provided by the ferrule.
Made in Germany, this connector does not carry additional certifications but adheres to industrial quality standards. It is ideal for use in electronics components, power, and connector systems requiring compact, reliable interfaces.
Subminiature circular design with 4 contacts ensures compactness and reliability. Panel mount with bayonet mating facilitates easy installation and secure connection. Gold-plated brass contacts ensure corrosion resistance and excellent conductivity.
Operates efficiently in temperature extremes -40°C to 85°C for industrial applications. IP40 protection class provides reliable protection against dust penetration. Robust metal housing shell size 10 mm supports durability and longevity.
Solder termination type ensures secure and stable electrical contact. Manufactured in Germany maintaining high quality and workmanship.
This binder circular connector suits industrial, manufacturing, laboratory, and electronic power connector needs. Its subminiature size and robust design enable versatile panel-mount applications. For more high-quality circular connectors, explore the Industrial Circular Connectors category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of 3A and a voltage rating of up to 125V.
It operates reliably within a temperature range of -40°C to 85°C, making it suitable for harsh environments.
This connector uses a solder termination type, providing a secure electrical connection.
The connector has an IP40 ingress protection rating, which protects against solid objects larger than 1 mm.
The shell size is 10 mm in diameter, which supports its subminiature design.
It features 4 contacts made of gold-plated brass, ensuring reliable conductivity.
It utilizes a bayonet mating type, allowing for quick and secure coupling.
This model is suitable for various electronic and power connection applications, particularly in industrial settings.
The connector is designed with a straight orientation, enhancing installation flexibility.
It is manufactured in Germany, adhering to industrial quality standards.
The housing is constructed from metal, providing durability and reliable performance.
This model features a male contact gender.
