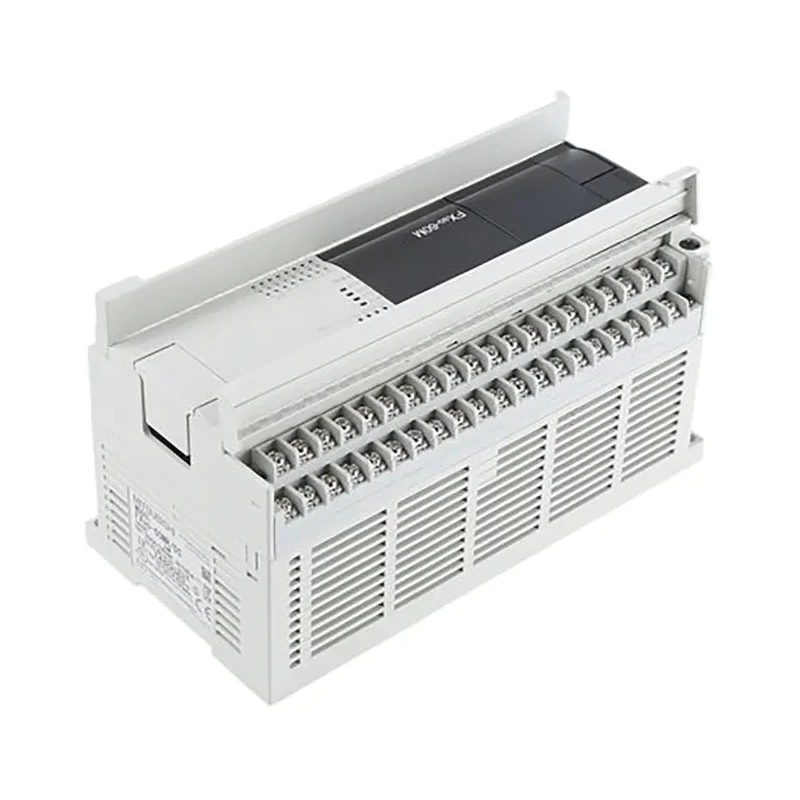

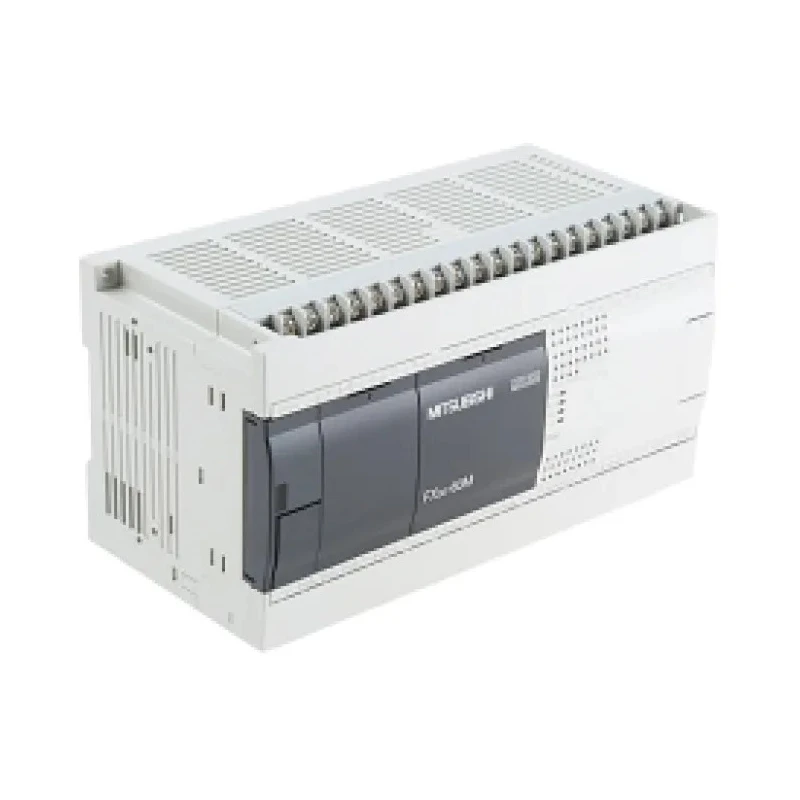

Mitsubishi Electric FX3G Series Logic Module 36 Inputs Sink Input 24 Transistor Outputs

Mitsubishi Electric FX3G-60MT/DSS Logic Module is part of the FX3G series of compact programmable logic controllers designed to combine performance and affordability. This logic module features 36 sink inputs and 24 transistor outputs suitable for controlling a wide range of industrial automation processes.

The FX3G can be used as a direct replacement for FX1N PLCs offering enhanced program capacity with 32,000 steps and compatibility with FX2N and FX3U expansion modules, including FX3U-ADP modules. The module is programmed using ladder logic, a widely accepted programming language in industrial automation.

Equipped with communication ports RS232C, RS422, and RS485, the FX3G supports flexible network integration with other automation devices or supervisory controllers. The built-in display provides operational feedback, and battery backup ensures program retention during power interruptions.

Designed for DIN rail mounting, the compact unit dimensions of 175mm length, 90mm width, and 86mm depth enable efficient panel space utilization. The device operates reliably within a temperature range of 0°C to 50°C and supports a DC supply voltage of 12 to 24V.

This logic module is ideal for use in industrial automation, manufacturing, process control, material handling, and HVAC systems requiring dependable programmable control modules. Its standards approvals include CE, cUL, and UL certifying compliance with international safety requirements.

The module provides 36 sink-type inputs supporting complex input control. It features 24 transistor outputs for reliable and fast switching. With DIN rail mounting, installation is convenient in industrial panels. Supports multiple communication protocols via RS232C, RS422, and RS485 ports.

The FX3G series uses ladder logic programming for efficient automation development. Battery backup is included ensuring program retention during power interruptions. Compact dimensions of 175mm length, 90mm width, and 86mm depth facilitate flexible installation.

Operating temperature range from 0°C to 50°C makes it suitable for typical industrial environments. The unit supports a supply voltage of 12 to 24V DC to adapt to various power system standards. Output current rating is up to 800mA providing sufficient power for connected devices.
