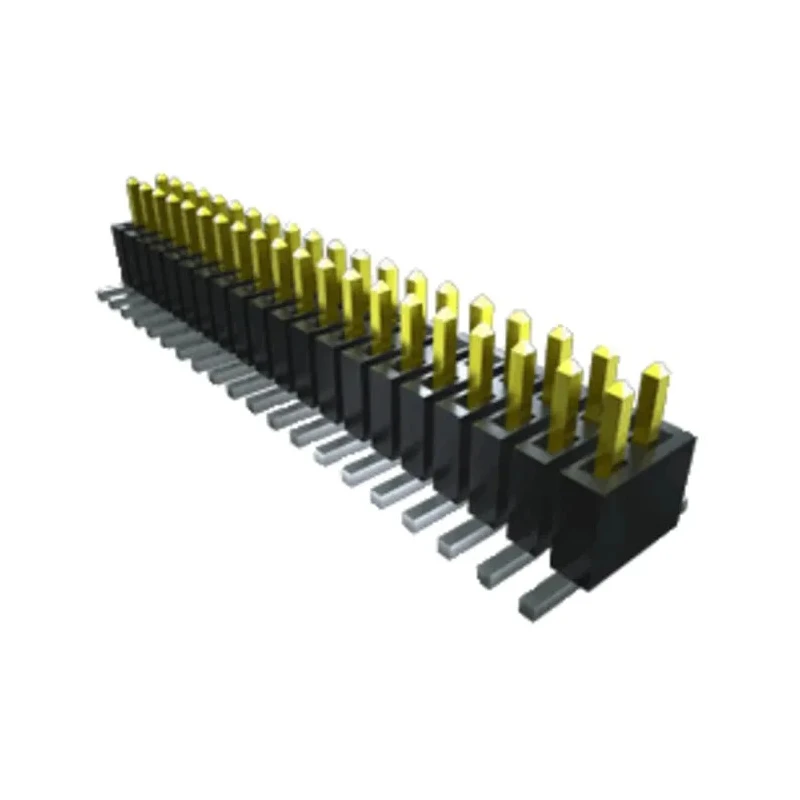

Samtec FTSH Series Straight Surface Pin Header, 26 Contacts, 1.27 mm Pitch, 2 Row, Unshrouded FTSH-113-01-L-D-K

Free Delivery in India | Lowest Global Shipping Charges

Samtec FTSH Series Straight Surface Pin Header, 26 Contacts, 1.27 mm Pitch, 2 Row, Unshrouded FTSH-113-01-L-D-K

Name: Samtec FTSH Series Straight Surface Pin Header, 26 Contacts, 1.27 mm Pitch, 2 Row, Unshrouded FTSH-113-01-L-D-K
Brand: Samtec
SKU: 215990
Price: 6.08 USD
Availability: InStock



Category PCB Headers Brand Samtec Condition New

Specifications

Country of Origin	India
Brand	Samtec
Orientation	Straight
Current	3.4A
Model	FTSH-113-01-L-D-K
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	FTSH
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	1.27mm
Contact Plating	Gold
Number of Contacts	26
Contact Gender	Male
Shrouded/Unshrouded	Unshrouded
Connector System	Board-to-Board, Wire-to-Board

Key Features

Features 26 gold-plated phosphor bronze male contacts for excellent conductivity.
Constructed with liquid crystal polymer housing for high durability.
Designed for surface mount with a 1.27 mm pitch and 2-row configuration.
Supports up to 3.4A current with operating temperatures from -55°C to 125°C.
Unshrouded design allows easy connectivity and solder termination.
Suitable for board-to-board and wire-to-board connector applications.
Extended Life Product™ with 10-year Mixed Flowing Gas resistance and high mating cycles.
Offers multiple post heights and vertical or horizontal orientations.

Product Description

Samtec FTSH-113-01-L-D-K Straight Surface Pin Header is a high-quality connector designed for electronic applications requiring robust and reliable PCB connections. Featuring 26 gold-plated phosphor bronze male contacts, this component offers excellent conductivity and durability. Its liquid crystal polymer housing ensures high performance in demanding environments.

This pin header has a 1.27 mm pitch with a 2-row, unshrouded configuration suitable for surface mounting, allowing for solder termination. Supporting a current rating of 3.4A and operating temperatures ranging from -55°C to 125°C, it meets various industrial and electronic requirements.

As an Extended Life Product™, it withstands harsh environments, providing resistance to Mixed Flowing Gas (MFG) for 10 years and achieving high mating cycles from 250 to 2,500 cycles. Various options include different post heights, vertical or horizontal orientations, polarization, keying, and available end shrouds or ejector shrouds for alignment or blind mating.

The unshrouded design facilitates easy connections and integration in board-to-board and wire-to-board systems. A cost-saving flash gold plating is available, enhancing connector life and reliability.

Features 26 gold-plated male contacts for optimal electrical performance. Liquid crystal polymer housing ensures durability and stability. Surface mount with a 1.27 mm pitch and 2-row layout for versatile applications. Rated for 3.4A current and wide operating temperature range (-55°C to 125°C).

Extended Life Product™ designation guarantees high reliability and longevity. Multiple configuration options for post height, orientation, and shrouding. Suitable for industrial, electronics manufacturing, communications, and laboratory uses.

This product is ideal for integration into industrial and commercial electronic assemblies requiring dependable electrical connections and durability. Explore more PCB Headers and connectors at EnvMart to suit diverse project requirements.
