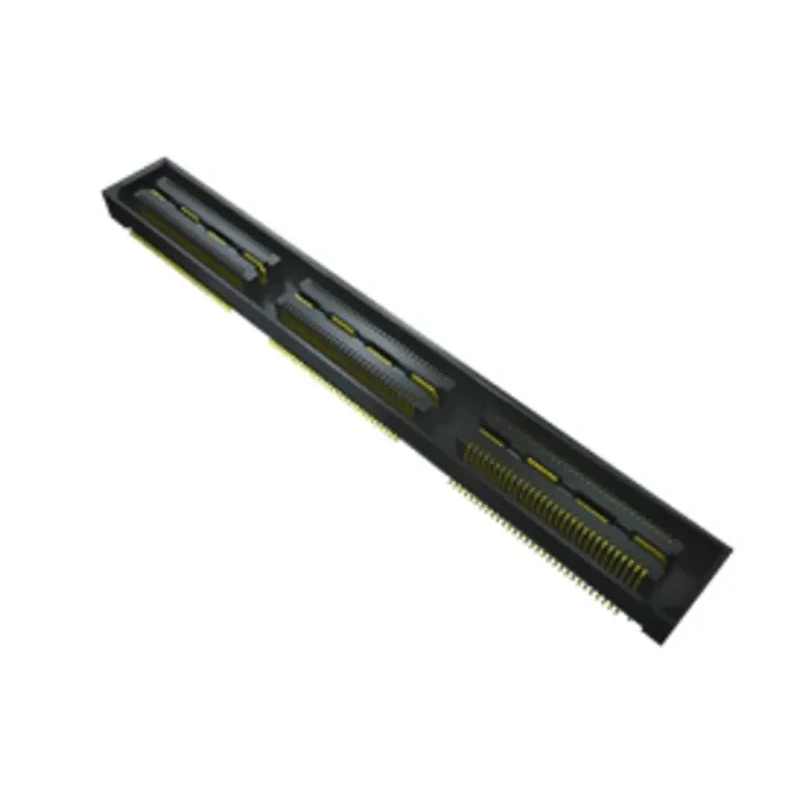

Samtec QSH Series Straight Surface PCB Socket 180-Contact 2 Row 0.5 mm Pitch Solder QSH-090-01-F-D-A-K

Samtec QSH-090-01-F-D-A-K is a high-performance PCB socket designed for surface mounting applications requiring dense board-to-board connectors. This 180-contact socket is arranged in a 2-row configuration with a 0.5 mm pitch, providing precise alignment and compact form factor for advanced electronics designs.

The socket features a housing made from liquid crystal polymer, ensuring thermal stability and mechanical robustness across a wide operating temperature range from -55°C to 125°C. Its bronze contacts are plated with gold, offering excellent conductivity and corrosion resistance for long-term reliability.

With a current rating of 25A and voltage capacity of 175V, this PCB socket supports demanding power and signal requirements. The 5 mm stacking height enables a low-profile assembly, ideal for space-constrained applications in telecommunications, computing equipment, and industrial electronics.

Designed for high-speed data transmission, it supports frequencies up to 9.5 GHz and data rates reaching 19 Gbps, making it suitable for high-speed differential pair communications. The straight orientation and solder termination type facilitate secure board-to-board connectivity within complex electrical systems.

This product is part of Samtec's QSH Series, known for precision and quality in connector technology. It does not carry specific certifications or approvals but meets general industrial usage standards for electronics components.

The socket features 180 contacts arranged in 2 rows for high density board-to-board connections. Supports a current rating of 25A and a voltage of 175V for robust electrical performance. Housing material is liquid crystal polymer with bronze contacts plated in gold.

Pitch is 0.5 mm with a stacking height of 5 mm for compact design. Operational temperature range from -55°C to 125°C ensures reliability in harsh environments. Straight orientation with solder termination for secure and stable mounting.

Designed for high-speed applications up to 9.5 GHz and 19 Gbps data rates. Suitable for board-to-board connector systems in telecom, computing, and industrial electronics. No specific standards or approvals declared for this socket model.
