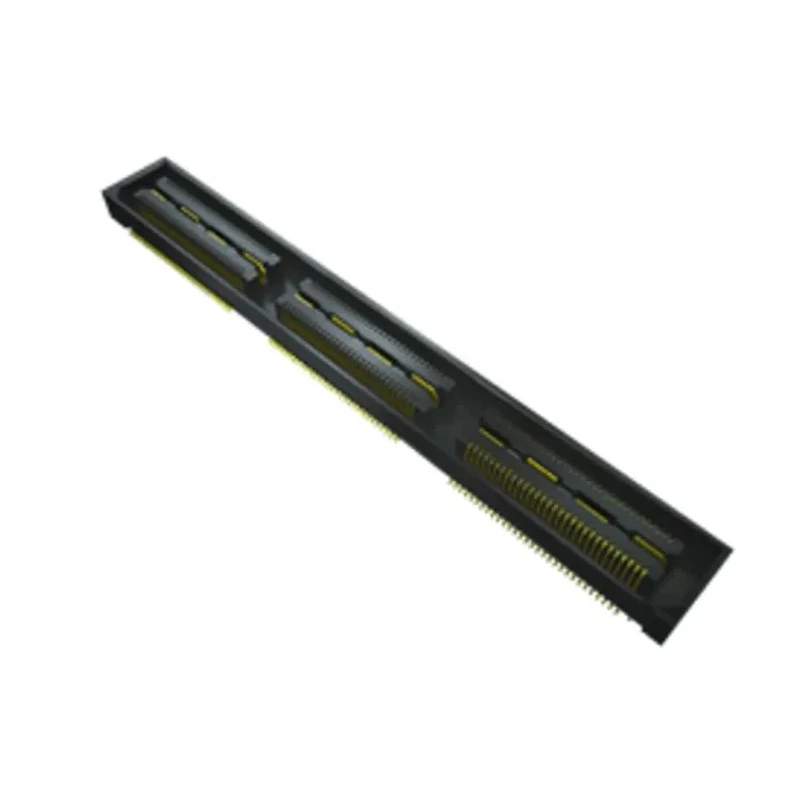

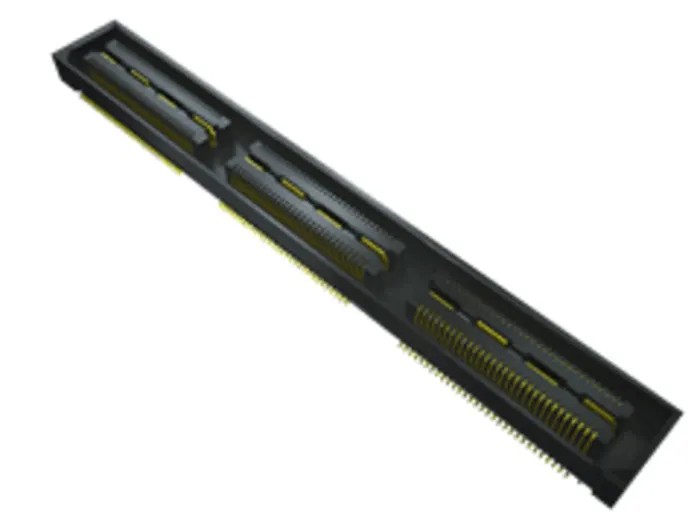

Samtec QSH Series Straight Surface PCB Socket, 60-Contact, 2 Row, 0.5 mm Pitch, 25A, 175V, 5mm Stack Height QSH-030-01-F-D-A

Samtec QSH-030-01-F-D-A is a high-performance straight surface PCB socket engineered for board-to-board applications requiring compact, reliable connections. It features 60 contacts arranged in 2 rows with a fine 0.5 mm pitch, supporting currents up to 25A and voltages up to 175V.

The socket employs a low profile 5 mm stacking height, ideal for dense circuit designs. Constructed with a Liquid Crystal Polymer housing, it ensures mechanical strength and thermal stability across a wide operating temperature range from -55°C to 125°C.

Contacts made of bronze with gold plating provide excellent electrical performance and corrosion resistance, maintaining signal integrity in demanding industrial environments. The QSH series design supports a high density of differential pairs with data rates reaching 19 Gbps, making it suitable for high-speed electronic communication and signal integrity applications.

Its surface mount type and straight orientation facilitate easy integration into board-to-board systems, commonly used in communications, industrial control, electronic manufacturing, and laboratory equipment. The product's design supports innovative electronic assembly processes with reliable mechanical and electrical performance.

This PCB socket offers a low 5 mm stacking height suited for compact electronic assemblies. Its housing is made from Liquid Crystal Polymer providing high durability and stability. Contacts are bronze with gold plating, ensuring excellent conductivity and corrosion resistance.

Operates reliably in temperatures ranging from -55°C to 125°C, for various industrial environments. The socket follows the QSH series design offering up to 80 differential pairs and data rates up to 19 Gbps. Mount type is surface mount with a straight orientation, ideal for board-to-board connector systems.

This Samtec PCB socket is ideal for electronics manufacturing, automation systems, communication devices, industrial and commercial electronic assemblies, and high-speed data transfer applications.
