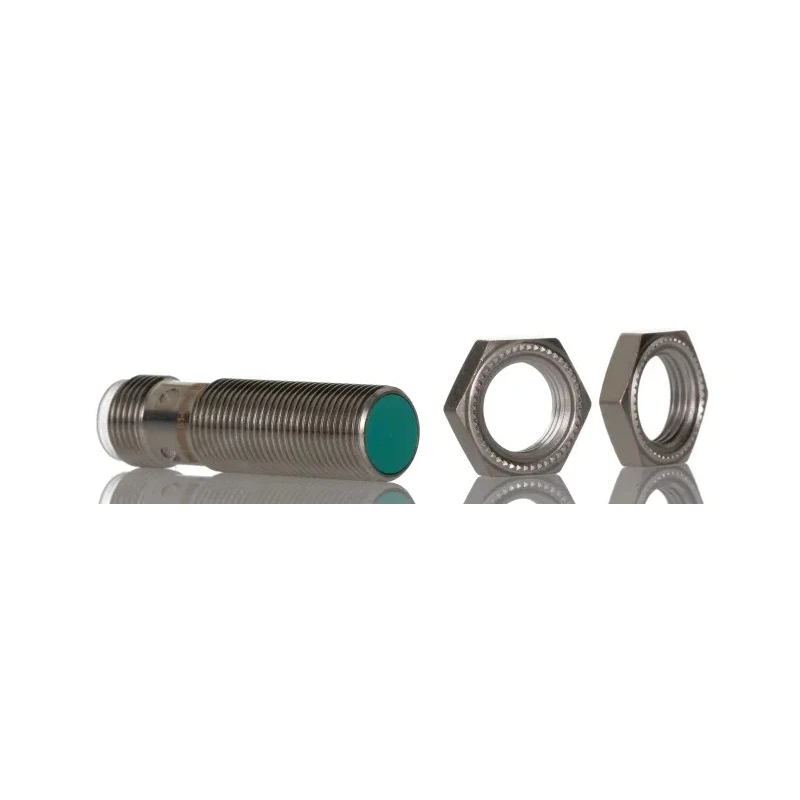

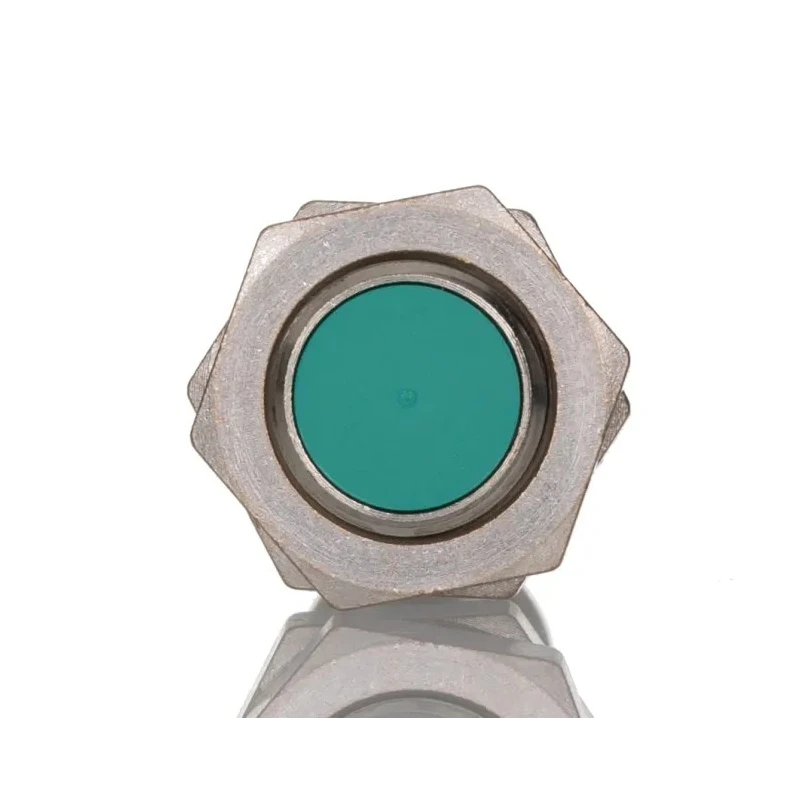

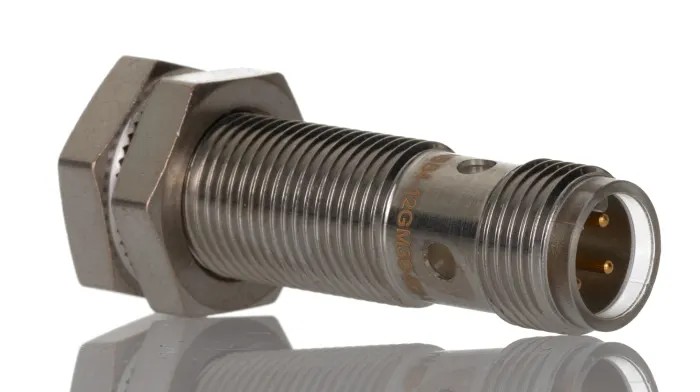

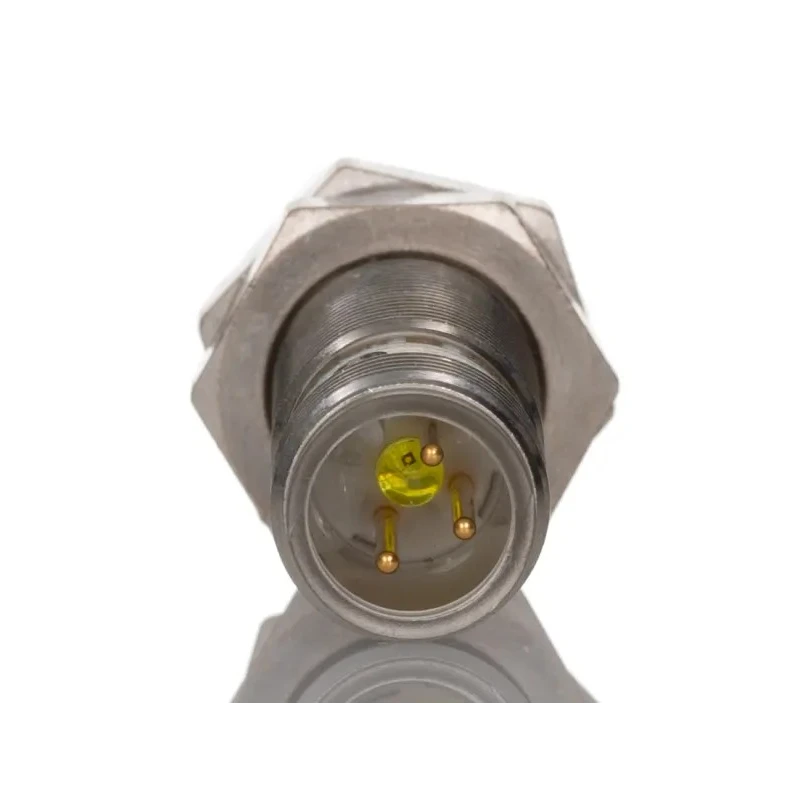

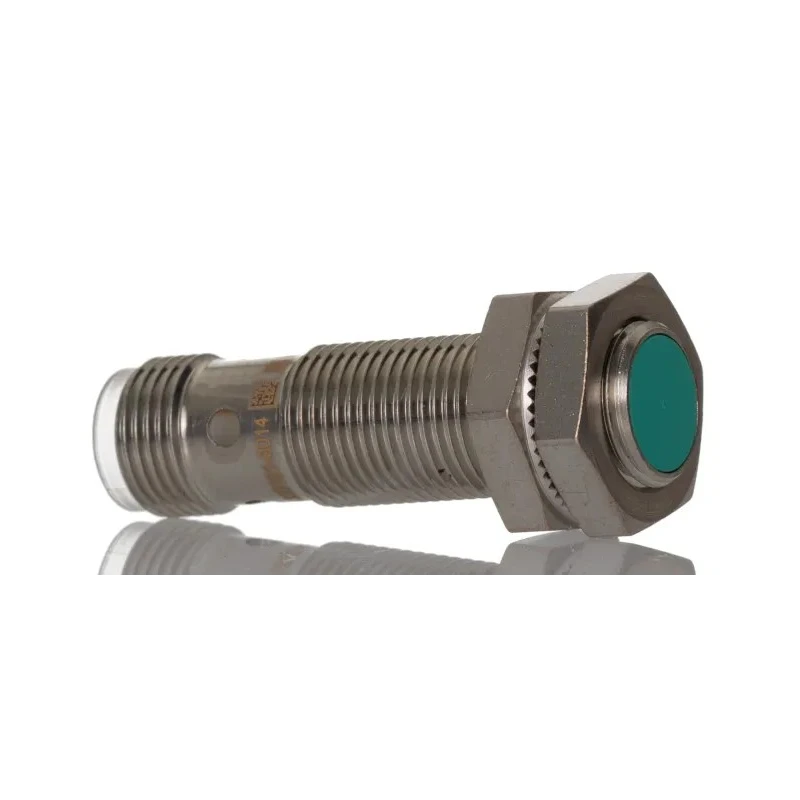

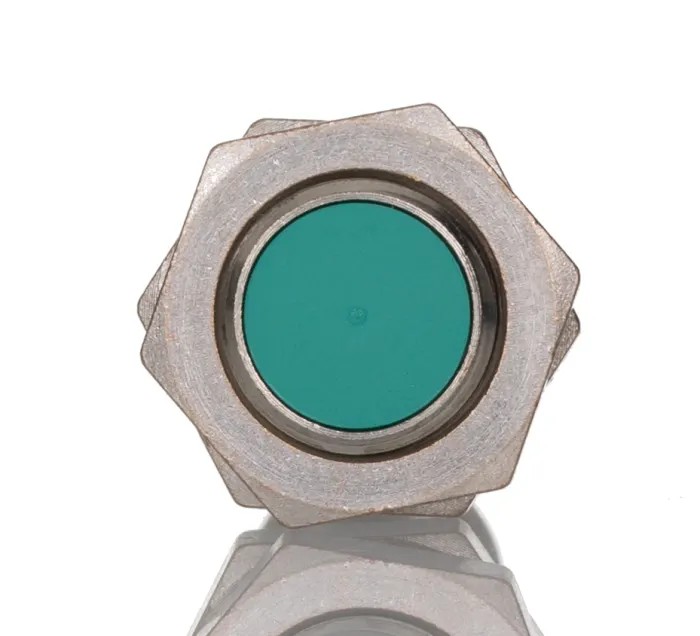

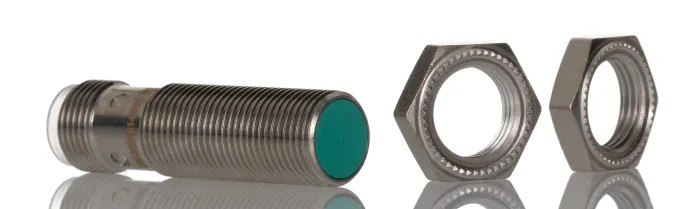

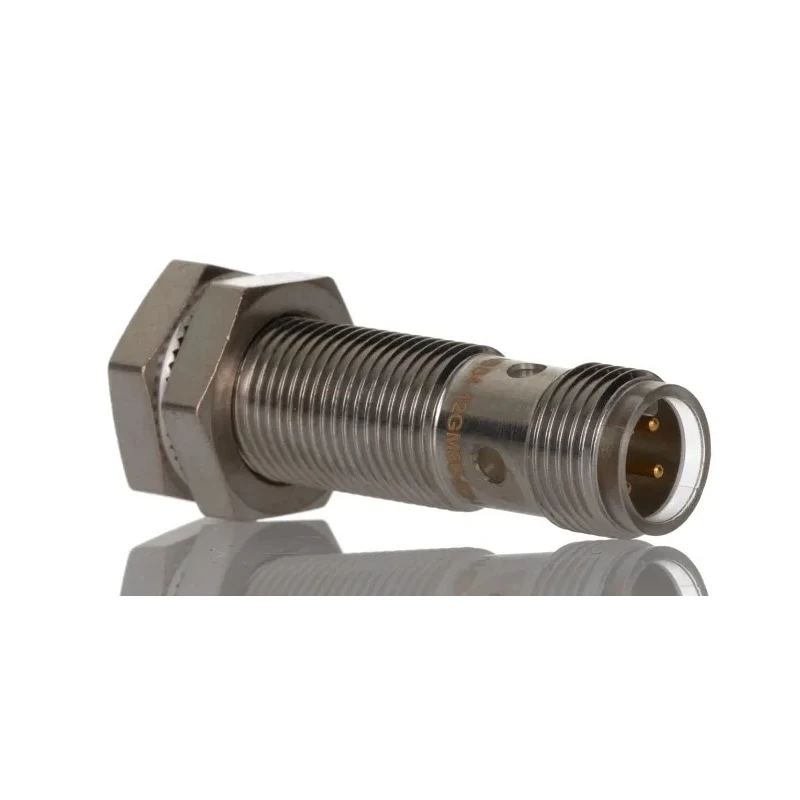

Pepperl + Fuchs Threaded Barrel Inductive Proximity Sensor M12 PNP 36 V dc 4 mm Detection Range NBB4-12GM30-E2-V1
Specifications
| Country of Origin | Vietnam |
|---|---|
| Brand | Pepperl + Fuchs |
| Length | 45mm |
| Model | NBB4-12GM30-E2-V1 |
| Depth | 12mm |
| IP Rating | IP68 |
| Width | 12mm |
| Mount Type | Flush |
| Housing Material | Brass White Bronze Coated |
| Output type | PNP |
| Series | NBB |
| Maximum Operating Temperature | 85°C |
| Thread Size | M12 |
| Minimum Operating Temperature | -40°C |
| Switching Current | 200mA |
| Terminal type | Terminal Block |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 36V dc |
| Shielding | Shielded |
| Maximum Switching Frequency | 2.55kHz |
| Standards/Approvals | DNV GL rules for classification - Ships |
| Maximum Supply Voltage | 36V |
| Materials Detected | Inductive |
| Maximum Detection | 4mm |
Key Features
- The sensor features a brass housing coated with white bronze for durability.
- It operates at a maximum supply voltage of 36 V dc suitable for industrial environments.
- With an IP68 rating, it offers excellent protection against dust and water ingress.
- Flush mount installation capability enables embedding into machinery surfaces.
- The sensor provides PNP output type with a maximum switching current of 200mA.
- Operating temperature range is wide, from -40°C up to 85°C for versatile applications.
- It is shielded to reduce electromagnetic interference and supports a switching frequency of 2.55 kHz.
- Red LED indication facilitates easy status visualization during operation.
Product Description
Pepperl + Fuchs NBB4-12GM30-E2-V1 is a threaded barrel inductive proximity sensor engineered for precise detection of metallic objects within a 4 mm range. Operated on 36 V dc supply with a maximum switching current of 200mA, this sensor provides robust PNP output compatibility for various industrial and automation control systems.
The sensor’s body is constructed from brass coated with white bronze, ensuring resistance to corrosion and mechanical wear, with an IP68 rating that guarantees protection against dust ingress and water immersion. It is designed for flush mounting, allowing seamless integration into machinery and automated assemblies.
Performance-wise, the sensor supports a maximum switching frequency of 2.55 kHz and operates reliably within temperatures ranging from -40°C to 85°C. The shielded configuration minimizes electromagnetic interference, while the LED indicator aids immediate visual confirmation of switching status.
Additional protective features include short circuit and reverse polarity protections enhancing operational safety. Certified under DNV GL rules, this sensor is suitable for harsh environments such as maritime applications, contributing to dependable automation processes.
This Inductive Proximity Sensor is ideal for application in industrial automation, manufacturing, robotics, and process control scenarios demanding reliable detection of metal parts under varied environmental conditions.
The sensor features a brass housing coated with white bronze for durability. It operates at a maximum supply voltage of 36 V dc suitable for industrial environments. With an IP68 rating, it offers excellent protection against dust and water ingress.
Flush mount installation capability enables embedding into machinery surfaces. The sensor provides PNP output type with a maximum switching current of 200mA. Operating temperature range is wide, from -40°C up to 85°C for versatile applications.
It is shielded to reduce electromagnetic interference and supports a switching frequency of 2.55 kHz. Red LED indication facilitates easy status visualization during operation. Short circuit and reverse polarity protection enhance sensor reliability.
Designed following DNV GL rules for classifications, making it suitable for maritime use. Explore our Electronics & Electricals category for additional industrial sensors and automation control gear to support your manufacturing and process automation needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection range of this model is 4 mm for metallic objects.
It operates at a maximum supply voltage of 36 V dc.
The maximum switching current is 200 mA.
This sensor has an IP68 rating, providing excellent protection against dust and water ingress.
The operating temperature range is from -40°C to 85°C.
It is designed for flush mounting, allowing it to be embedded into machinery surfaces.
This model provides a PNP output type.
It is designed to detect inductive materials, specifically metallic objects.
The maximum switching frequency supported by this model is 2.55 kHz.
The housing is made of brass coated with white bronze, enhancing durability and corrosion resistance.
Yes, it includes short circuit and reverse polarity protections to enhance operational safety.
It is certified under DNV GL rules for classification, making it suitable for maritime applications.
