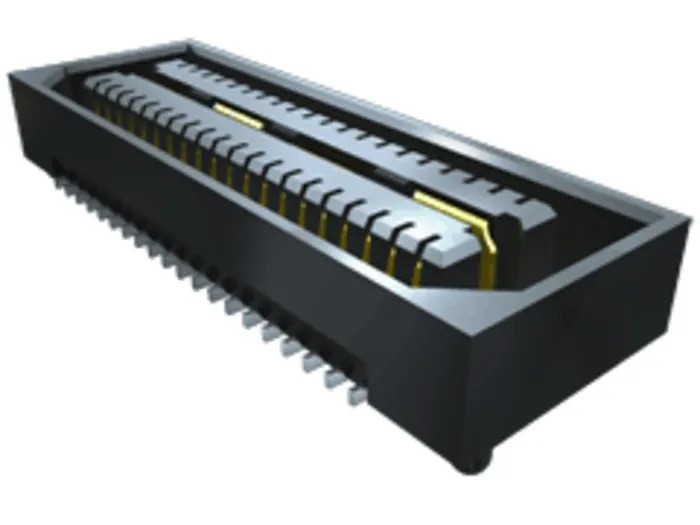

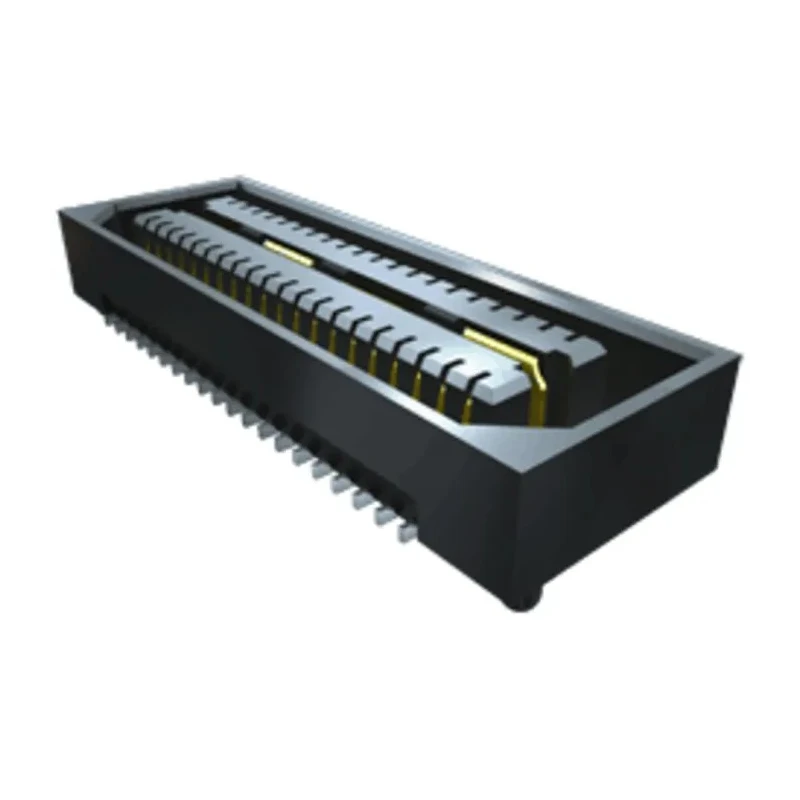

Samtec QSE Series Straight Surface PCB Socket, 80-Contact, 2 Row, 0.8 mm Pitch, 225V, 23A QSE-040-01-F-D-A
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 225V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 23A |
| Model | QSE-040-01-F-D-A |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | QSE |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 0.8mm |
| Contact Plating | Gold |
| Number of Contacts | 80 |
| Connector System | Board-to-Board |
| Stacking Height | 5mm |
| Row Pitch | 5.73mm |
Key Features
- The socket supports a current rating of 23 amperes for reliable power transmission.
- Mount type is surface mount with a stacking height of 5 mm for compact board design.
- Constructed with liquid crystal polymer housing and bronze contacts plated with gold for durability.
- Designed to operate between temperatures of -55°C to 125°C for extended reliability.
- Supports board-to-board connection systems with a row pitch of 5.73 mm.
- The termination type is solder, ensuring solid electrical connection.
- Ideal for industrial, electronics manufacturing, and high-speed signal applications.
Product Description
Samtec QSE Series Straight Surface PCB Socket model QSE-040-01-F-D-A offers a high-performance connectivity solution for electronic assemblies. Featuring 80 contacts arranged in 2 rows with a pitch of 0.8 mm, this PCB socket is engineered for reliable board-to-board communication suitable for demanding industrial environments.
The connector supports a 23A current capacity and 225V voltage rating, ensuring robust power and signal integrity for complex electronic systems. Its surface mount design includes a stacking height of 5 mm, making it ideal for compact PCB layouts where space is a premium.
Made with a housing of liquid crystal polymer and bronze contact material with gold plating, the socket provides excellent durability and corrosion resistance. Its operating temperature range from -55°C to 125°C guarantees performance stability across harsh environments, meeting the requirements of industrial and electronic manufacturing applications.
The socket features a solder termination type that ensures secure and long-lasting electrical connections. With a row pitch of 5.73 mm and straight orientation, it facilitates easy and reliable board-to-board mating. The QSE series offers extended life product technology supporting data rates over 28 Gbps, suitable for high-speed signal transmission needs.
The socket is a cost-effective, high-speed interconnect solution with reliable blade and beam contact system aiding alignment and mating. It supports stack heights from 5 mm to 30 mm, allowing flexibility in design for various board thicknesses.
Ideal usage spans across industrial electronics, manufacturing, computer hardware, and communication equipment. This product does not include certifications but conforms to robust industrial design standards ensuring consistent performance.
The package contains one Samtec QSE Series PCB Socket with 80 contacts, 2 rows, 0.8 mm pitch, and solder termination. Browse EnvMart categories for additional PCB connectors and sockets from top brands for electronic and industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Samtec QSE-040-01-F-D-A PCB socket supports a current rating of 23 amperes.
This model has a voltage rating of 225V, ensuring robust power transmission.
The stacking height for this PCB socket is 5 mm, making it suitable for compact board designs.
It features a housing made of liquid crystal polymer and bronze contacts plated with gold for durability.
The operating temperature range is from -55°C to 125°C, allowing for performance stability in harsh environments.
This model has 80 contacts arranged in 2 rows, with a pitch of 0.8 mm.
The termination type for this socket is solder, ensuring a secure electrical connection.
The row pitch is 5.73 mm, facilitating board-to-board connections.
It is ideal for industrial electronics, manufacturing, computer hardware, and communication equipment.
This socket supports a board-to-board connector system, enhancing connectivity between PCBs.
The orientation of this socket is straight, which aids in easy mating with other connectors.
The country of origin for this PCB socket is India.
