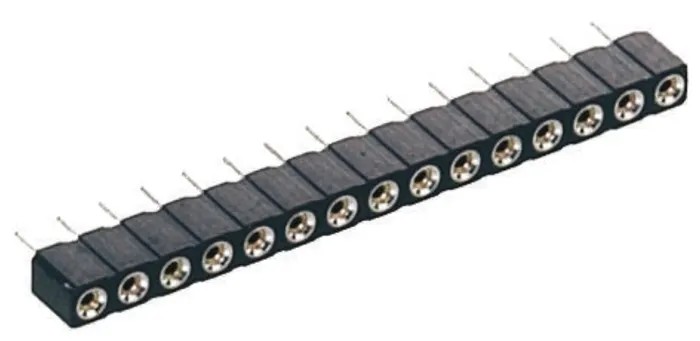

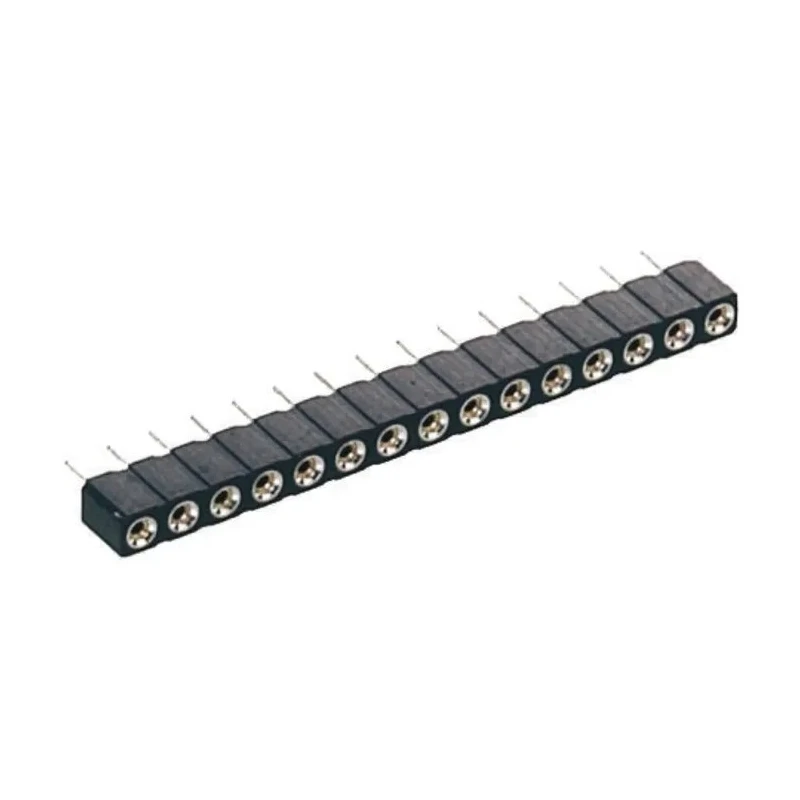

Preci-Dip 9 Way Preci-Dip Straight Through Hole 2.54 mm Pitch SIL Socket 150V dc, Solder, 3A 310-87-109-01-640101

Preci-Dip 310-87-109-01-640101 is a 9 way SIL Socket designed for electronic component assemblies requiring a straight through hole with a 2.54 mm pitch. This solder tail through hole socket connector supports pin diameters of 0.47 mm and features brass sleeves plated with tin, combined with gold flashing on beryllium copper four-finger contact clips for superior electrical performance.

The socket's housing is made from fibreglass reinforced polycyclohexylenedimethylene terephthalate, providing excellent mechanical strength and thermal stability, suitable for operating temperatures from -55°C to 125°C. It is suitable for use in industrial, laboratory, manufacturing, and electronics assembly environments.

With a compact length of 22.86 mm, width and pitch both 2.54 mm, and a depth of 4.2 mm, the socket is compatible with printed circuit boards designed for through hole mounting and solder termination. It is rated for 3 amperes current and 150 volts DC voltage, meeting practical needs in power and signal connection scenarios.

The product is manufactured in Switzerland with compliance to UL 94V-0 standard for flame retardant materials, ensuring safety and reliability in electronic devices. This connector facilitates efficient and consistent mating to pins, improving assembly processes in high-volume manufacturing.

Consists of 9 contacts with gold and tin plating for enhanced conductivity. Constructed with brass and beryllium copper alloy contact materials ensuring reliability. Designed for Through Hole mounting with solder termination type for secure PCB connections.

Operating temperature range from -55°C to 125°C supports diverse environments. Dimensions include length 22.86 mm, width and pitch of 2.54 mm, and depth of 4.2 mm for compatibility. Fibreglass reinforced polycyclohexylenedimethylene terephthalate housing ensures durability.

Supports a current rating of 3A and voltage rating of 150V dc, suitable for various electronics applications. Manufactured in Switzerland adhering to UL 94V-0 safety standard for plastics.

This Preci-Dip 9 Way SIL Socket is ideal for electronics manufacturing, laboratory prototyping, industrial automation, and other commercial applications that require reliable and high-quality IC socket connections. Browse our comprehensive category for SIL Sockets to find compatible parts and tools to optimize your assembly.
