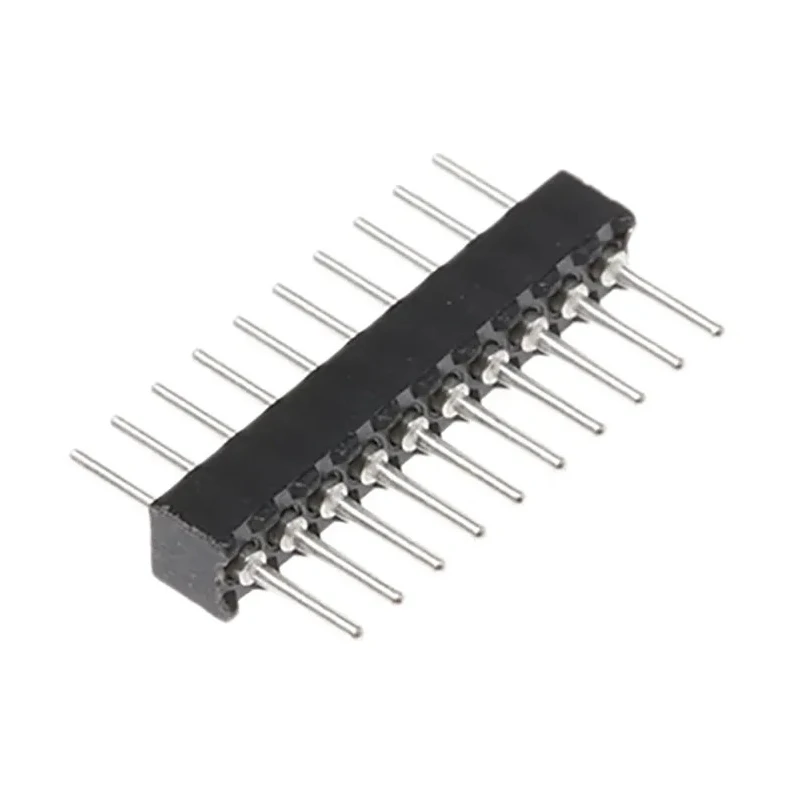

Preci-Dip 850 Series Straight Through Hole Pin Header, 10 Contacts, 1.27 mm Pitch, 1 Row, Unshrouded 850-80-010-10-001101

Preci-Dip 850-80-010-10-001101 is a Swiss-made pin header from the 850 series designed for electronic and industrial PCB applications. It features a straight, unshrouded through-hole male pin configuration with 10 contacts in a single row spaced at a 1.27 mm pitch to optimize circuit density.

The connector is constructed with brass contacts plated with tin, ensuring excellent electrical conductivity and corrosion protection. The housing material is fiberglass reinforced polyethylene terephthalate offering durability and electrical insulation, suitable for harsh operating environments.

Rated for a maximum current of 1A and voltage of 150V, it supports standard low power signal connections. The device is designed to operate over a wide temperature range from -55°C to 125°C, making it reliable in industrial, testing, manufacturing, and laboratory equipment.

Mounting is through-hole type, facilitating stable, permanent placements on PCB assemblies. The contact pin diameter is 0.41 mm with precise mechanical dimensions that include a body height of 2.2 mm and tail length around 2.9 mm, allowing easy soldering and mechanical retention.

This 850 series pin header meets UL 94V-0 flammability requirements, ensuring safety compliance for industrial and commercial electronic products. This product is ideal for use in electronics manufacturing, prototyping, embedded systems, and other applications requiring small form factor, reliable pin headers.

The pin header features a 1.27 mm pitch for compact PCB layouts. It consists of a single row of 10 unshrouded male pins for versatile use. Constructed with brass contacts plated with tin for excellent conductivity and corrosion resistance.

The housing is made with fiberglass reinforced polyethylene terephthalate, ensuring durability and electrical insulation. It supports a current rating of 1A and voltage rating up to 150V. Designed for through-hole mounting, enabling secure and stable PCB connection.

Operates reliably between -55°C and 125°C, suitable for various environmental conditions. The pin diameter is 0.41 mm with body height around 2.2 mm and tail length approximately 2.9 mm. Standards do not apply; this product is UL 94V-0 rated for flammability resistance.

Manufactured in Switzerland ensuring high quality and precision.
