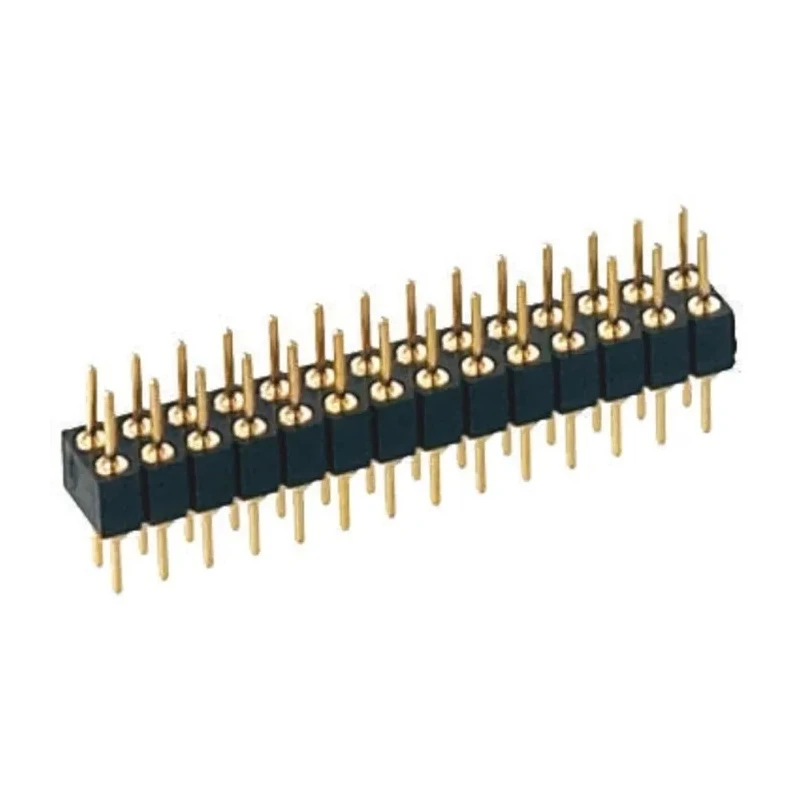

Preci-Dip 832 Series Straight Through Hole Pin Header 10 Contacts 2 mm Pitch 2 Row Unshrouded 832-80-010-10-001101

Preci-Dip 832-80-010-10-001101 is a high-quality Swiss-made straight through hole pin header designed for printed circuit board applications requiring a reliable connector solution. It features 10 male contacts arranged in a two-row, unshrouded layout with a 2 mm pitch, ensuring compatibility with a wide range of PCB designs.

The pin header’s housing material consists of fiberglass reinforced polymer, offering excellent mechanical strength and thermal stability under standard and harsh operating conditions. The brass contacts are plated with tin to provide superior electrical performance and corrosion resistance. The termination type is solder, with a tail length of 2.9 mm optimized for through-hole soldering processes.

Rated for a current of 3 amperes and a voltage of 150 volts, this connector is suitable for industrial, electronic manufacturing, and laboratory equipment applications. Its operational temperature range from -55°C to 125°C ensures dependable function in varied environments. Although this product does not carry specific standards or approvals, its construction adheres to recognized UL 94V-0 flammability requirements for the housing.

These pin headers are ideal for use in industrial controls, instrumentation, telecommunications, and automated assembly systems, facilitating efficient and precise electrical connections. The unshrouded design allows for easy inspection and testing of the connections, while the two-row format helps maximize the number of connections in limited PCB area.

This pin header features a two-row configuration for versatile PCB mounting. It is unshrouded with male brass contacts plated with tin for durability and conductivity. The housing is made of fiberglass reinforced polymer ensuring mechanical stability.

Designed for through-hole mounting with a current rating of 3A and voltage rating of 150V. Operating temperature ranges from -55°C to 125°C suitable for demanding environments. The pitch between pins is 2 mm enabling compact and precise connector placement.

The pins have a diameter of 0.47 mm and a tail length of 2.9 mm, ideal for soldering processes. This product is manufactured in Switzerland and meets UL 94V-0 flammability standard for housing materials.

For users requiring reliable and precise PCB connectivity solutions, the Preci-Dip 832 Series pin headers provide excellent performance and durability. Explore more electronic components and connectors in the PCB Pin Header category at EnvMart.
