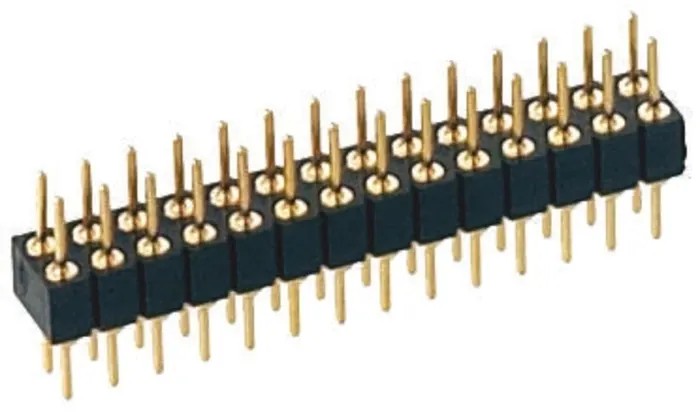

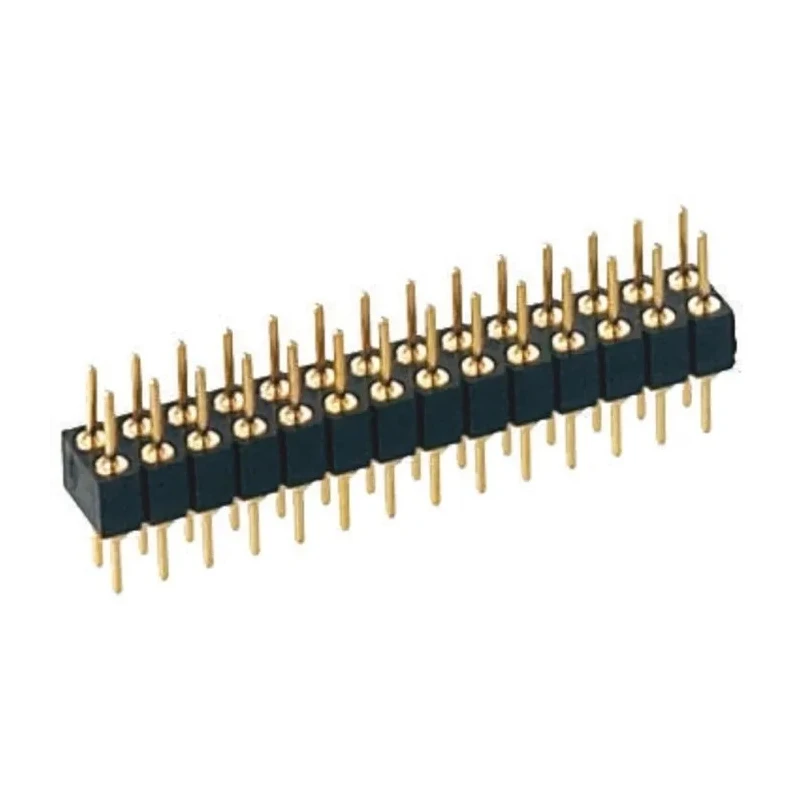

Preci-Dip 832 Series Straight Through Hole Pin Header 20 Contacts 2 mm Pitch 2 Row Unshrouded 832-80-020-10-001101

Preci-Dip 832-80-020-10-001101 is a high-quality straight through hole pin header designed for printed circuit board (PCB) applications requiring 20 contacts arranged in 2 rows with a 2 mm pitch. This unshrouded connector ensures straightforward integration in electrical and electronic assemblies.

The housing is made of fibreglass reinforced polymer providing mechanical strength and thermal stability. Contacts are fabricated from brass with tin plating, which guarantees excellent electrical conductivity and corrosion resistance. The male contact gender design suits through-hole solder mounting using a 2.9 mm tail length.

Engineered to operate efficiently in harsh environments, this pin header supports a current of 3 Amps and a maximum operating voltage of 150V. Its temperature tolerance spans from a minimum of -55°C to a maximum of 125°C, making it suitable for diverse industrial, construction, and manufacturing scenarios including electronic control systems and instrumentation.

The product complies with UL 94V-0 flammability standards, ensuring safety and reliability in demanding applications. Made in Switzerland, it reflects precision engineering and stringent quality standards.

Constructed with fibreglass reinforced polymer housing for durability. Brass contacts with tin plating ensure reliable conductivity. Designed with a straight orientation and unshrouded contacts. Supports 3 Amp current rating with operating voltage up to 150V.

Suitable for through-hole solder mount with male contact gender. Operates reliably between -55°C and 125°C temperature range. Tail length of 2.9 mm for through-hole soldering applications. Manufactured in Switzerland adhering to UL 94V-0 flammability standards.

This pin header is ideal for electronic PCB assembly processes requiring robust and precise connections. It is widely used in industrial, laboratory, manufacturing, and electronic control equipment installation. Featuring a 2-row configuration with 20 contacts, the product optimizes space while providing dependable electrical interconnections.
