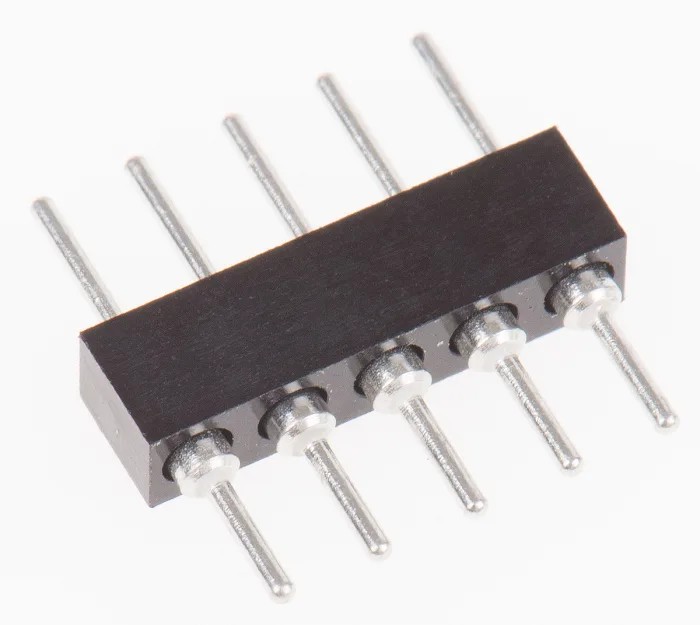

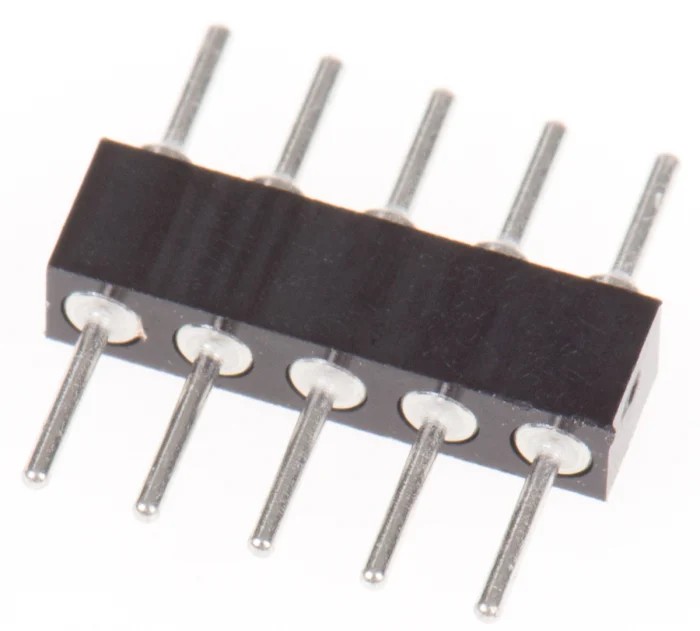

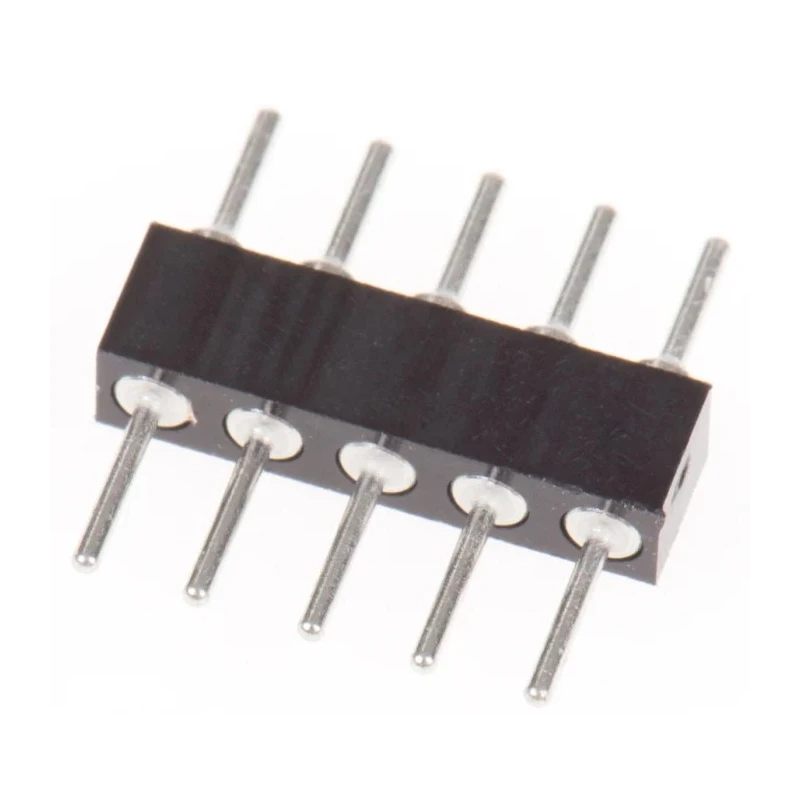

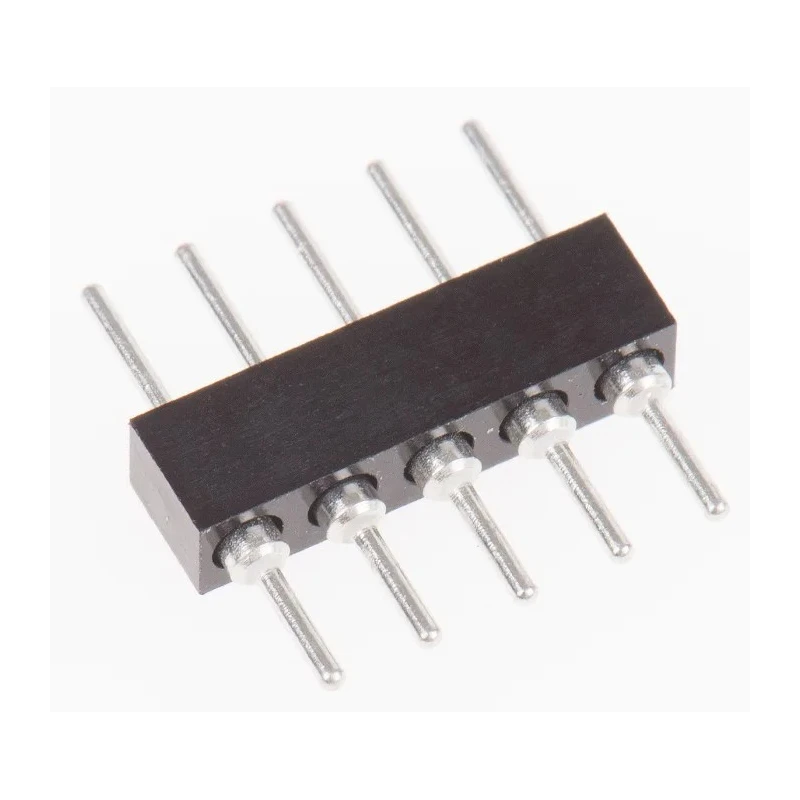

Preci-Dip 830 Series Straight Through Hole Pin Header, 5 Contacts, 2 mm Pitch, 1 Row, Unshrouded 830-80-005-10-001101
Specifications
| Country of Origin | Switzerland |
|---|---|
| Voltage | 150V |
| Brand | Preci-Dip |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Fibreglass Reinforced Polymer |
| Contact Material | Brass |
| Series | 830 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2mm |
| Contact Plating | Tin |
| Number of Contacts | 5 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
Key Features
- Constructed with fibreglass reinforced polymer housing for durability.
- Brass contact material with tin plating ensures reliable conductivity.
- Supports a current rating of 3 amperes at 150 volts.
- Designed for through hole mount with solder termination type.
- Operates reliably in temperatures from -55°C to 125°C.
- Unshrouded straight orientation allows easy PCB insertion.
- Manufactured in Switzerland adhering to UL 94V-0 standards.
- Suitable for electronics and electrical connector applications demanding high precision.
Product Description
Preci-Dip 830 Series straight through hole pin header model 830-80-005-10-001101 is a reliable PCB connector component designed for industrial and electronic assembly uses. Featuring 5 male contacts with a precise 2 mm pitch in a single row, this unshrouded header provides easy and efficient through-hole mounting solutions for printed circuit boards.
The housing is made from fibreglass reinforced polymer that offers robustness and electrical insulation, while the brass contacts with tin plating ensure low resistance and longevity. Rated for 3 amps current and 150 volts voltage, this component operates efficiently within a temperature range of -55°C to 125°C, making it suitable for a variety of environmental conditions.
Designed for solder termination, the straight pin header facilitates secure PCB connections. The product complies with UL 94V-0 safety standards and is manufactured in Switzerland, promising high quality and performance.
This pin header is widely used in industrial electronics, control systems, telecommunications, and other applications where reliable PCB connection is critical. Its unshrouded single-row design suits compact layouts needing straightforward through-hole installation.
Fibreglass reinforced polymer housing for electrical insulation and durability. Brass contacts with tin plating for enhanced conductivity and corrosion resistance. 3A current rating with maximum 150V operation voltage. Suitable operating temperature range from -55°C to 125°C.
Through hole mounting with solder termination type. Unshrouded with a straight orientation pin header design. Compliance with UL 94V-0 flammability standard. Manufactured in Switzerland ensuring quality and reliability.
This Preci-Dip 830 Series pin header is an excellent choice for electronics manufacturers and engineers seeking a rugged, precise connector for PCB applications. Explore the connectors category at EnvMart for more high-quality PCB headers and related components.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a current rating of 3 amperes.
The maximum voltage it can handle is 150 volts.
The contacts are spaced at a pitch of 2 mm.
The housing is made of fibreglass reinforced polymer, while the contacts are brass with tin plating.
It operates reliably in temperatures ranging from -55°C to 125°C.
This model features 5 male contacts.
It uses a solder termination type for secure connections.
This pin header is unshrouded, allowing for easy PCB insertion.
It is manufactured in Switzerland.
The orientation of this model is straight.
It complies with UL 94V-0 safety standards.
It is suitable for industrial electronics, control systems, and telecommunications applications.
