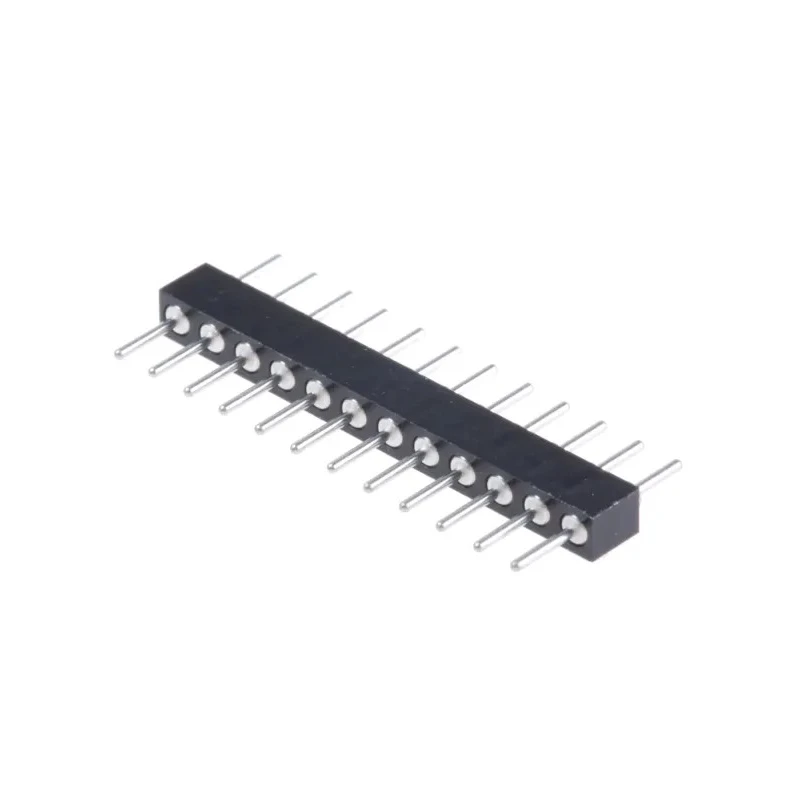

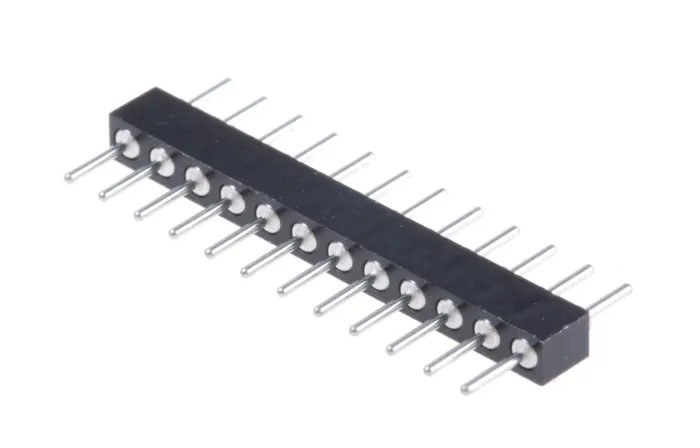

Preci-Dip 830 Series Straight Through Hole Pin Header 12 Contacts, 2 mm Pitch, 1 Row, Unshrouded 830-80-012-10-001101
Specifications
| Country of Origin | Switzerland |
|---|---|
| Voltage | 150V |
| Brand | Preci-Dip |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Fibreglass Reinforced Polymer |
| Contact Material | Brass |
| Series | 830 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2mm |
| Contact Plating | Tin |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
Key Features
- Features a 2 mm pitch with a single row configuration.
- Constructed with brass contacts plated with tin for corrosion resistance.
- The housing is made of fibreglass reinforced polymer ensuring durability.
- Suitable for through-hole mount type with solder termination.
- Rated for 3A current and 150V voltage operation.
- Operating temperature range from -55°C to 125°C supports diverse environments.
- Unshrouded male contact design facilitates easy mating and connection.
- Manufactured in Switzerland ensuring high quality standards.
Product Description
Preci-Dip 830-80-012-10-001101 is a high-quality Straight Through Hole Pin Header designed for PCB connector applications. This component features 12 male brass contacts arranged in a single row with a 2 mm pitch, optimized for precise and secure soldered connections on printed circuit boards. The housing is constructed from fibreglass reinforced polymer, providing mechanical strength and insulation.
This pin header operates reliably in temperatures ranging from -55°C to 125°C, accommodating a wide range of industrial and electronic environments. It supports a current rating of 3A and a maximum voltage of 150V, making it suitable for various low to medium power PCB applications.
The contacts are tin plated brass, offering excellent conductivity and resistance to corrosion and wear. Its through-hole mounting style with solder termination ensures a robust mechanical and electrical connection to PCBs.
2 mm pitch with 12 contacts in a single row. Brass tin-plated male contacts for durability and conductivity. Fibreglass reinforced polymer housing for strength and insulation. Through-hole solder termination for secure PCB mounting.
Wide operating temperature range from -55°C to 125°C. Rated for 3A current and 150V voltage. Unshrouded design allows easy mating with connectors. Manufactured in Switzerland, supporting high manufacturing standards. Meets UL 94V-0 flammability rating ensuring safety.
This pin header is ideal for use in electronic assemblies, industrial control equipment, communication devices, and other applications requiring reliable PCB interconnect solutions. Its precision design allows for integration in laboratory instruments, manufacturing equipment, and consumer electronics. The product enables secure and efficient signal and power transmission, contributing to the performance and longevity of electronic systems.
Explore similar Preci-Dip components and other PCB connectors at EnvMart for your electronic project needs.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This pin header features a 2 mm pitch with 12 male contacts arranged in a single row.
It is rated for a maximum voltage of 150V, making it suitable for various low to medium power applications.
The pin header supports a current rating of 3A, which is suitable for its intended applications.
The contacts are made of brass with tin plating for corrosion resistance, and the housing is constructed from fibreglass reinforced polymer.
It uses a solder termination type, which is designed for secure mounting on printed circuit boards.
The operating temperature range is from -55°C to 125°C, allowing it to function in diverse environments.
This model features an unshrouded design, which facilitates easy mating with connectors.
It is manufactured in Switzerland, ensuring adherence to high quality standards.
The orientation of this pin header is straight, designed for through-hole mounting applications.
It meets the UL 94V-0 flammability rating, which indicates a high level of safety in its application.
This pin header is ideal for electronic assemblies, industrial control equipment, and communication devices, among others.
This model has a single row configuration, which is typical for many PCB connector applications.
