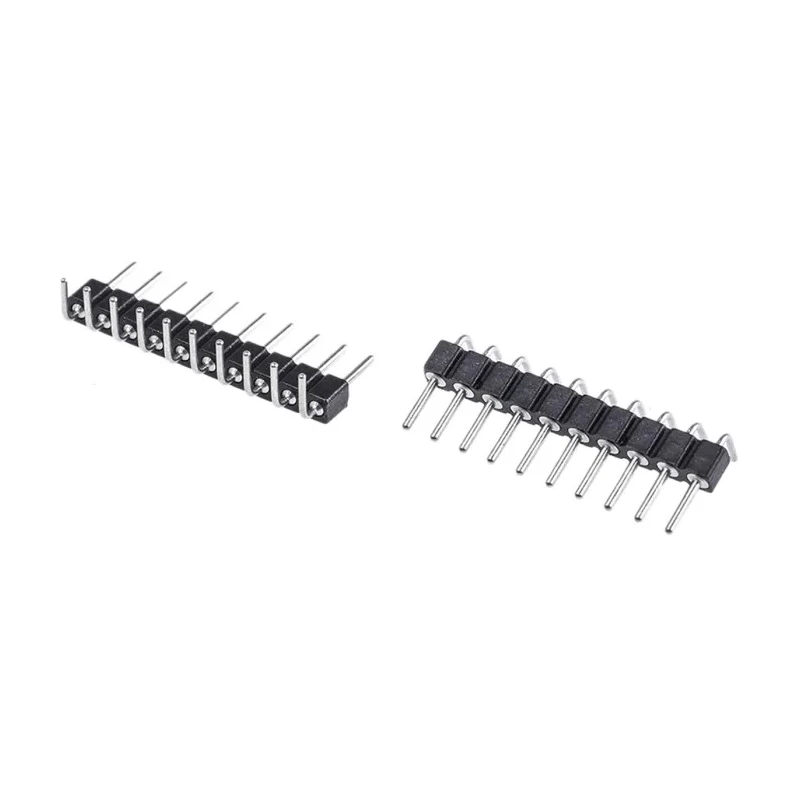

Preci-Dip 800 Series Right Angle Through Hole Pin Header 10 Contact, 2.54 mm Pitch, 1 Row, Unshrouded 800-80-010-20-001101

Preci-Dip 800-80-010-20-001101 Right Angle Through Hole Pin Header is engineered for robust PCB interconnect applications. Featuring 10 brass contacts plated with tin, it is designed to carry a current of up to 3A efficiently while maintaining reliable signal integrity. The pin pitch of 2.54 mm and a single-row configuration allow compatibility with standard PCB layouts.

Its fibreglass reinforced polyethylene terephthalate housing offers excellent mechanical strength and electrical insulation, suitable for demanding electronic environments. The right angle orientation supports compact PCB design and facilitates easy board-to-wire connections through its through-hole mount type.

The connector performs reliably within an operating temperature range from -55°C up to +125°C, making it ideal for industrial, commercial, and electronic manufacturing applications. Its unshrouded design eases soldering and visual inspection during assembly processes.

Preci-Dip's 800 Series provides consistent quality and precision manufactured in Switzerland, compatible across a range of PCB header requirements from 2 to 24 contacts. This model enhances connection reliability in fields such as industrial automation, instrumentation, and electronics prototyping.

The connector supports a current rating of 3A for efficient power handling. Constructed with brass contacts plated with tin for high conductivity and corrosion resistance. Features a single row, right angle orientation suitable for through hole mounting.

Housing made from fibreglass reinforced polyethylene terephthalate ensures durability and heat resistance. Operates reliably within a temperature range of -55°C to 125°C. Designed for solder termination ensuring secure and stable contacts.

Rated for a voltage of 150V making it suitable for various electronic applications. Unshrouded contact design facilitates easy inspection and soldering. Manufactured in Switzerland ensuring high-quality standards and precision engineering.
