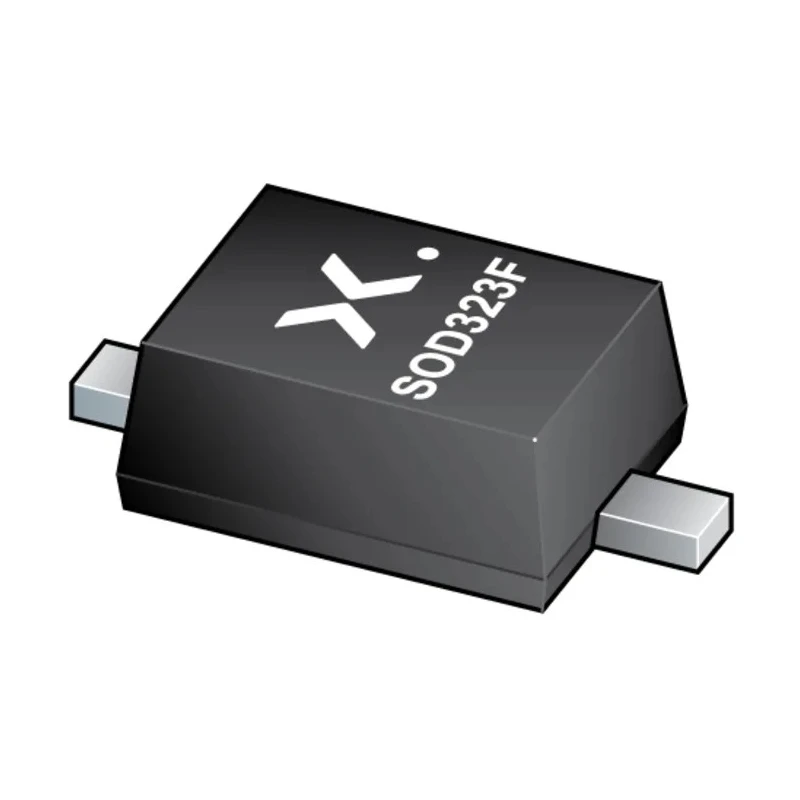

Nexperia General Purpose 13 V Zener Diode 550 mW Power Surface Mount 2-Pin SOD-323 BZX84J-B13,115

Name: Nexperia General Purpose 13 V Zener Diode 550 mW Power Surface Mount 2-Pin SOD-323 BZX84J-B13,115
Brand: Nexperia
SKU: 215040
Price: 0.06 USD
Availability: InStock



Category Zener Diodes Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	0.8mm
Length	2.7mm
Model	BZX84J-B13,115
Mount Type	Surface
Series	BZX84J
Maximum Operating Temperature	150°C
Package Type	SOD-323
Minimum Operating Temperature	-55°C
Pin Count	2
Number of Elements per Chip	1
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	550mW
Diode Configuration	Single
Test Current It	5mA
Maximum Reverse Leakage Current	100nA
Nominal Zener Voltage Vz	13V
Zener Type	General Purpose
Maximum Zener Impedance	10Ω
Typical Voltage Temperature Coefficient	11mV/K
Total power dissipation	≤ 550 mW
Non-repetitive Peak reverse power dissipation	≤ 40 W
Two tolerance series	±2 % and ±5 %
Wide working voltage range	nominal 2.4 V to 75 V (E24 range)

Key Features

The diode features a 2-pin surface mount design suitable for compact PCB layouts.
It provides a nominal Zener voltage of 13 V with ±2% tolerance.
The maximum power dissipation is rated at 550 mW ensuring reliable performance.
Operating temperature range is from -55°C to 150°C making it ideal for various environments.
Maximum Zener impedance is 10 Ω offering stable voltage regulation.
Maximum reverse leakage current is 100 nA helping reduce power loss in circuits.
The device is AEC-Q101 qualified, meeting automotive industry standards.
The package dimensions are compact with a length of 2.7 mm and height of 0.8 mm.

Product Description

The Nexperia BZX84J-B13,115 is a general purpose Zener Diode designed for voltage regulation in electronic circuits. It features a nominal Zener voltage of 13 V with ±2% tolerance and a maximum power dissipation of 550 mW. Packaged in a small SOD-323 surface mount device format with 2 pins, this diode is ideal for compact and automated assembly processes.

The diode has a wide operating temperature range from -55°C up to 150°C, allowing reliable operation in harsh industrial, automotive, and commercial environments. Its maximum Zener impedance of 10 Ω and low reverse leakage current of 100 nA ensure efficient voltage regulation with minimal power loss. It is compliant with automotive standard AEC-Q101, making it suitable for use in automotive electronics.

The small plastic package with dimensions of 2.7 mm length and 0.8 mm height enables compact designs on PCBs where space is limited. The diode supports a broad voltage spectrum with a working range from 2.4 V up to 75 V (E24 series), providing flexibility across various applications.

Typical use cases include voltage stabilization in industrial control systems, power supply circuits, automotive electronics, and other semiconductor devices requiring precise voltage regulation or reference levels.

The 2-pin surface mount design facilitates automated PCB assembly and reflow soldering. The device offers excellent reliability under extended operating temperature ranges. It achieves low differential resistance for stable voltage output across expected load variations.

The diode’s peak reverse power dissipation rating is ≤ 40 W for non-repetitive conditions. Non-repetitive peak reverse power dissipation capability enhances device robustness in transient conditions.

Highly suitable for electronics manufacturers and engineers designing power regulation circuits, this Nexperia Zener Diode balances performance, size, and quality for demanding industrial and automotive applications.
