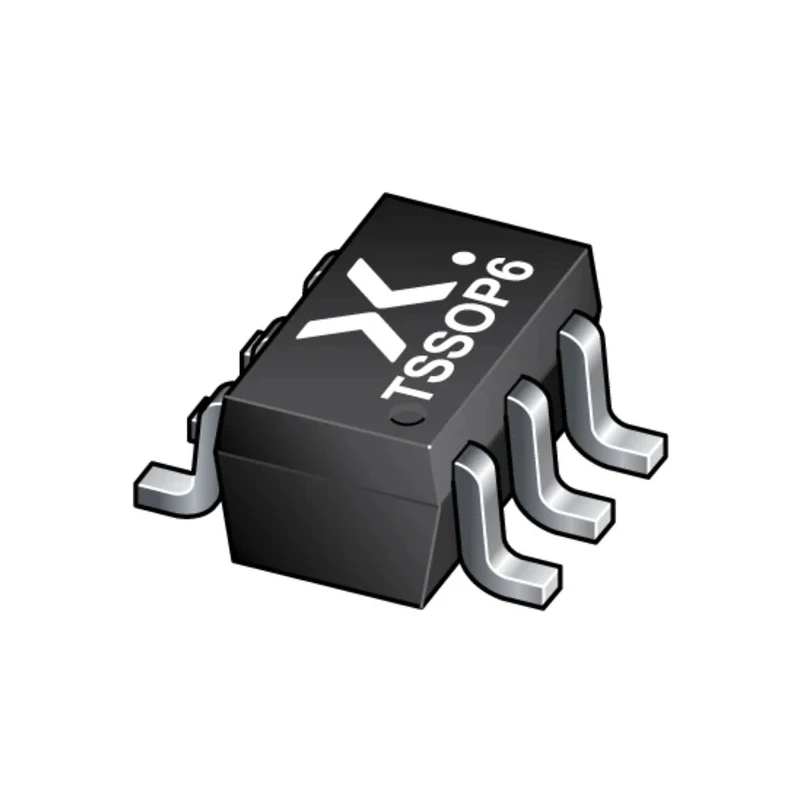

Nexperia Resistor-Equipped Transistor Dual NPN + PNP 100 mA 50 V 6-Pin SOT PUMD12,115

Free Delivery in India | Lowest Global Shipping Charges

Nexperia Resistor-Equipped Transistor Dual NPN + PNP 100 mA 50 V 6-Pin SOT PUMD12,115

Name: Nexperia Resistor-Equipped Transistor Dual NPN + PNP 100 mA 50 V 6-Pin SOT PUMD12,115
Brand: Nexperia
SKU: 214869
Price: 0.05 USD
Availability: InStock



Category Bipolar Transistors Brand Nexperia Condition New

Specifications

Country of Origin	Malaysia
Brand	Nexperia
Height	0.95mm
Length	2.1mm
Model	PUMD12,115
Width	1.25mm
Mount Type	Surface
Series	PUMD12
Maximum Operating Temperature	150°C
Package Type	SOT
Minimum Operating Temperature	-65°C
Standards/Approvals	RoHS
Pin Count	6
Maximum Collector Emitter Voltage Vceo	50V
Minimum DC Current Gain hFE	80
Transistor Polarity	NPN + PNP
Maximum Emitter Base Voltage VEBO	10V
Maximum Collector Base Voltage VCBO	50V
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	300mW
Maximum DC Collector Current Idc	100mA
Transistor Configuration	Dual
Maximum Transition Frequency ft	230MHz

Key Features

Maximum DC collector current of 100 mA ensures moderate power handling.
Maximum collector emitter voltage of 50 V suits typical low-power switching applications.
Built-in 47 kΩ bias resistors simplify circuit design.
Dual NPN and PNP transistor configuration provides versatile usage.
300 mW maximum power dissipation supports compact, efficient operation.
Surface mount technology in a 6-pin SOT package for space saving.
Wide operating temperature range from -65°C to 150°C.
AEC-Q101 automotive standard ensures reliability in harsh environments.

Product Description

Nexperia PUMD12,115 resistor-equipped transistor is a dual NPN + PNP transistor designed for space and cost-saving solutions in electronic circuits requiring moderate current and voltage handling. This device integrates 47 kΩ bias resistors internally, reducing component count and simplifying circuit layouts. It features a 100 mA maximum DC collector current and a collector emitter voltage rating of 50 V, making it suitable for switching and amplification in various applications.

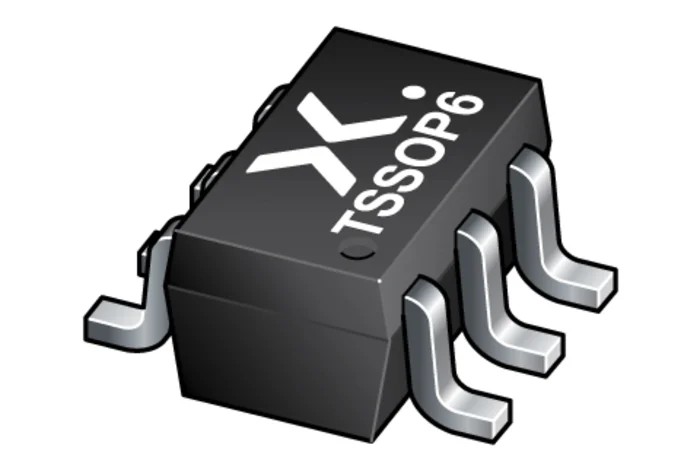

Packaged in a compact 6-pin SOT surface-mount device with dimensions of 2.1 mm length, 1.25 mm width, and 0.95 mm height, this transistor offers efficient board space utilization. With a maximum power dissipation of 300 mW, it supports reliable operation under typical low-power conditions.

The device complies with RoHS standards and meets AEC-Q101 automotive quality requirements, ensuring suitability for automotive and industrial applications involving wide temperature ranges from -65°C to 150°C. The dual transistor configuration (NPN + PNP) adds flexibility for designing complementary circuits.

100 mA maximum collector current capacity for moderate loads. Internal bias resistors integrated to reduce external components. Compact 6-pin SOT surface mount package optimized for space saving. Wide operating temperature range from -65°C to 150°C.

RoHS compliant and AEC-Q101 automotive qualified. Maximum collector emitter voltage of 50 V for versatile low power applications. Low power dissipation of 300 mW supports efficient thermal management. NPN + PNP dual transistor configuration for complementary designs.

Compact package with 2.1 mm length, 1.25 mm width, 0.95 mm height.

This resistor-equipped transistor is commonly used in industrial, automotive, and consumer electronics where circuit simplification and board space conservation are critical. It enables designers to create efficient, reliable switching and amplification stages.
