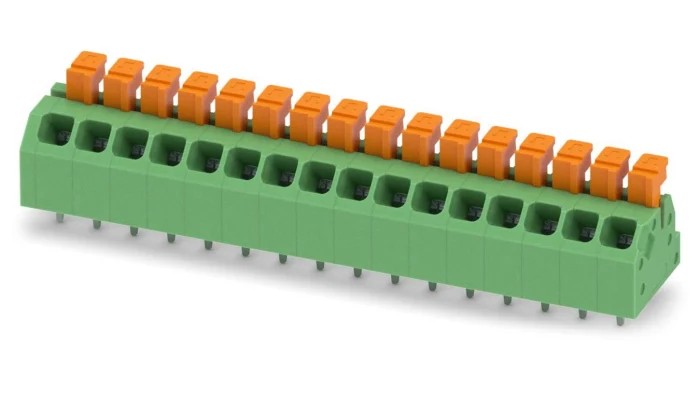

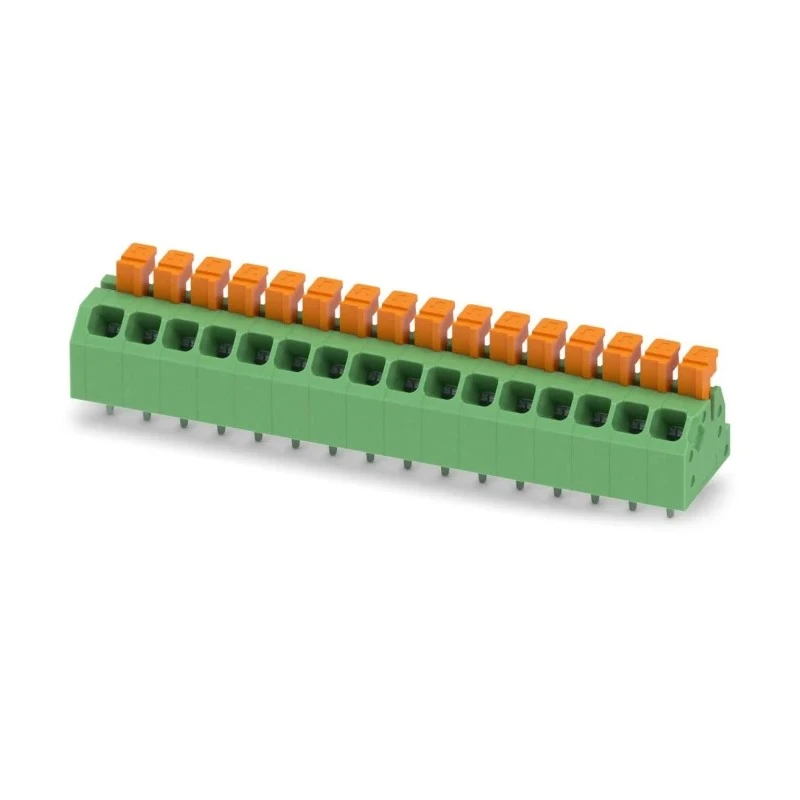

Phoenix Contact Angled PCB Terminal Block 16 Contacts 3.5 mm Pitch 160 V 13.5 A Polyamide Housing 1864422
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 160V |
| Brand | Phoenix Contact |
| Orientation | Angled |
| Current | 13.5A |
| Model | 1864422 |
| Housing Material | Polyamide |
| Series | SPTAF 1/16-3.5-LL |
| Number of Rows | 2 |
| Pitch | 3.5mm |
| Standards/Approvals | UL Recognised, EU RoHS, cULus Recognised |
| Number of Contacts | 16 |
| PCB Terminal block, nominal current | 13.5 A, nom. voltage: 160 V, pitch: 3.5 mm, number of positions: 16, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, Colour: green |
Key Features
- Designed with a compact angled 2-row configuration for space-efficient mounting.
- Constructed with durable polyamide housing ensuring electrical insulation and long-term reliability.
- Capable of handling a nominal current of 13.5 A with push-in spring connection technology.
- Features a finger-operated and fixable release button for convenient wiring and maintenance.
- Includes integrated test options for quick and precise operational verification.
- Mounting is optimized for wave soldering, supporting automated PCB assembly processes.
- Complies with UL Recognised, EU RoHS, and cULus standards for quality and safety assurance.
- Conductor and PCB connection achieved at 45° orientation enhancing installation flexibility.
Product Description
Phoenix Contact 1864422 is an angled PCB terminal block designed for demanding electronics applications. It features 16 contacts arranged in 2 rows with a 3.5 mm pitch, supporting a nominal voltage of 160 V and a nominal current of 13.5 A. The terminal block housing is made from polyamide, providing excellent insulation and mechanical strength.
The device utilizes a time-saving push-in spring connection method that does not require tools, significantly reducing installation time and effort. The contact force is defined to ensure a stable and reliable connection over the product lifespan, minimizing maintenance needs.
It includes a finger-operated and lockable release button allowing for user-friendly reconnection and wiring changes. The terminal block is designed for wave soldering mounting processes, suitable for automated mass production environments. The conductor to PCB connection is angled at 45 degrees, improving accessibility and assembly convenience.
Additional features include integrated test points that enable convenient operation checking without disassembly. The green color coding simplifies identification and fault finding in complex electronic assemblies.
This product conforms to international standards including UL Recognised, EU RoHS compliance, and cULus recognised certifications, ensuring quality, safety, and environmental friendliness.
Compact angled 2-row configuration to save PCB space. Robust polyamide housing for excellent insulation. Push-in spring connection for tool-free high-reliability connections. Integrated testing option for operational checks.
Finger-operated lockable release button for ease of use. Wave solder mounting compatible. Angled 45° conductor/PCB connection for versatile installation.
This angled PCB terminal block is ideal for electronic component assembly, industrial control equipment, power distribution boards, and other commercial and industrial electronics manufacturing. It offers dependable connectivity and easy installation supporting modern automated production lines.
Explore further PCB Terminal Blocks and electronic connectors in the EnvMart catalog for comprehensive electronics and electrical component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a nominal current rating of 13.5 A.
This model supports a nominal voltage of 160 V.
It features 16 contacts arranged in 2 rows.
The pitch size is 3.5 mm.
This terminal block utilizes a push-in spring connection method, allowing for tool-free installation.
The housing is constructed from polyamide, providing excellent electrical insulation.
It is optimized for wave soldering, making it suitable for automated PCB assembly processes.
The conductor to PCB connection is at a 45° angle, enhancing installation flexibility.
Yes, it includes integrated test options for quick and precise operational verification.
It complies with UL Recognised, EU RoHS, and cULus standards for quality and safety assurance.
The country of origin for this terminal block is India.
It is ideal for electronic component assembly, industrial control equipment, and power distribution boards.
