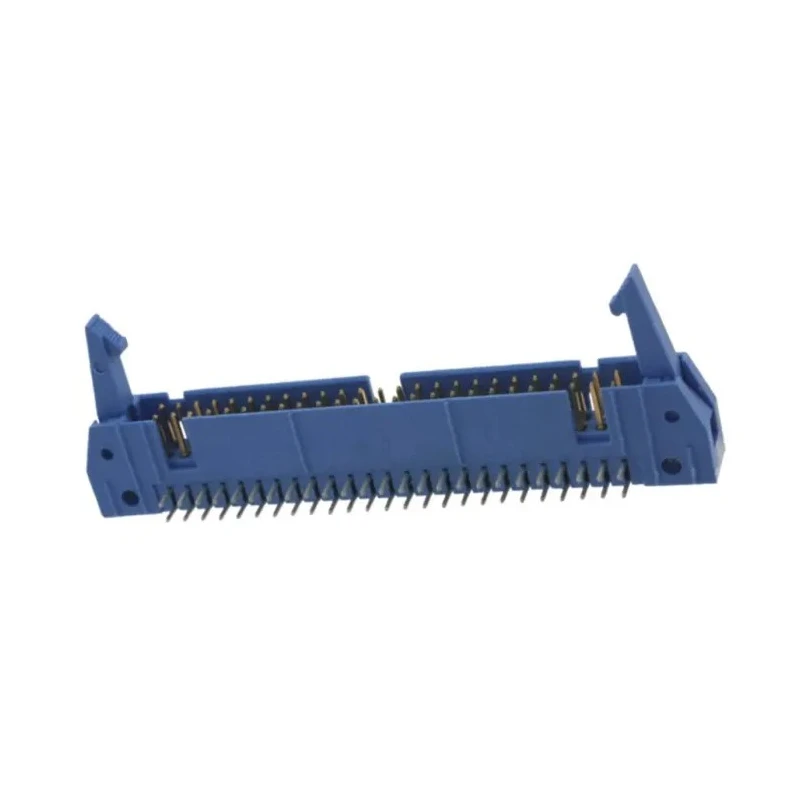

TE Connectivity AMP-LATCH Series Right Angle Through Hole PCB Header, 50 Contacts, 2.54 mm Pitch, 2 Row, Shrouded 3-5499141-0
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Phosphor Bronze |
| Series | AMP-LATCH |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 50 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.79mm |
Key Features
- Features AMP-LATCH universal ejection style for secure connection and easy removal.
- Right angle orientation and through hole mount type for PCB applications.
- Contact material is phosphor bronze with gold plating for reliability.
- Designed for 1A current and 250V voltage rating with solder termination.
- Housing made from durable nylon and shrouded for protection.
- Operates within temperature range of -65°C to 105°C.
- Suitable for industrial, medical, networking, and electronic equipment.
- Includes 2 rows of contacts with a tail pin length of 2.79 mm.
Product Description
TE Connectivity 3-5499141-0 AMP-LATCH Series Right Angle Through Hole PCB Header is designed with 50 contacts arranged in 2 rows, featuring a 2.54 mm pitch and shrouded housing made from nylon for durability and protection. The right angle, through hole mount allows secure PCB mounting in various industrial assemblies.
This connector uses phosphor bronze contacts plated with gold to enhance conductivity and corrosion resistance. It supports a current rating of 1A at 250V, suitable for a range of electronic applications.
The AMP-LATCH universal ejection style provides military, center, and dual polarization ensuring accurate mating with compatible IDC ribbon cable receptacles. Options for long and short ejector latches allow mating versatility with receptacles with or without strain relief.
Operating temperature ranges from -65°C to 105°C, making it reliable in harsh industrial, medical, networking, storage, and electrical testing environments. The solder termination ensures a solid mechanical and electrical connection to the PCB.
These characteristics make the 3-5499141-0 PCB header ideal for use in PCs, business equipment, industrial controls, appliances, and more. Features AMP-LATCH universal ejection style for secure connection and easy removal.
Right angle orientation and through hole mount suitable for PCB interfaces. Phosphor bronze contact material with gold plating for durability. Current rating of 1A and voltage rating of 250V ensures reliable operation. Durable nylon shrouded housing offers protection and reliability.
Wide operating temperature range from -65°C to 105°C for various conditions. Compatible with IDC ribbon cable connectors with options for long or short latch styles. Suitable for industrial, medical, networking, and electronic applications.
Explore the Electronics Components category at EnvMart to find compatible PCB headers and connectors by TE Connectivity and other leading brands.
Explore more products in our Electronic Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 1A and a voltage rating of 250V, making it suitable for various electronic applications.
The connector features a 2.54 mm pitch and includes 50 contacts arranged in 2 rows.
The contacts are made of phosphor bronze and are plated with gold, while the housing is constructed from durable nylon.
It uses solder termination, ensuring a solid mechanical and electrical connection to the PCB.
The operating temperature range is from -65°C to 105°C, allowing it to function in various environmental conditions.
The tail pin length of the contacts is 2.79 mm, which aids in secure PCB mounting.
Yes, it is suitable for industrial, medical, networking, and electronic equipment applications.
This model utilizes a through hole mount type for secure PCB mounting in various assemblies.
The connector features a right angle orientation, which is beneficial for space-constrained applications.
This model belongs to the wire-to-board connector system, facilitating connections between wires and PCBs.
The country of origin for this product is India.
