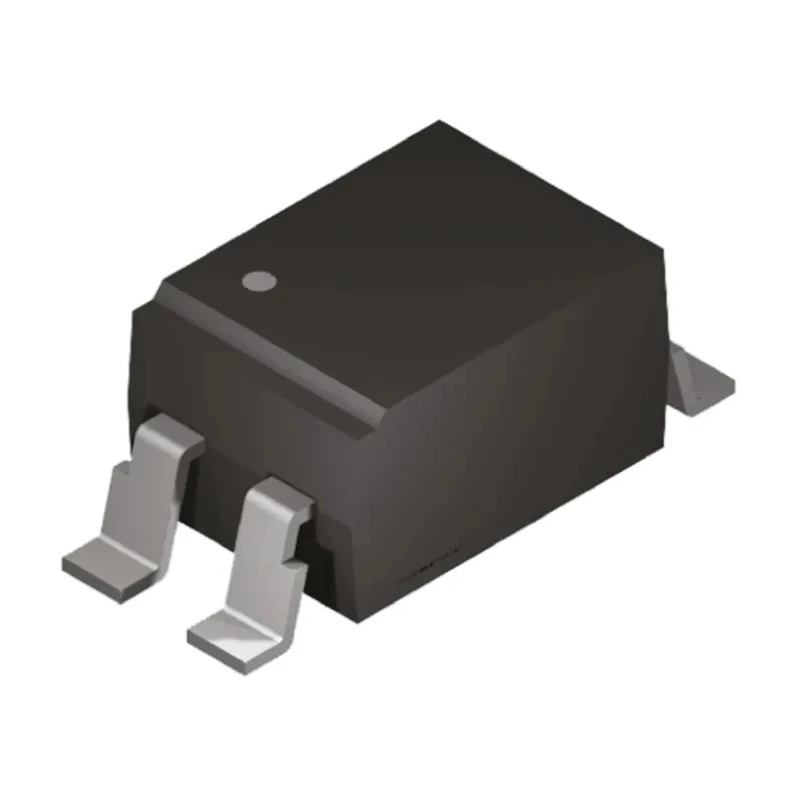

Vishay DC Input Optocoupler Surface Mount 4-Pin SOP 1 Channel Phototransistor Output TCLT1000
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | TCLT1000 |
| Mount Type | Surface |
| Output type | Phototransistor |
| Series | TCLT |
| Maximum Operating Temperature | 100°C |
| Package Type | SOP |
| Minimum Operating Temperature | -55°C |
| Maximum input current | 60mA |
| Number Of Channels | 1 |
| Standards/Approvals | UL, EN |
| Maximum Forward Voltage | 1.6V |
| Number of Pins | 4 |
| Input Current Type | DC |
| Typical Rise Time | 3μs |
| Maximum Current Transfer Ratio | 6% |
| Typical Fall Time | 4.7μs |
| Minimum Current Transfer Ratio | 0.5% |
| Isolation Voltage | 5000V ac |
Key Features
- The optocoupler supports a maximum forward voltage of 1.6V for input LED control.
- It features a single channel configuration suitable for signal isolation applications.
- Rated for maximum input current of 60mA for reliable operation.
- Isolation voltage is 5000V AC, ensuring robust electrical separation.
- Operating temperature ranges from -55°C to 100°C for versatile environmental use.
- Typical rise and fall times are 3μs and 4.7μs respectively for rapid response.
- Maximum and minimum current transfer ratios range from 0.5% to 6%.
- Complies with UL and EN safety standards for assured quality.
Product Description
Vishay TCLT1000 is a high-performance DC input optocoupler designed for surface mount applications using a 4-pin SOP package. It employs a phototransistor as the output element, providing excellent electrical isolation between input and output circuits, essential for preventing noise and voltage spikes.
Operating with a maximum forward input voltage of 1.6V and supporting up to 60mA input current, it delivers reliable control signals. Its single-channel design makes it ideal for signal isolation in power supplies, industrial automation, telecom systems, and other electronics requiring high isolation voltage and fast signal response.
The optocoupler guarantees an isolation voltage rating of 5000V AC, allowing it to withstand substantial potential differences and improve device safety. The wide operating temperature range from -55°C to 100°C ensures stable performance in demanding environmental conditions.
Typical switching performance is characterized by rise and fall times of 3μs and 4.7μs, respectively, enabling efficient signal transmission in digital isolation and interface applications. The current transfer ratio varies between 0.5% and 6%, providing flexibility for diverse system requirements.
The optocoupler is UL and EN approved, meeting international quality and safety standards. Its compact 4-pin SOP form factor supports automated surface mounting processes, improving production efficiency. Designed by Vishay Semiconductor, part of the TCLT series, known for robustness and reliability.
Common industrial applications include use in power and control circuits for industrial machinery, instrumentation, communication devices, and measurement systems requiring electrical isolation. The device enhances system reliability by isolating high-voltage and low-voltage sections effectively.
Explore a broad catalog of Optocouplers and electronic components at EnvMart for compatible solutions and complementary products to meet your industrial and electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input current for the TCLT1000 optocoupler is 60mA, ensuring reliable operation in various applications.
This optocoupler has an isolation voltage rating of 5000V AC, providing robust electrical separation between input and output circuits.
The operating temperature range for this model is from -55°C to 100°C, making it suitable for diverse environmental conditions.
The typical rise time is 3μs and the fall time is 4.7μs, allowing for efficient signal transmission in digital applications.
This model features a single channel configuration, which is suitable for various signal isolation applications.
The maximum forward voltage for input LED control in this optocoupler is 1.6V.
The TCLT1000 provides a phototransistor output, enabling effective signal isolation between circuits.
This optocoupler complies with UL and EN safety standards, ensuring quality and reliability in its applications.
The TCLT1000 is packaged in a 4-pin SOP format, suitable for surface mount applications.
The current transfer ratio for the TCLT1000 ranges from a minimum of 0.5% to a maximum of 6%.
The TCLT1000 optocoupler is manufactured in India.
This optocoupler is suitable for signal isolation in power supplies, industrial automation, telecom systems, and other electronics requiring high isolation voltage.
