Panasonic PCB Signal Relay 24V DC Coil, 1A Switching Current, DPDT Contact Configuration AGN20024

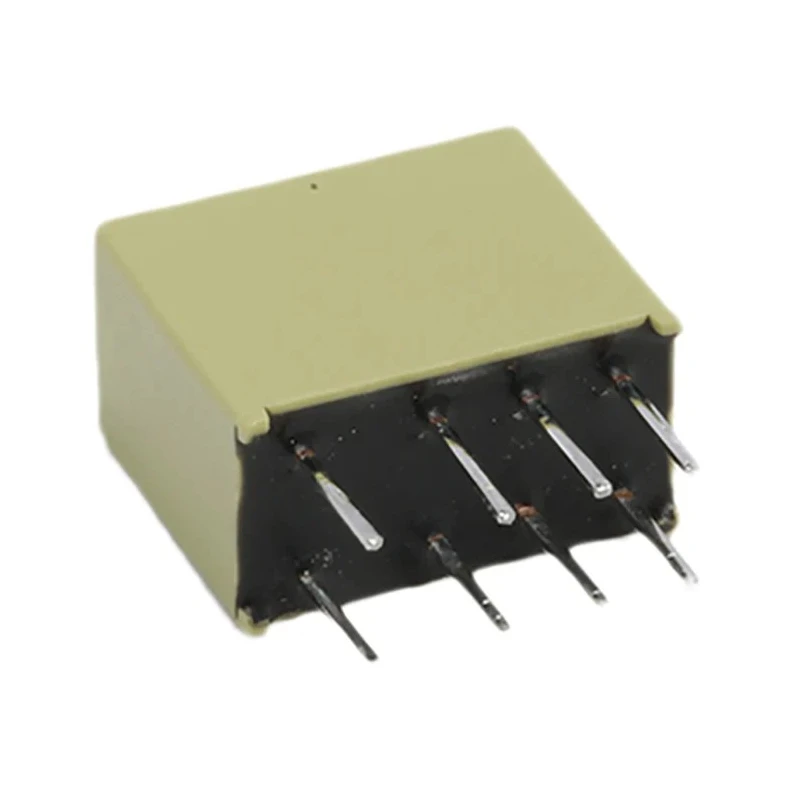

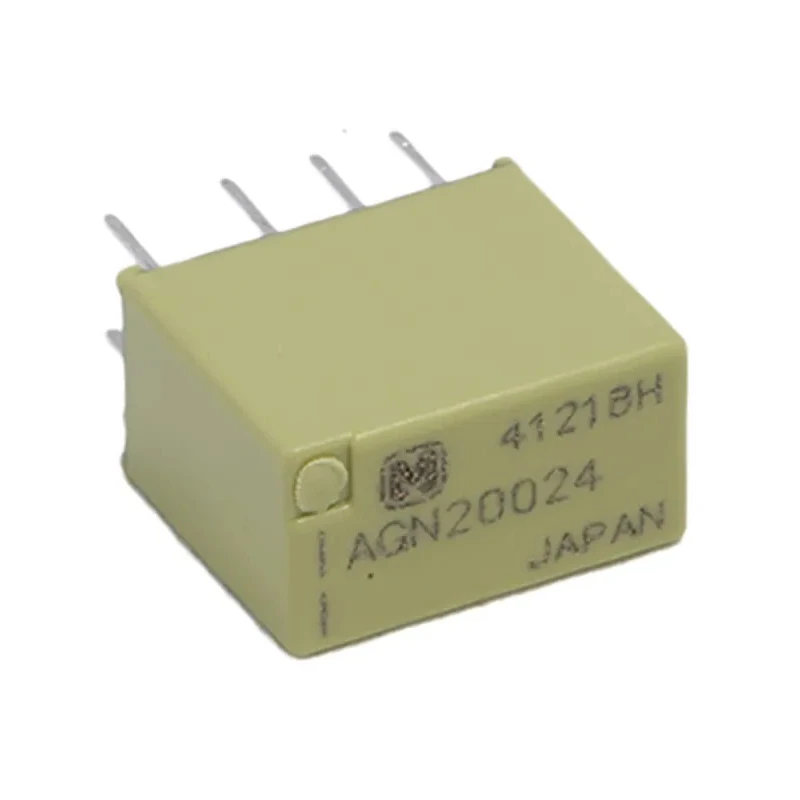

Panasonic AGN20024 PCB Signal Relay is a high-performance signal relay designed for reliable and compact circuit switching operations in industrial and electronic applications. Featuring a 24V DC coil voltage and a switching current rating of 1A, this DPDT (Double Pole Double Throw) relay is ideally suited for use in telecommunications systems, measurement devices, and audio-visual equipment.

The relay boasts a compact slim body with dimensions of 9mm in height, 5.7mm in width, and 10.6mm in length, allowing for increased packing density and seamless integration on printed circuit boards (PCBs). The gold plated silver aluminium contacts ensure excellent electrical conductivity and durability, with twin crossbar contact design enhancing reliability even under high surge conditions.

The sealed construction of the relay permits automatic washing processes, making it suitable for high-quality manufacturing environments. It operates reliably across a temperature range from -40°C to 85°C, catering to a wide range of industrial and commercial uses. The coil resistance is 2500Ω with a coil power consumption of 230mW, optimizing power efficiency.

This Panasonic signal relay conforms to RoHS environmental standards and is manufactured in Japan, reflecting superior quality and compliance. Rated for switching voltages up to 125V AC and 110V DC, it ensures versatile application potential in various signal conditioning and control systems.

Compact slim body dimensions: 9mm height, 5.7mm width, and 10.6mm length. Gold plated silver aluminium contact material provides high conductivity and durability. Twin crossbar contacts offer high contact reliability and surge resistance.

Sealed construction allows for automatic washing during manufacturing. Wide operating temperature range from -40°C to 85°C suits multiple applications. PCB mount type ensures easy and secure installation. Coil resistance of 2500Ω and coil power consumption of 230mW for optimal energy usage.

Complies with RoHS environmental safety standards. Switching voltages up to 125V AC and 110V DC. Manufactured in Japan, assuring quality and reliability.

This relay is suitable for demanding industrial applications including telecommunications, laboratory measurement equipment, and audio-visual systems, ensuring consistent and reliable signal switching.
