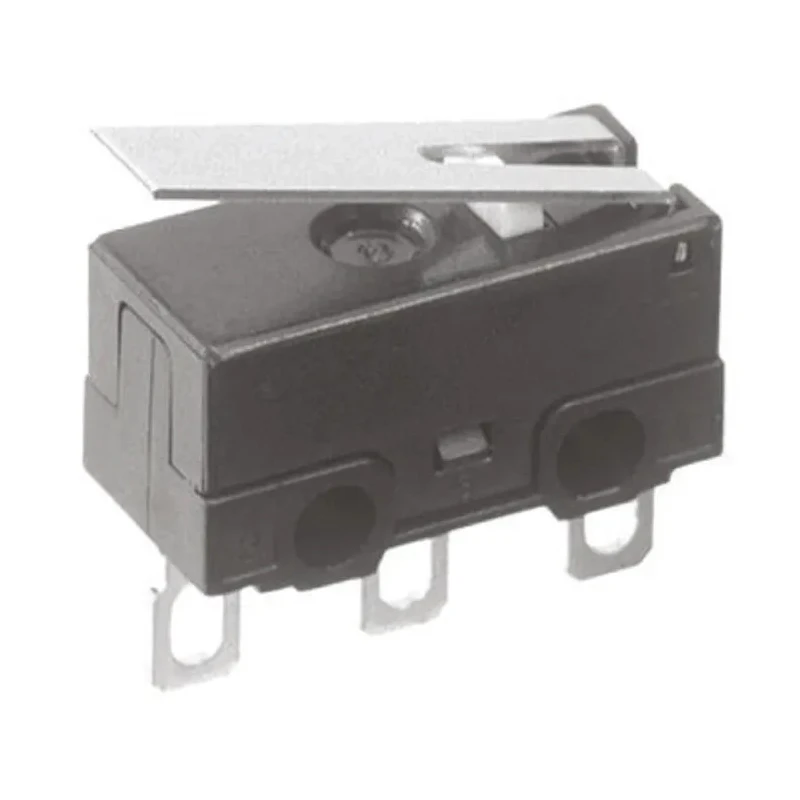

Panasonic Hinge Lever Ultra Miniature Micro Switch, Solder Terminal, 2A, 125V AC, 30V DC, SPCO AH16629-A
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Panasonic |
| Length | 12.8mm |
| Model | AH16629-A |
| Depth | 6mm |
| Series | AH1 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPCO |
| Actuator Type | Hinge Lever |
| Minimum Operating Temperature | -25°C |
| Terminal type | Solder |
| Standards/Approvals | CSA, RoHS, UR |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 2A |
| Operating Force | 0.49N |
| Mechanical Life | 500000Operations |
| Contact AC Voltage | 125V ac |
| Microswitch Type | Ultra Miniature |
Key Features
- Operates at 2A current with 125V AC and 30V DC contact ratings.
- Features a compact size of 12.8 mm length and 6 mm depth for minimal space usage.
- Solder terminal type allows reliable electrical connections.
- Designed for mechanical life of 500,000 operations ensuring durability.
- Operating force is low at 0.49N for sensitive actuation.
- Wide operating temperature range from -25°C up to 85°C for varied environments.
- Utilizes SPCO contact configuration suitable for circuit control.
- Complies with CSA, RoHS, and UR standards for quality and safety.
Product Description
Panasonic AH16629-A Ultra Miniature Micro Switch features a hinge lever actuator and solder terminal contacts, designed to provide precise and reliable switching in compact assemblies.
This micro switch operates with a contact current capacity of 2A at 125V AC and 30V DC, and incorporates an SPCO contact configuration enhancing flexibility in switching circuits.
The switch measures a compact 12.8 mm in length and 6 mm in depth, optimizing space usage in devices such as computer peripherals, charging units for mobile phones, and automotive key detection systems.
It is engineered for a mechanical life of 500,000 operations, delivering extended service life in industrial, consumer electronics, and automotive manufacturing environments. The solder terminal type ensures secure electrical connectivity while the integrally moulded terminal block prevents soldering flux ingress, enhancing product reliability.
With an operating force of only 0.49N, this switch allows sensitive actuation and responsiveness in control systems. Designed to operate efficiently across a temperature range of -25°C to 85°C, it can withstand environmental variation in HVAC, manufacturing automation, and laboratory equipment.
The AH16629-A complies with CSA, RoHS, and UR certifications demonstrating adherence to safety and environmental standards. Operates at 2A contact current with 125V AC and 30V DC ratings. Compact size of 12.8 x 6 x 8.5 mm suits space-constrained applications.
Hinge lever actuator for precise switching control. Solder terminal type ensures durable electrical connections. Mechanical life rated at 500,000 operations for long-term usability. Wide operating temperature from -25°C to 85°C.
SPCO contact configuration for versatile circuit integration. Compliance with CSA, RoHS, and UR safety and environmental standards. Ideal in electronics, automotive, and manufacturing applications. Explore Panasonic Micro Switch solutions and other electronic components at EnvMart for your industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This micro switch operates with a contact current capacity of 2A.
It has a contact voltage rating of 125V AC and 30V DC.
The switch measures 12.8 mm in length and 6 mm in depth.
It operates efficiently across a temperature range from -25°C to 85°C.
This model utilizes a hinge lever actuator for precise switching control.
The mechanical life of this switch is rated at 500,000 operations.
It features a solder terminal type for secure electrical connectivity.
The operating force for this micro switch is low at 0.49N, allowing for sensitive actuation.
It utilizes an SPCO contact configuration suitable for circuit control.
This model complies with CSA, RoHS, and UR standards for quality and safety.
It is suitable for use in electronics, automotive, and manufacturing applications.
The country of origin for this micro switch is Thailand.
