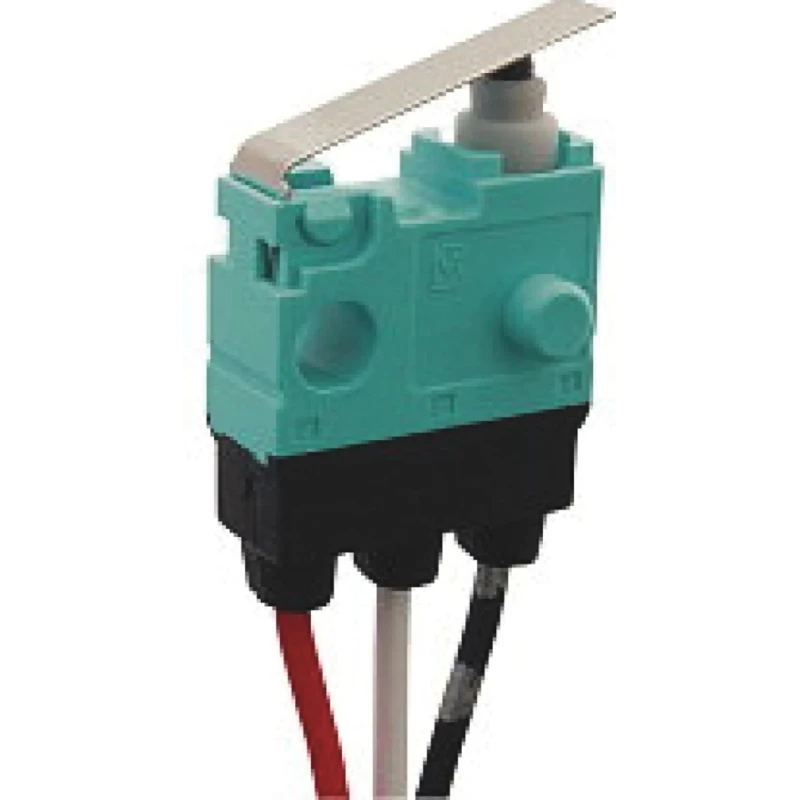

Panasonic Leaf Lever Micro Switch Pre-Wired Terminal 100mA 30V dc SPCO IP67 ASQ10617
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Model | ASQ10617 |
| IP Rating | IP67 |
| Width | 5.4mm |
| Series | ASQ |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPCO |
| Actuator Type | Leaf Lever |
| Minimum Operating Temperature | -40°C |
| Terminal type | Pre-Wired |
| Standards/Approvals | RoHS |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 100mA |
| Operating Force | 1.7N |
| Microswitch Type | Ultra Miniature |
Key Features
- Equipped with a leaf lever actuator ensuring precise switching operations.
- Pre-wired terminals allow easy integration into circuits.
- Compact ultra-miniature design with a width of 5.4mm.
- Operates silently with a low operating force of 1.7N.
- Suitable for industrial and automotive applications due to high IP67 protection.
- Wide operating temperature range from -40°C to 85°C for versatile environments.
- RoHS compliant, ensuring adherence to environmental standards.
- High contact reliability designed for low level switching loads.
Product Description
Panasonic ASQ10617 leaf lever micro switch is an ultra-miniature device designed for precision switching tasks, featuring a leaf lever actuator and pre-wired terminal for ease of installation.
This micro switch accommodates a contact current of 100mA at 30V dc with a Single Pole Change Over (SPCO) contact system. Its IP67 protection rating ensures robust resistance against dust and water ingress, making it suitable for demanding industrial and automotive environments.
The device operates with a low operating force of 1.7N, delivering silent operation and high contact reliability, which is ideal for low level switching loads. The compact width of 5.4mm allows fitting into limited spaces without compromising performance.
Designed based on a new sliding contact system, it offers a high overtravel of 2.5mm for optimal contact force, simplifying installation and adjustment while preventing bounce and hysteresis in switching actions.
Compliant with RoHS standards, the ASQ10617 prioritizes environmental safety alongside functionality. Operating temperature range from -40°C to 85°C suits various industrial settings. Manufactured in Japan, this micro switch exemplifies reliability and precision engineering.
Equipped with a leaf lever actuator ensuring precise switching operations. Pre-wired terminals for straightforward wiring and connection. Ultra-miniature size with a 5.4mm width suitable for compact installations. Quiet operation with a low operating force of 1.7N reduces mechanical noise.
High ingress protection with IP67 rating for harsh environments. Wide operating temperature range from -40°C to 85°C enhances versatility. RoHS compliance confirms adherence to environmental regulations. Reliable contact system minimizing bounce and hysteresis effects.
Manufactured in Japan ensuring excellent build quality and durability.
This Panasonic micro switch is well-suited for use in industrial automation, manufacturing controls, automotive sensors, electrical panels, and other applications requiring reliable micro switching components.
Explore the extensive range of Micro Switches and related components available on EnvMart to find compatible accessories and complementary products to enhance your electrical and automation projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact current rating of this micro switch is 100mA.
This model operates at a contact DC voltage of 30V.
It uses a leaf lever actuator for precise switching operations.
The width of this micro switch is 5.4mm, making it ultra-miniature and suitable for compact installations.
The device has an IP67 rating, providing high protection against dust and water ingress.
It operates within a temperature range of -40°C to 85°C.
This switch requires a low operating force of 1.7N for activation.
Yes, this micro switch is RoHS compliant, ensuring adherence to environmental standards.
It features pre-wired terminals for easy integration into circuits.
This micro switch is manufactured in Japan.
The contact configuration of this micro switch is Single Pole Change Over (SPCO).
It is suitable for industrial automation, manufacturing controls, automotive sensors, and electrical panels.
