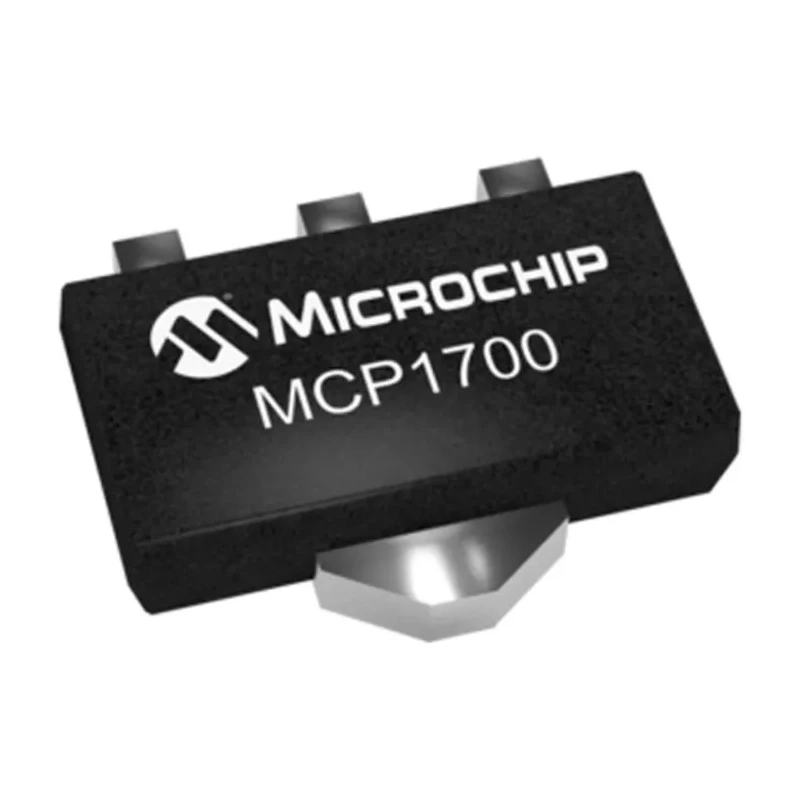

Microchip Voltage Regulator 6V SOT-89 3-Pin MCP1700T-3302E/MB

Microchip MCP1700T-3302E/MB is a high-performance low dropout (LDO) voltage regulator designed for efficient and reliable voltage regulation at 6V output. With its compact SOT-89 3-pin surface mount package, it is ideal for industrial electronic circuits requiring a stable positive voltage supply with low power consumption. The device supports a maximum input voltage of 6V and operates with an ultra-low quiescent current of 1.6μA, making it suitable for battery-powered and portable applications.

This regulator complies with the automotive industry standard AEC-Q100, ensuring dependable operation in automotive and industrial environments with operating temperatures up to 125°C. Its small dimensions (4.6mm length × 2.29mm width × 1.6mm height) allow for space-saving PCB layouts. The minimum input voltage of 2.3V enables use with various power sources while maintaining regulated output voltage. The MCP1700 series is widely used in power management IC applications including industrial, commercial, automotive, and consumer electronics.

Maximum input voltage of 6V ensures stable voltage regulation. Low quiescent current of 1.6μA enhances energy efficiency in designs. SOT-89 3-pin surface mount package facilitates easy PCB assembly. Wide operating temperature range up to 125°C for challenging environments.

Automotive grade with AEC-Q100 certification guarantees high reliability. Compact form factor with precise footprint dimensions. Ideal for power management needs in industrial and automotive sectors. Available supplied on a reel for streamlined manufacturing processes and improved production efficiency.
