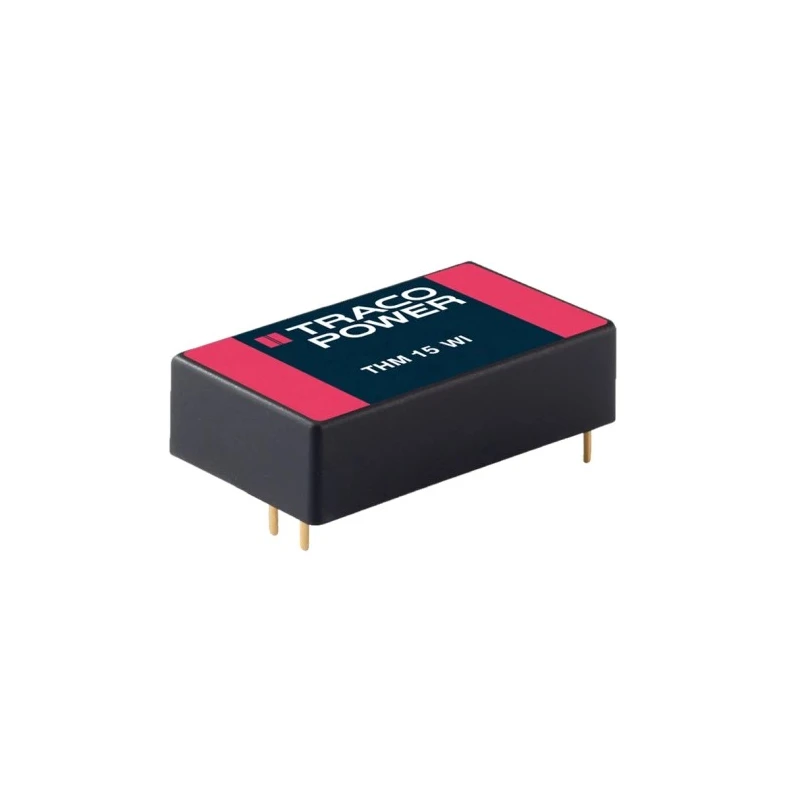

TRACOPOWER Medical 15W DC/DC Converter 5V DC 1.5A 75V DC Input Through Hole THM 15-4821WI

Free Delivery in India | Lowest Global Shipping Charges

TRACOPOWER Medical 15W DC/DC Converter 5V DC 1.5A 75V DC Input Through Hole THM 15-4821WI

Name: TRACOPOWER Medical 15W DC/DC Converter 5V DC 1.5A 75V DC Input Through Hole THM 15-4821WI
Brand: TRACOPOWER
SKU: 213771
Price: 1166.5 USD
Availability: InStock



Category DC-DC Converter Brand TRACOPOWER Condition New

Specifications

Country of Origin	Taiwan
Voltage	Converters / DC-DC Converters TRACOPOWER THM 15WI DC/DC Converter, 5V dc/ 1
Brand	TRACOPOWER
Efficiency	86%
Length	40.6mm
Model	THM 15-4821WI
Depth	10.2mm
Width	25.4mm
Mount Type	Through Hole
Series	THM 15WI
Maximum Operating Temperature	85°C
Package Type	DIP
Minimum Operating Temperature	-40°C
MTBF	2080000h
Number of outputs	2
Maximum Output Power	15W
Maximum Input Voltage	75V dc
Minimum Input Voltage	18V
Number of Pins	6
Output Voltage 1	5V dc
Output Current 1	1.5A
Isolation Voltage	5kV ac
Input Ratio	4:1
Output Voltage 2	-5V dc
Input Ratio4	1

Key Features

Equipped with 75 V maximum and 18 V minimum DC input voltage range.
Features reinforced isolation rated at 5 kV AC for enhanced safety.
Compact DIP package with dimensions 40.6mm length, 25.4mm width, and 10.2mm depth.
Operates efficiently at up to 86% efficiency within -40°C to 85°C temperature range.
Includes dual outputs delivering 5 V and -5 V DC with 1.5 A and 1.15 A currents respectively.
Designed to comply with IEC/EN/ES 60601-1 3rd edition standards for medical equipment safety.
Low leakage current less than 2.5 µA suitable for medical and industrial applications.
Mean time between failures (MTBF) of 2,080,000 hours ensuring high reliability.

Product Description

TRACOPOWER presents the THM 15-4821WI series, a medical grade DC/DC converter providing 15 Watts output power in a compact 1.6 x 1.0 inch plastic DIP package. This converter supports a wide 2:1 input voltage range from 18 V to 75 V DC, making it suitable for diverse industrial and medical power applications. It offers dual outputs: +5 V DC at 1.5 A and -5 V DC at 1.15 A, enabling versatile use cases requiring bipolar voltage rails.

Featuring reinforced isolation rated to 5000 V ACrms, the converter ensures safe operation with low leakage current below 2.5 µA, meeting rigorous medical safety certifications including IEC/EN/ES 60601-1 3rd edition for 2x MOPP. The unit carries an ISO 14971 risk management file and is produced under the ISO 13485 quality management system.

This device is engineered for through-hole mounting with 6 pins and housed in a DIP package measuring 40.6 mm length, 25.4 mm width, and 10.2 mm depth. Operating temperature ranges from -40°C to +85°C enable rugged performance in varied environments.

High efficiency of 86% to minimize power loss and heat generation. Wide input voltage range (18 to 75 V DC) supports flexible power sources. Designed explicitly for medical and industrial power supply needs. Compliance with international medical and safety standards.

Long MTBF of over 2 million hours guarantees dependable service life. Low leakage current reduces risk in sensitive applications. Reinforced isolation for patient safety and interference reduction.

Ideal for power supply designs in medical devices, industrial controls, laboratory instruments, and other precision electronic equipment requiring safe and stable voltage conversion.

Explore the wide range of power electronics and converters from TRACOPOWER at EnvMart for reliable component sourcing and expert technical support.
