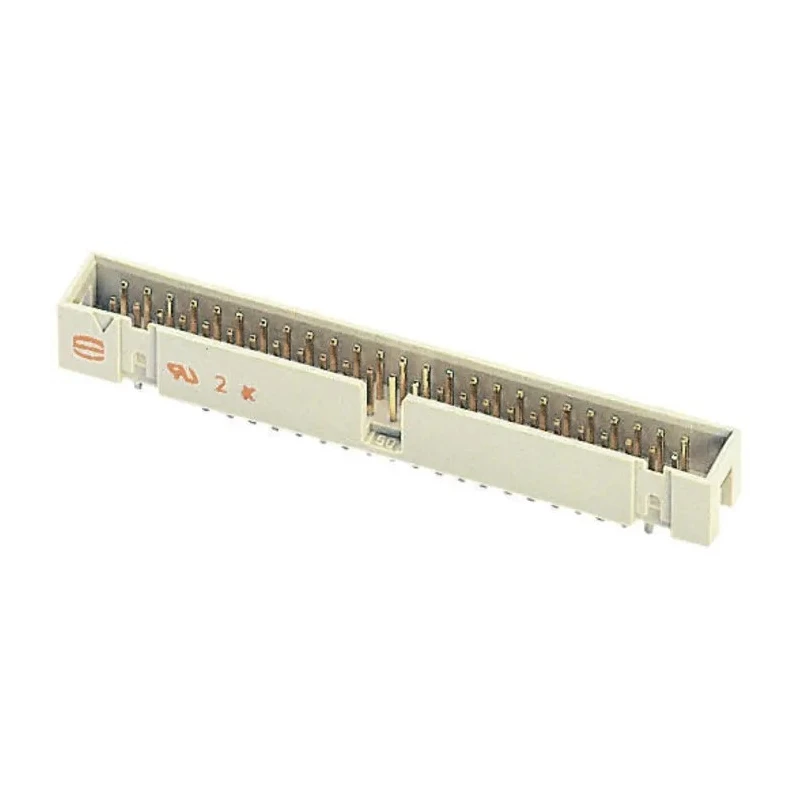

HARTING SEK 18 Series Straight Through Hole Shrouded PCB Header, 50 Contacts, 2.54 mm Pitch, 2 Row, Gold Plated 09185506324
Specifications
| Country of Origin | Switzerland |
|---|---|
| Voltage | 1kV |
| Brand | HARTING |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | SEK 18 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 50 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Features a shrouded connector design for enhanced protection and durability.
- Constructed with gold-plated copper alloy contacts for reliable conductivity.
- Through-hole mounting type supports robust soldering to PCB.
- Suitable for operating temperatures from -55°C to 125°C.
- Rated for 1A current and 1 kV voltage withstand capability.
- Polybutylene terephthalate housing provides excellent electrical insulation and durability.
- Designed for industrial and electronic component assembly applications.
Product Description
HARTING 09185506324 Series SEK 18 Straight Through Hole PCB Header offers a high-quality wire-to-board connection system designed for demanding industrial and electronic applications. This shrouded PCB header features 50 male contacts arranged in 2 rows with a 2.54 mm pitch spacing, providing precise and secure connectivity with gold-plated copper alloy contacts ensuring excellent electrical performance and corrosion resistance.
The housing is made of durable polybutylene terephthalate material, which provides outstanding insulation and mechanical strength in operating temperature ranges from -55°C up to 125°C. The header utilizes a through-hole mounting type and solder termination, allowing stable and reliable attachment to printed circuit boards in various environments.
This connector is rated for currents up to 1A and can withstand voltages up to 1 kV, making it suitable for various electronic, industrial control, power, and communication equipment. Its shrouded design protects the contacts from accidental damage and improves user safety during handling and assembly.
Features a shrouded connector design for enhanced protection and durability. Gold-plated copper alloy contacts guarantee excellent conductivity and corrosion resistance. Through-hole mounting for sturdy mechanical and electrical connections.
Operating temperature range: -55°C to 125°C for versatile industrial use. Rated 1A current carrying capacity and 1 kV voltage rating. Housing material: Polybutylene terephthalate ensures electrical insulation and durability.
Connector system: Wire-to-board, 2-row, 2.54 mm pitch. Male contact gender with solder termination enhances secure PCB integration.
This HARTING SEK 18 Series PCB Header is ideal for use in electronics manufacturing, industrial automation, communication systems, and other applications requiring dependable wire-to-board connections. It supports improved production efficiency by enabling easy insertion and soldering of connections in electronic assemblies.
Explore more HARTING connectors and related products at EnvMart to fulfill your industrial, laboratory, and manufacturing component requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PCB header is rated for a maximum voltage of 1 kV.
This model has a current carrying capacity of 1A.
The contacts are arranged with a pitch of 2.54 mm.
It features 50 male contacts arranged in 2 rows.
The header utilizes a through-hole mounting type for stable attachment to printed circuit boards.
It is constructed with a polybutylene terephthalate housing and gold-plated copper alloy contacts.
The operating temperature range is from -55°C to 125°C.
This model features a solder termination type for secure connections.
The contacts are oriented straight in this PCB header.
It is suitable for industrial automation, electronics manufacturing, and communication systems.
This connector features a shrouded design for enhanced protection and durability.
The country of origin for this product is Switzerland.
