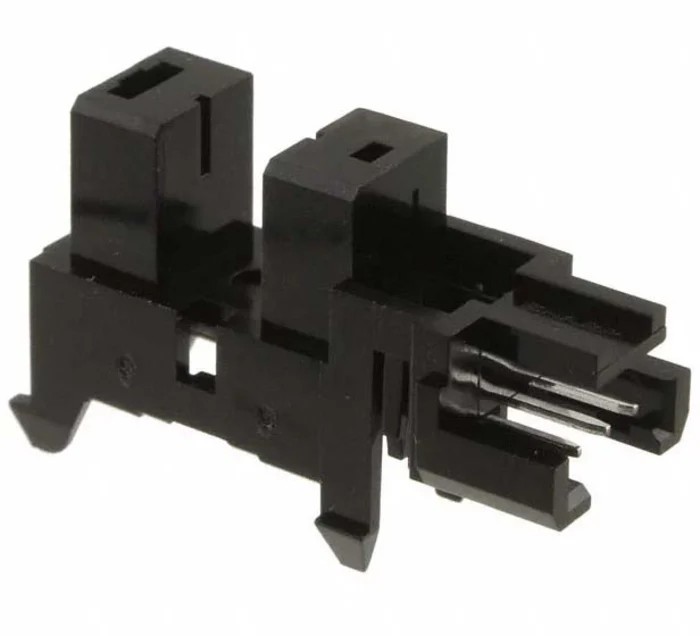

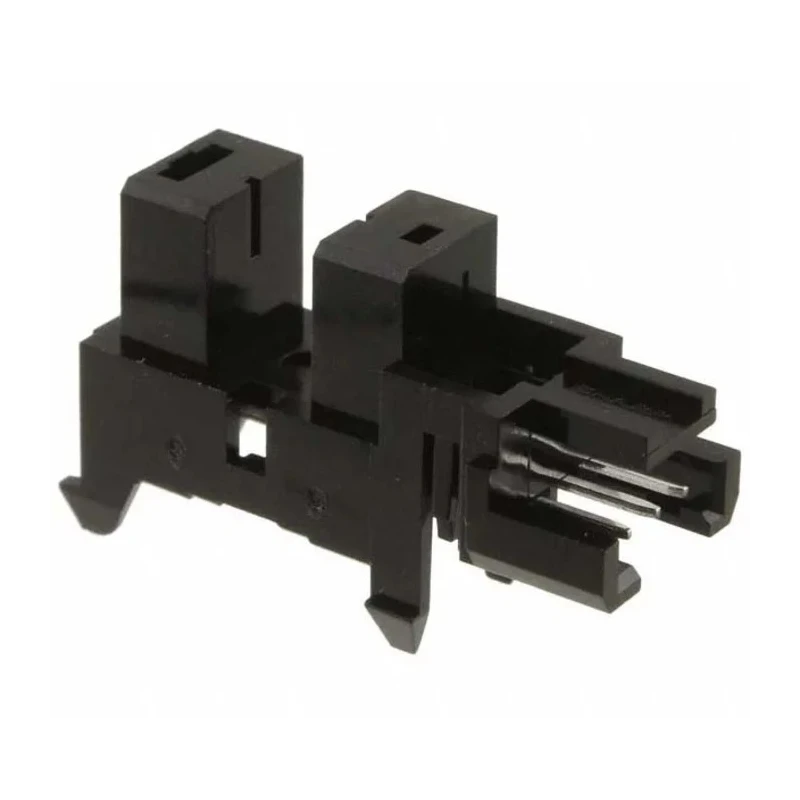

Sharp Snap-in Slotted Optical Switch with Phototransistor Output, 5mm Gap Width, 3μs Rise Time, 95°C Max GP1S173LCS2F

Free Delivery in India | Lowest Global Shipping Charges

Sharp Snap-in Slotted Optical Switch with Phototransistor Output, 5mm Gap Width, 3μs Rise Time, 95°C Max GP1S173LCS2F

Name: Sharp Snap-in Slotted Optical Switch with Phototransistor Output, 5mm Gap Width, 3μs Rise Time, 95°C Max GP1S173LCS2F
Brand: Sharp
SKU: 213094
Price: 1 USD
Availability: InStock



Category Slotted Optical Switch Brand Sharp Condition New

Specifications

Country of Origin	China
Brand	Sharp
Height	16.3mm
Length	27.1mm
Model	GP1S173LCS2F
Width	9.8mm
Mount Type	Snap-in
Series	GP1S173L
Maximum Operating Temperature	95°C
Package Type	Pin
Minimum Operating Temperature	-30°C
Slot Width	4.3mm
Number Of Channels	1
Output Device	Phototransistor
Standards/Approvals	RoHS
Number of Pins	5
Typical Rise Time	3μs
Typical Fall Time	4μs
Output Signal Type	Analogue
Key Parameters Gap Width	5mm, Slit Width (detector side) : 0.5mm, Package : 17 x 12.8 x 8mm (without connector and hooks), Connector : Tyco Electronics JAPAN G.K. (173977-3 and 179228-3)

Key Features

Features a 5mm gap width for accurate slot detection.
Typical rise time of 3 microseconds ensures fast response.
Operates within temperature range of -30°C to 95°C.
Includes a 5-pin snap-in package for easy installation.
RoHS directive compliant and designed for reliable performance.
Compact dimensions enable versatile integration in electronic systems.
Analogue output signal type for varied applications.
Ideal for industrial, electronic components, and optoelectronics uses.

Product Description

Sharp GP1S173LCS2F is a high-quality slotted optical switch featuring a phototransistor output designed for accurate and non-contact position detection. This snap-in type device includes an opposing emitter and detector housed in a compact case, providing reliable signalling in electronic and industrial sensing applications.

This model supports a 5mm gap width and offers swift switching with typical rise and fall times of 3μs and 4μs respectively. It is built to operate efficiently within a temperature range from -30°C up to 95°C. The package includes five pins and a snap-in mount type for secure and easy assembly.

The device's compact size (27.1mm length, 16.3mm height, 9.8mm width) and analogue output make it suitable for a variety of use cases including industrial automation, electronic components manufacturing, sensor integration, and optoelectronic devices.

Features a gap width of 5mm for precise slot detection. Snap-in mount type enables quick installation and replacement. Phototransistor output provides reliable analogue signalling. Compact pin package and dimensions optimize PCB space.

Compliant with RoHS directives ensuring environmental safety. Durable operation across a wide temperature range from -30°C to 95°C. Typical response times of 3μs rise and 4μs fall for rapid sensing tasks.

This slotted optical switch is widely used in industrial automation, electronic sensor assemblies, power and connector systems, and manufacturing processes requiring precise optical interruption detection. Its robust design and standard connector compatibility allow for flexible remote mounting or off-board design applications.
