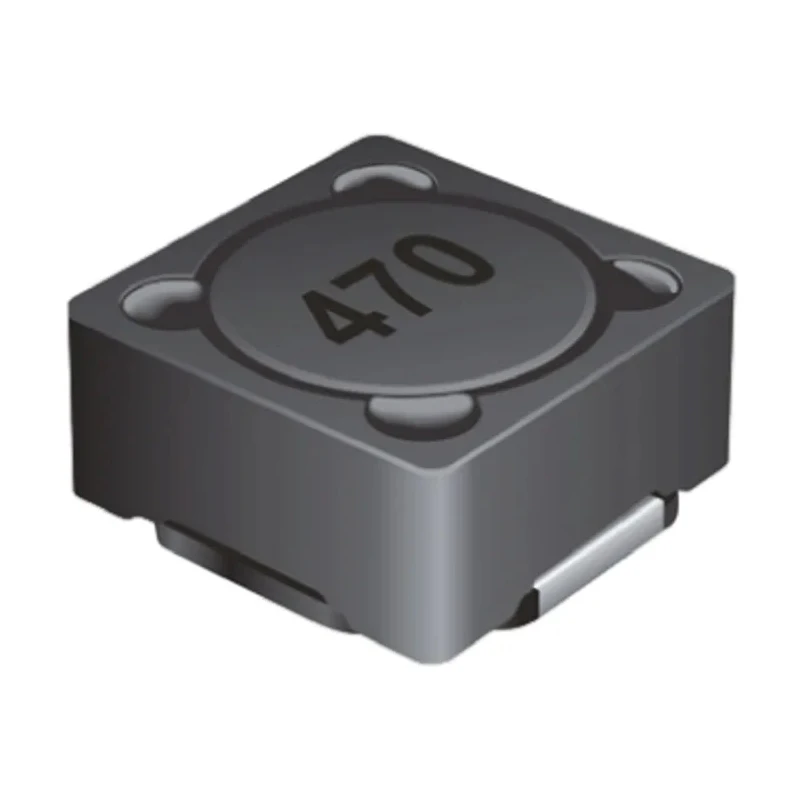

Bourns Shielded Wirewound Surface Mount Inductor 470 μH ±10% 950 mA DC, Ferrite Core, 1260 Case, SRR1260

Free Delivery in India | Lowest Global Shipping Charges

Bourns Shielded Wirewound Surface Mount Inductor 470 μH ±10% 950 mA DC, Ferrite Core, 1260 Case, SRR1260

Name: Bourns Shielded Wirewound Surface Mount Inductor 470 μH ±10% 950 mA DC, Ferrite Core, 1260 Case, SRR1260
Brand: BOURNS
SKU: 213075
Price: 1.05 USD
Availability: InStock



Category Surface Mount Inductors Brand BOURNS Condition New

Specifications

Country of Origin	India
Brand	Bourns
Height	6mm
Length	12.5mm
Model	SRR1260
Depth	12.5mm
Packaging	Reel
Series	SRR1260
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Core Material	Ferrite
Inductance	470μH
Standards/Approvals	RoHS
Package/Case	1260
Maximum DC Current	950mA
Pin Count	2
Maximum DC Resistance	820mΩ
Inductance Tolerance	±10 %
Termination Style	Solder
Maximum Self Resonant Frequency	2.6MHz
Minimum Quality Factor	18
Inductor Construction	Wirewound

Key Features

Features a ferrite core construction for effective magnetic shielding.
Compact 1260 case size with dimensions of 12.5mm length and 6mm height.
Maximum DC resistance of 820 milliohms ensures efficient operation.
Suitable for operating temperatures from -40°C to 125°C.
Designed for surface mount applications with solder termination style.
Maximum self-resonant frequency of 2.6 MHz supports high frequency tasks.
Minimum quality factor of 18 promotes signal integrity in power electronics.
RoHS compliant with magnetic shielding and moulded construction for durability.

Product Description

Bourns SRR1260 is a shielded wirewound surface mount inductor featuring a ferrite core, designed for advanced electronic component applications. It provides an inductance of 470 μH with a tolerance of ±10% and supports a maximum DC current of 950 mA, making it suitable for power supply circuits and DC/DC converters.

The 1260 package with dimensions 12.5mm in length and 6mm in height is optimized for surface mount technology (SMT) and uses solder termination for robust PCB mounting. Its maximum DC resistance is 820 milliohms, enabling efficient power handling and minimal loss.

This inductor functions reliably within a temperature range of -40°C to 125°C and features a maximum self-resonant frequency of 2.6 MHz, accommodating high-frequency signals in portable communication devices, camcorders, LCD TVs, and car radios.

Manufactured with a ferrite core and wirewound construction, the inductor offers magnetic shielding to minimize electromagnetic interference, ensuring signal integrity in electronic circuits. The moulded construction provides mechanical stability and protection during operation.

Ferrite core ensures effective magnetic flux containment. Shielded wirewound construction reduces EMI effects. RoHS compliant for environmental and safety standards. Suitable for use in DC/DC converter input/output and power supplies.

Compact size for space-saving PCB designs. High current rating appropriate for portable communication equipment. Durable moulded package enhances reliability and service life.

This high-quality surface mount inductor is ideal for industrial, electronic, and communication equipment manufacturing applications. Explore more components from the Surface Mount Inductors category to find complementary parts for your projects.
