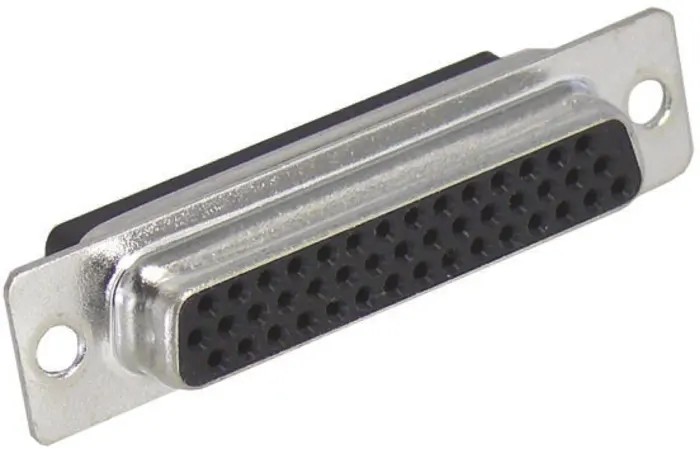

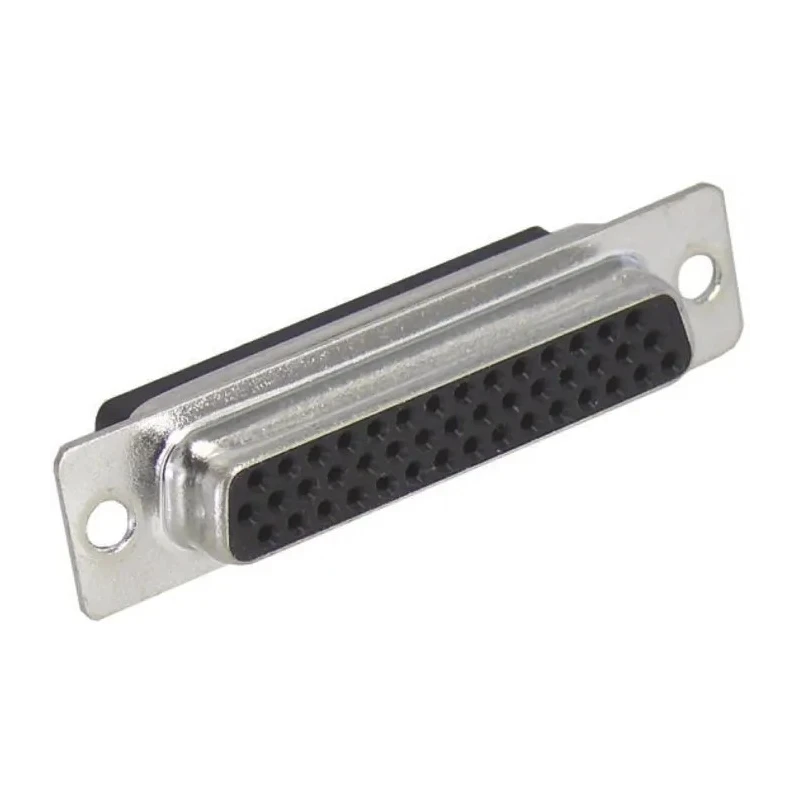

HARTING D-Sub 62 Way Straight 2.41 mm Pitch Cable Connector Female with Screw Lock 09564004701

HARTING 09564004701 D-Sub 62 Way Straight 2.41 mm Pitch Cable D-Sub Connector Female with Screw Lock is engineered for industrial and electronic equipment requiring reliable high-density cable connections.

This connector features 62 contacts arranged with a 2.41 mm pitch, enabling significant contact capacity that exceeds standard subminiature D connectors by approximately 70%. The straight cable orientation combined with a threaded screw lock mounting ensures a secure and robust connection under vibration and mechanical stress conditions.

The housing is fabricated from robust steel, offering essential mechanical protection and electromagnetic shielding. Contacts, crafted from copper alloy and gold plated, provide excellent electrical conductivity and corrosion resistance, essential for maintaining signal integrity in challenging environments.

Specifications include a voltage rating of 1000V and operating temperature from -55°C minimum to 105°C maximum, making it suitable for various harsh industrial settings. Termination is via a crimp mechanism, facilitating firm and efficient attachment to cables. This product carries UL Recognised status, UL 94-V0 flammability rating, and RoHS compliance, ensuring adherence to stringent quality and safety norms.

The connector is part of the well-regarded D-Sub series, with a DS-4 sized shell, tailored for high-density interfacing in industries such as manufacturing, automation, test equipment, and telecommunications. It is compatible with female crimp contacts which are available separately under part numbers 692-7374 or 692-7383.

Provides 62 contact points suitable for high-density signal transmission. Features a straight cable orientation with screw lock mounting for secure installation. Constructed with a steel housing that ensures durability and protection.

Contacts are made from copper alloy and gold plated for corrosion resistance and signal integrity. Operates safely up to 1000V and temperatures ranging from -55°C to 105°C. Termination type is crimp, ideal for reliable cable connection.

UL Recognised, UL 94-V0, and RoHS compliance ensures electrical safety and environmental standards. Part of the D-Sub series with DS-4 shell size, suitable for industrial and electronics applications. Designed for female connector gender and compatible with crimp terminals (contacts sold separately).

This HARTING D-Sub Connector is ideal for industrial, automation, telecommunications, and electronic assembly applications requiring high reliability and robust connection solutions. Explore more connectors and electrical components in the EnvMart catalogue for comprehensive options.
