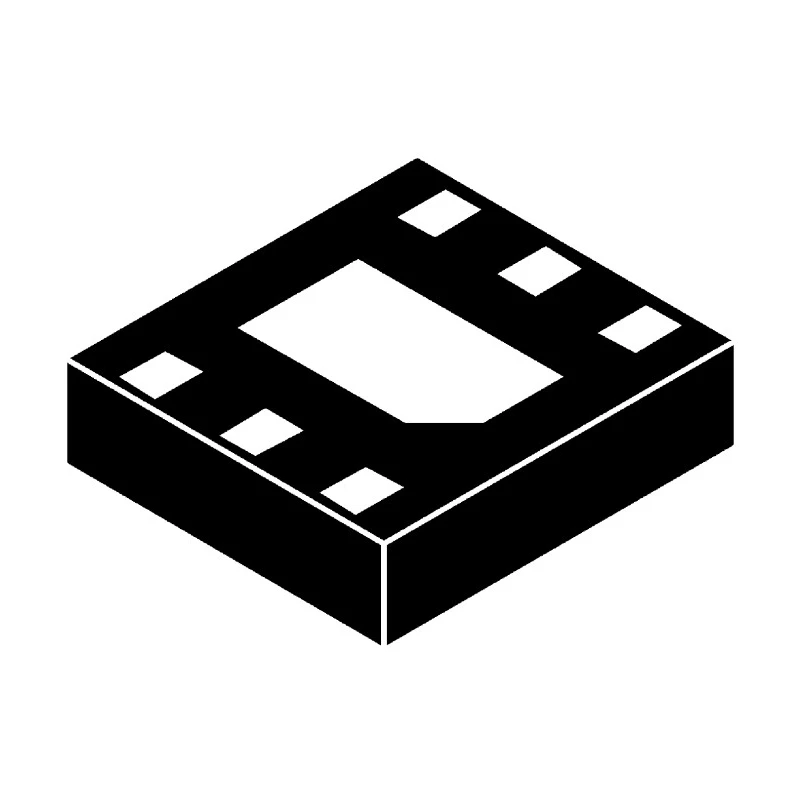

Semtech 1-Element Uni-Directional TVS Diode Array 80W 6-Pin Surface Mount SLP EP RCLAMP2504P.TCT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Semtech |
| Height | 0.55mm |
| Length | 1.6mm |
| Model | RCLAMP2504P.TCT |
| Width | 1.6mm |
| Mount Type | Surface |
| Series | RCLAMP2504P |
| Maximum Operating Temperature | 85°C |
| Package Type | SLP EP |
| Minimum Operating Temperature | -40°C |
| Pin Count | 6 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 13V |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Maximum Reverse Stand-off Voltage Vwm | 2.5V |
| Peak Pulse Power Dissipation Pppm | 80W |
| Maximum Peak Pulse Current Ippm | 5A |
| Maximum Reverse Leakage Current | 500nA |
Key Features
- Single diode configuration for precise protection.
- Uni-directional design for effective transient voltage suppression.
- Surface mount package type SLP EP with 6 pins.
- Maximum reverse stand-off voltage of 2.5V ensures reliable performance.
- Clamping voltage rated at 13V to protect circuits.
- Operates within a temperature range of -40°C to 85°C.
- Maximum peak pulse current of 5A provides robust ESD protection.
- Low maximum reverse leakage current of 500nA minimizes power loss.
Product Description
Semtech RCLAMP2504P.TCT is a high-quality 1-element uni-directional Transient Voltage Suppressor (TVS) diode array designed for robust circuit protection in electronic components. This device features an 80W peak pulse power dissipation capability within a compact 6-pin surface mount SLP EP package, making it suitable for various industrial and electronic applications.
Specifically engineered for uni-directional transient voltage suppression, the RCLAMP2504P.TCT provides effective protection against voltage spikes and ESD events with a maximum peak pulse current of 5A and clamping voltage of 13V. The device operates reliably over a temperature range from -40°C to 85°C, ensuring stability in harsh environments.
With a low maximum reverse leakage current of 500nA and a modest maximum reverse stand-off voltage of 2.5V, it delivers efficient and precise protection to sensitive circuitry. The diode array has compact dimensions of 1.6mm in length and width, and a height of 0.55mm, facilitating easy integration in dense PCB layouts.
This TVS Diode Array is ideal for industrial, electronic manufacturing, telecommunications, automotive electronics, and other applications requiring stringent transient voltage suppression and ESD protection.
Single diode configuration for accurate protection. Uni-directional functionality protects against directional voltage surges. Surface mount technology suitable for automated assembly processes. High peak pulse power dissipation up to 80W for handling transient surges.
Compact footprint enables design flexibility in electronic products. Extended operating temperature range supports harsh environmental conditions. Low leakage current helps reduce power consumption. Complies with standard industrial transient voltage suppressor specifications.
Available in a 6-pin SLP EP package, the RCLAMP2504P.TCT supports efficient automated insertion into PCB assemblies, enhancing production efficiency and reliability. It is a trusted component for protecting sensitive electronic devices against surge damage and electrostatic discharge.
Explore more advanced electronic components and semiconductor protection solutions in the EnvMart product catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum peak pulse power dissipation of the RCLAMP2504P.TCT is 80W, allowing it to handle significant transient surges effectively.
This model operates reliably within a temperature range of -40°C to 85°C, making it suitable for harsh environmental conditions.
The clamping voltage of this TVS diode array is rated at 13V, providing effective protection against voltage spikes.
The maximum reverse stand-off voltage for the RCLAMP2504P.TCT is 2.5V, ensuring reliable performance in protecting sensitive circuits.
This diode array can handle a maximum peak pulse current of 5A, providing robust ESD protection.
The dimensions of this model are 1.6mm in length and width, with a height of 0.55mm, facilitating easy integration into PCB layouts.
This TVS diode array features a total of 6 pins, suitable for surface mount applications.
The RCLAMP2504P.TCT utilizes a single diode configuration for precise protection against transient voltage.
The maximum reverse leakage current is 500nA, which helps minimize power loss during operation.
This model is packaged in a 6-pin SLP EP surface mount configuration, suitable for automated assembly processes.
Yes, this TVS diode array is designed as a uni-directional device, providing effective transient voltage suppression in one direction.
This model is suitable for various applications including industrial, electronic manufacturing, telecommunications, and automotive electronics, where transient voltage suppression is required.
