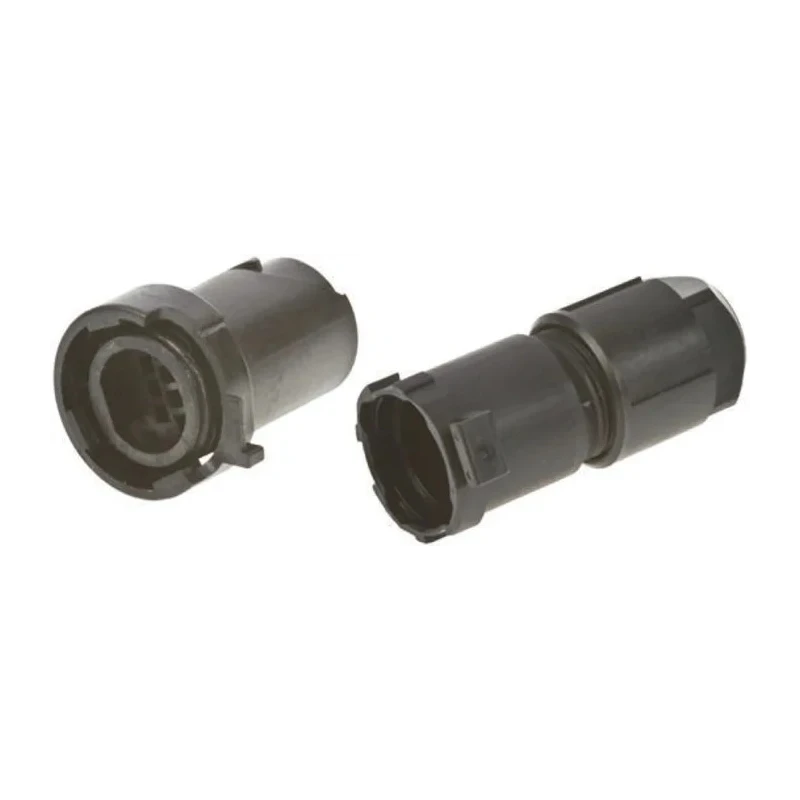

JAE Circular Connector 10 Contacts Cable Mount Socket Male IP67 22 mm Connector JN1HS10PL1

JAE JN1HS10PL1 Circular Connector is a reliable electrical connector designed for industrial applications requiring waterproof and dustproof performance with an IP67 rating. This cable mount socket connector features 10 contacts with a male contact gender, suitable for secure and consistent electrical connections.

The connector supports up to 200 V voltage and 3 A current, accommodating medium power industrial signaling and control circuits. Its 22 mm connector size and 20.3 mm shell size ensure compatibility with standard circular connector assemblies. The push lock mating mechanism and straight orientation enhance ease of use and secure fitting, minimizing accidental disconnections.

Crafted with a synthetic resin housing for durability and environmental resistance, the contacts are made from copper with gold plating to ensure excellent conductivity and corrosion resistance. It operates within a temperature range of -20°C to 125°C, suitable for various industrial environments.

The termination type is crimp, providing a robust mechanical and electrical connection to cables. This inline cable receptacle belongs to the JN1 series, which includes features such as a push and twist one-touch lock mechanism for easy and sure mating. The design complies with no specific standards or approvals but focuses on high performance, durability, and protection against dust and water ingress.

This circular connector is ideal for applications in industrial machinery, automation, instrumentation, and other electronic systems requiring reliable cable connections with environmental sealing. The IP67 rating assures protection from dust and immersion in water up to 1 meter depth. Its robust construction enables usage in demanding conditions encountered in factories, laboratories, and outdoor settings.

The product is brand new and made in India, offering dependable circular connector solutions for industrial and electronic components needs. Explore other industrial circular connector options and compatible components within the Electronics & Electricals category on EnvMart for comprehensive solutions.

Rated for 200 V and 3 A current capacity. Features a 22 mm connector size with a 20.3 mm shell size. Push lock mating type with a straight orientation. Contact material is copper with gold plating for enhanced conductivity.

Housing made of synthetic resin resistant to environmental factors. Operates reliably between -20°C and 125°C. Termination type is crimp for secure connection. Designed as an in-line cable receptacle. Series JN1 ensures easy, sure mating with a push and twist one-touch lock mechanism.
