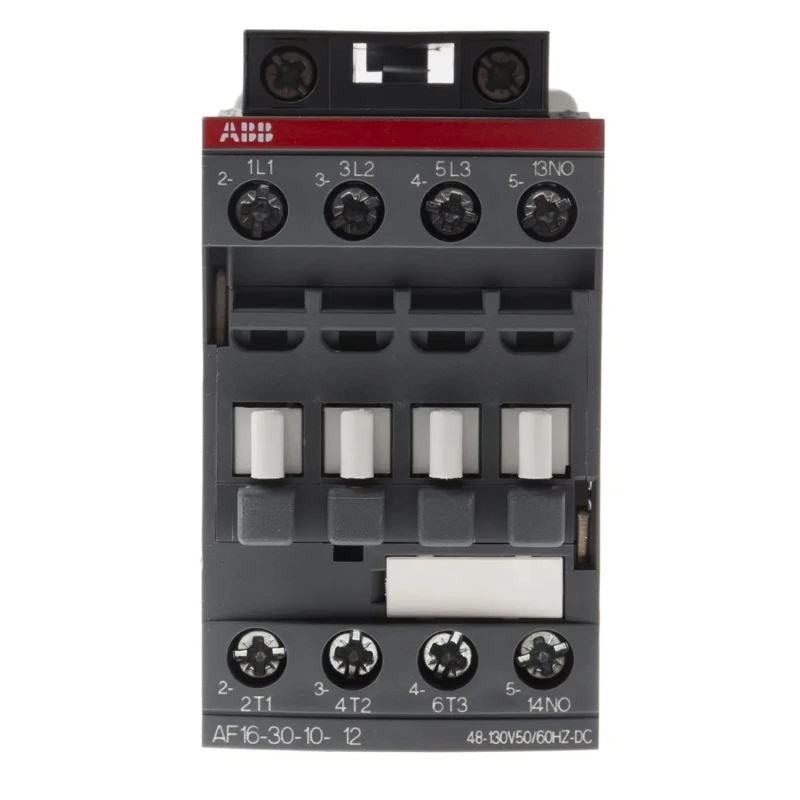

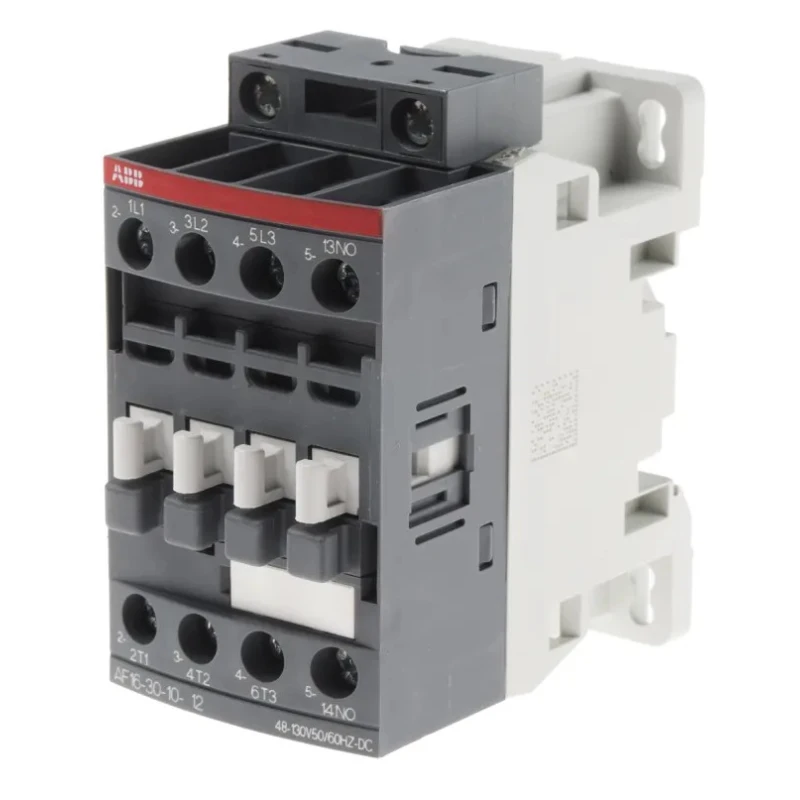

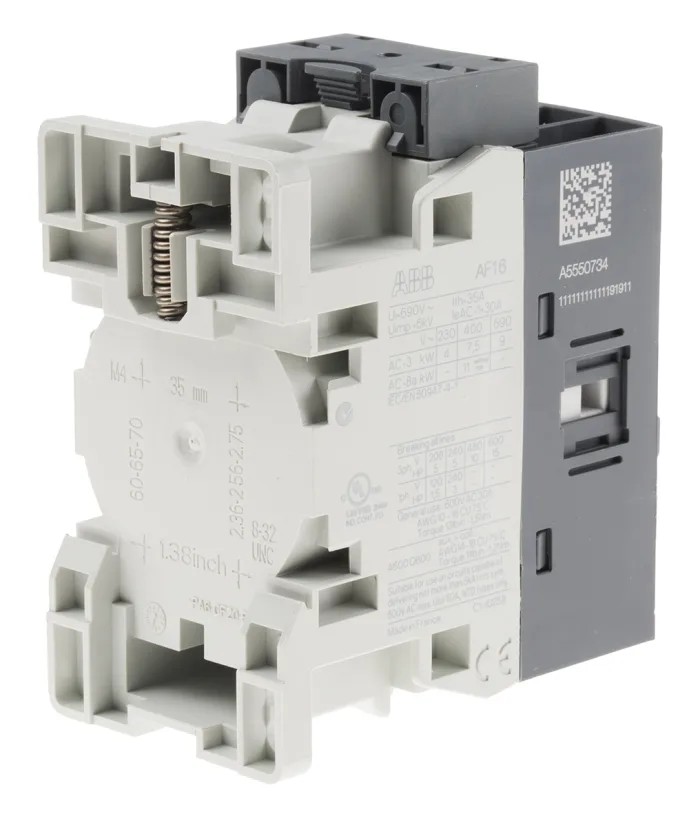

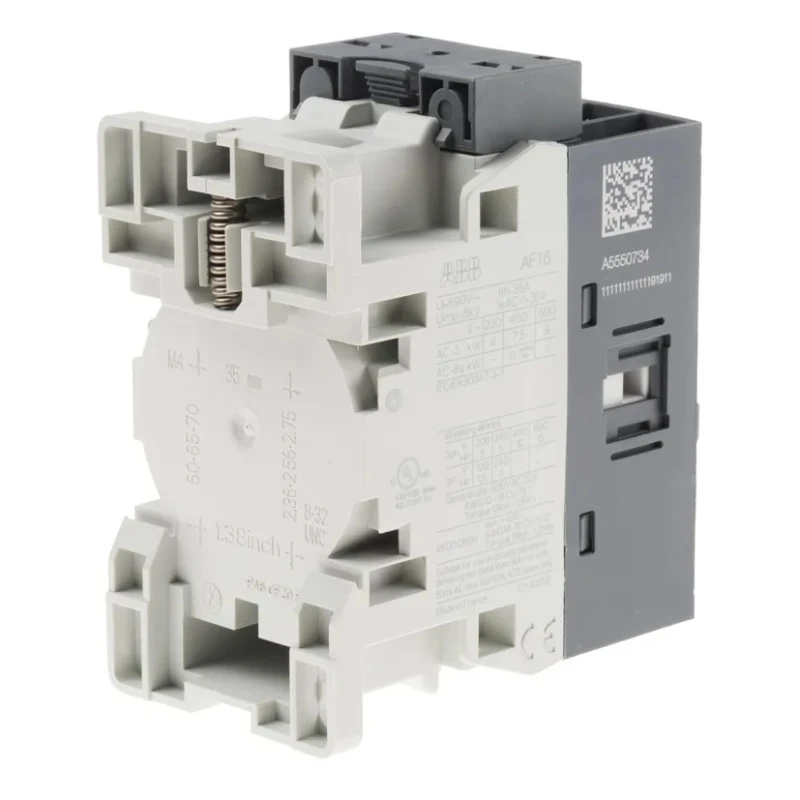

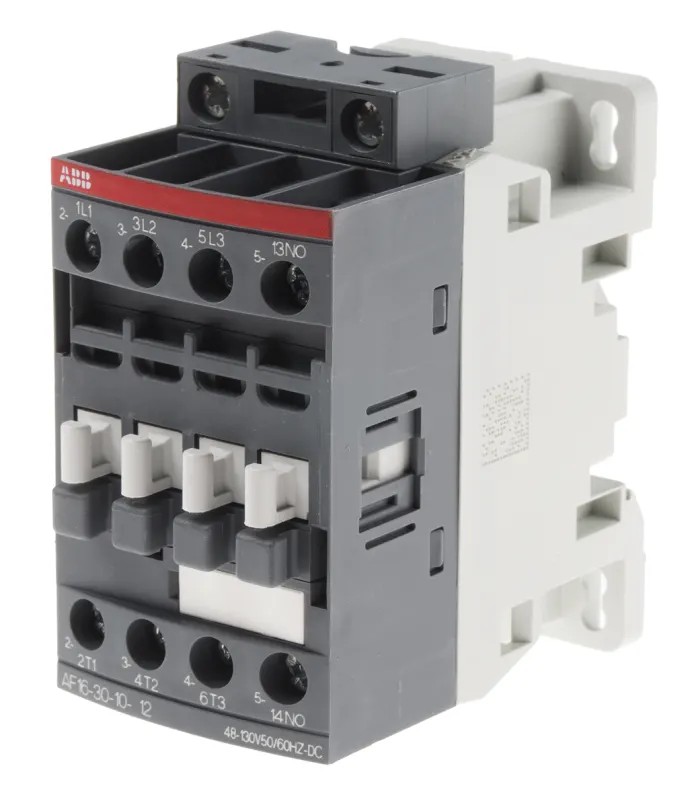

ABB AF16 Contactor, 110V DC Coil, 3-Pole, 10.5 A, 7.5 kW, 3 NO, 690V AC AF16
Specifications
| Country of Origin | India |
|---|---|
| Brand | ABB |
| Function | Motor Control |
| Length | 80mm |
| Model | AF16 |
| Depth | 77mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | AF16 |
| Power Rating | 7.5kW |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | IEC 60947-4-1 |
| Contact Voltage | 690V ac |
| Coil Voltage | 110V dc |
| Normal State Configuration | 3 NO |
| Contact Current | 10.5A |
| Number of Auxiliary Contacts | 1 |
| Auxiliary Contact Configuration | 1 NO |
| Operational Current Ie | 30A |
| Control Circuit Voltage Uc | 130V |
| Contactor Application | Motor Control |
| Pole and Throw Configuration | 3 |
Key Features
- Designed for reliable motor control applications.
- Operates with a coil voltage of 110V DC and control circuit voltage of 130V.
- Equipped with one auxiliary contact configured as 1 NO.
- Mounts easily on DIN rail with screw terminal connections.
- Suitable for motor control up to 7.5 kW power rating.
- Rated contact current is 10.5 A at 690V AC.
- Operates in temperature range from -40°C to +70°C.
- Built-in surge protection enhances durability and performance.
Product Description
ABB AF16 Contactor (model AF16) features a robust 110V DC coil designed for effective motor control in industrial automation and electrical applications. It supports a contact voltage of 690V AC and a contact current of 10.5 A, suitable for motors with power ratings up to 7.5 kW. This 3-pole contactor includes one auxiliary contact configured as 1 NO and is mounted conveniently on a DIN rail using screw terminals for secure and reliable installation.
The device operates efficiently within a wide temperature range from -40°C to +70°C, ensuring performance stability in diverse environments. Its built-in surge protection enhances resilience against electrical spikes, while the control voltage range of 48V to 130V allows handling of voltage fluctuations. The AF16 model supports up to 1200 electrical switching cycles per hour, making it suitable for frequent operation in demanding setups.
With compact dimensions of 80mm length, 45mm width, and 77mm depth, this contactor fits seamlessly in panel designs where space optimization is critical. The screw terminal type offers solid connection integrity for operational current up to 30 A.
This product is ideal for motor control applications in industrial manufacturing, HVAC systems, automation control panels, and electrical distribution networks. Its conformity to IEC 60947-4-1 standards guarantees compliance with industry safety and performance norms.
Designed for reliable motor control applications. Operates with a coil voltage of 110V DC and control circuit voltage of 130V. Equipped with one auxiliary contact configured as 1 NO. Mounts easily on DIN rail with screw terminal connections.
Suitable for motor control up to 7.5 kW power rating. Rated contact current is 10.5 A at 690V AC. Operates in temperature range from -40°C to +70°C. Built-in surge protection enhances durability and performance. Supports up to 1200 switching cycles per hour.
Compact design with dimensions 80mm length, 45mm width, and 77mm depth. Explore the ABB AF16 series and related Contactors for efficient and dependable motor control solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rated contact current of this model is 10.5 A at 690V AC.
It is suitable for motor control applications with a power rating of up to 7.5 kW.
The coil voltage for the ABB AF16 Contactor is 110V DC.
This model operates efficiently within a temperature range from -40°C to +70°C.
The contactor features a 3-pole configuration.
It mounts easily on a DIN rail using screw terminal connections.
The auxiliary contact is configured as 1 NO (Normally Open).
The operational current rating is up to 30 A.
It conforms to the IEC 60947-4-1 standards for safety and performance.
This model supports up to 1200 electrical switching cycles per hour.
The dimensions are 80mm in length, 45mm in width, and 77mm in depth.
The control circuit voltage is rated at 130V.
