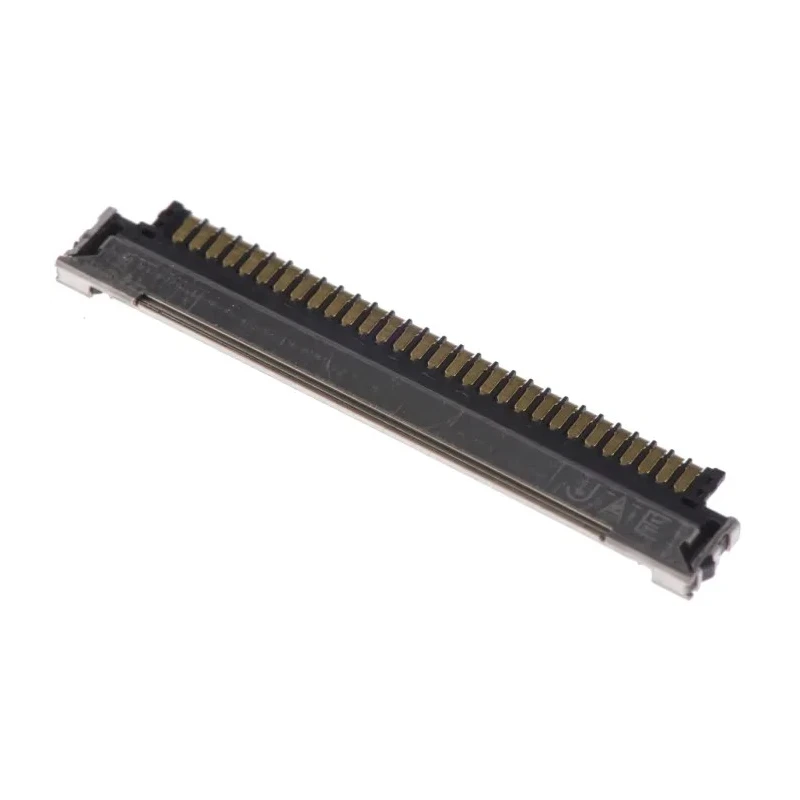

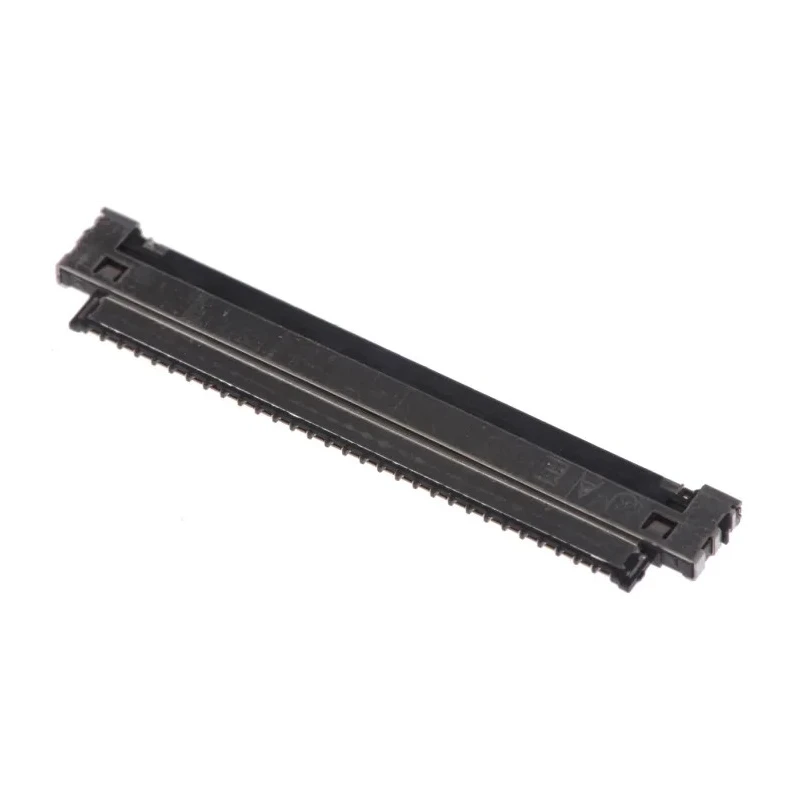

JAE FI-X 1 mm Pitch 30 Way 1 Row Straight Cable LVDS Connector FCP Plug Push-in FI-X30MR-NPB

JAE FI-X30MR-NPB is a 30 way, 1 row, straight cable LVDS connector designed with a 1 mm pitch FCP Plug and push-in termination type. This connector employs copper alloy contacts within a beige nylon housing to provide robust electrical performance and mechanical stability.

Engineered to support low voltage differential signaling, the FI-X30MR-NPB is adept at handling high-speed differential transmissions at impedance values between 90 and 100Ω. Its push-in termination ensures secure and straightforward cable connections, making it suitable for a variety of electronics applications including LCD, PDP, and rear projection displays.

The connector is part of JAE's FI-X series, a trusted family of LVDS connectors widely adopted in the industry, including being selected by VESA as a standard for LCD interfaces. The straight orientation of the connector facilitates neat and efficient cable management in tight electronics assemblies.

With its compliance to RoHS standards, the FI-X30MR-NPB meets environmental safety requirements, ensuring no hazardous substances are involved in its manufacture. 30 contacts in a single row for reliable LVDS signal transmission.

1 mm pitch providing precise connection spacing. Copper alloy contact material for excellent conductivity. Beige nylon housing offering mechanical durability. Push-in termination type for simplified cable installation. Supports high-speed differential signals, meeting 90 to 100Ω impedance.

Straight cable orientation for optimized routing. RoHS compliant, environmentally safe design.

This connector is well-suited for industrial and commercial electronics manufacturing, laboratory equipment, and other applications where high fidelity LVDS connections are required.
