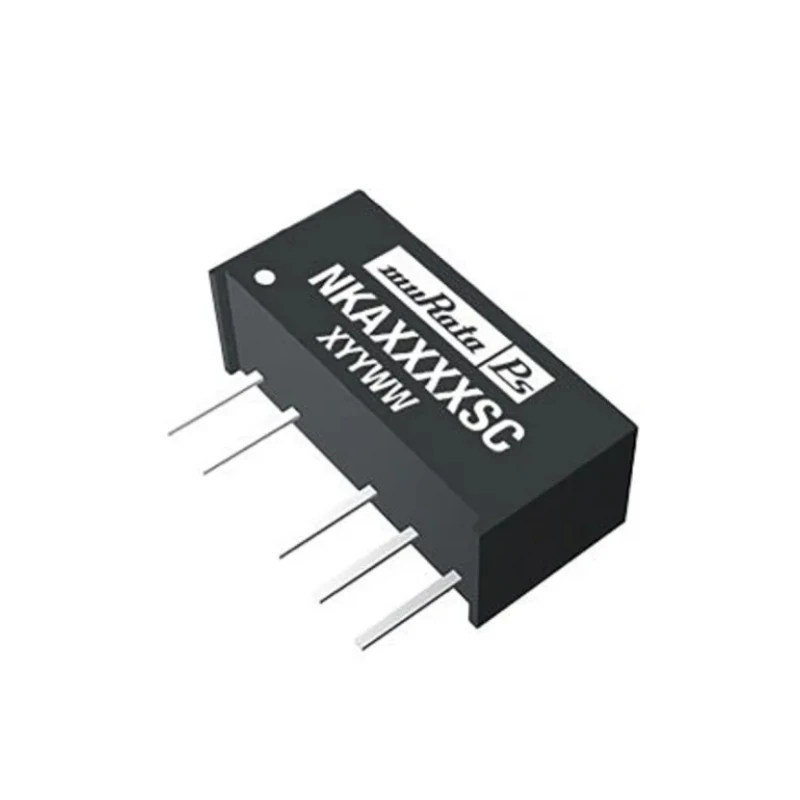

Murata Power Solutions SIP Dual Output Isolated DC/DC Converter 15V DC 33 mA 5.5V Input 4.5V Input 3 W 85 °C NKA0515SC

Murata Power Solutions NKA0515SC is a highly reliable SIP dual output isolated DC/DC converter engineered to deliver a regulated 15 V DC output with 33 mA current load. It operates efficiently within input voltages ranging from 4.5 V to 5.5 V DC and provides a maximum output power of 3 W. The device features a fully encapsulated package material meeting UL 94V-0 flame retardant standards and ensures electrical isolation rated at 3 kV DC, suitable for separating input and output circuits.

Its compact design with a length of 16.5 mm, depth of 7.55 mm, and width of 5.4 mm enables seamless integration into various electronic and industrial applications. The through-hole mounting style simplifies PCB assembly processes. The converter demonstrates a high mean time between failures (MTBF) of 188,000 hours, reflecting superior reliability for continuous operation in demanding environments.

The output voltage adjustment range of 2.97 to 3.63 V provides added versatility.

Additionally, the device achieves an efficiency of 79%, minimizing energy loss and heat generation, suitable for compact power designs. It complies with RoHS standards ensuring environmental compliance and safer manufacturing practices. The lightweight of approximately 1.4 g further supports compact and portable power solutions.

Dual isolated outputs in SIP package for space-efficient power conversion. 3 kV DC isolation enhances safety and noise immunity. Efficient operation with 79% efficiency for energy saving. Wide temperature tolerance from -40 °C to 85 °C for harsh environments.

Output voltage adjustable between 2.97 V and 3.63 V for application flexibility. Extensive MTBF of 188,000 hours ensures reliable long-term use. Through hole mounting for robust PCB assembly integration. Fully encapsulated, UL 94V-0 compliant package for enhanced safety.

Lightweight design aids portable and compact applications. RoHS compliant for environmentally responsible manufacturing.

This product is ideal for industrial power supplies, telecommunications, embedded systems, and other electronic applications requiring stable, isolated dual voltage outputs with low ripple and noise characteristics. Explore more from Murata Power Solutions and other DC/DC Converters in our catalog to find tailored power solutions for your projects.
