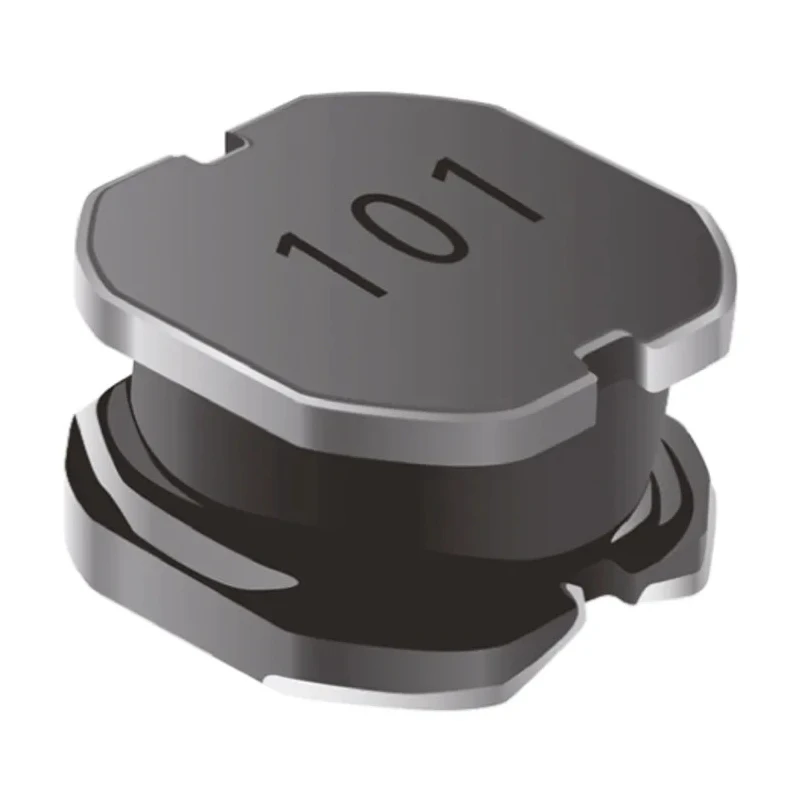

Bourns 1060 Shielded Wirewound Surface Mount Inductor 330 μH ±20 % 900 mA Idc Q:13 SRN1060
Specifications
| Country of Origin | India |
|---|---|
| Brand | Bourns |
| Height | 6mm |
| Length | 9.8mm |
| Model | SRN1060 |
| Depth | 10mm |
| Packaging | Reel |
| Series | SRN1060 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 330μH |
| Standards/Approvals | RoHS |
| Package/Case | 1060 |
| Maximum DC Current | 900mA |
| Pin Count | 2 |
| Maximum DC Resistance | 620mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 2.5MHz |
| Minimum Quality Factor | 13 |
| Inductor Construction | Wirewound |
Key Features
- Constructed with ferrite core to ensure high magnetic performance.
- Features semi magnetically shielded wire wound construction for minimal interference.
- Compact 1060 package size with dimensions 9.8 x 10 x 6 mm (LxDxH).
- Maximum operating temperature rated at 125°C for reliable operation.
- RoHS compliant with solder termination style for easy PCB mounting.
- Inductor offers maximum DC resistance of 620 mΩ and minimum quality factor of 13.
- Designed for use in DC/DC converters, notebook computers, and digital video cameras.
- Operates within temperature range of -40°C to 125°C for versatile industrial applications.
Product Description
Bourns SRN1060 Shielded Wirewound Surface Mount Inductor features a ferrite core and offers an inductance of 330 μH with ±20 % tolerance, designed for compact PCB mounting.
This miniature SMD power inductor provides a maximum DC current of 900 mA and is constructed with semi magnetically shielded wirewound technology that minimizes electromagnetic interference and ensures stable operation.
With a compact 1060 package size measuring 9.8 mm length, 10 mm depth, and 6 mm height, it facilitates installation in space-constrained electronic devices. The inductor withstands operating temperatures from -40°C up to 125°C, making it suitable for demanding industrial and commercial electronics use.
It is RoHS compliant and features solder termination style for efficient PCB assembly. The maximum DC resistance of 620 mΩ ensures effective current handling, while the minimum quality factor of 13 supports reliable performance at high frequencies.
The product is ideal for applications such as DC/DC converters, notebook computers, digital video cameras, televisions, and LCD displays, where compact and efficient inductors are necessary.
Constructed with ferrite core to ensure high magnetic performance. Features semi magnetically shielded wire wound construction for minimal interference. Compact 1060 package size with dimensions 9.8 x 10 x 6 mm (LxDxH). Maximum operating temperature rated at 125°C for reliable operation.
RoHS compliant with solder termination style for easy PCB mounting. Inductor offers maximum DC resistance of 620 mΩ and minimum quality factor of 13. Designed for use in DC/DC converters, notebook computers, and digital video cameras.
Operates within temperature range of -40°C to 125°C for versatile industrial applications. Maximum self-resonant frequency is 2.5 MHz for high frequency circuit compatibility.
This product fits within the Surface Mount Inductor category on EnvMart, catering to electronics and electrical industrial needs. Explore more of Bourns brand components and related inductors on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SRN1060 inductor has an inductance value of 330 μH with a tolerance of ±20%.
This model can handle a maximum DC current of 900 mA.
The inductor has dimensions of 9.8 mm in length, 10 mm in depth, and 6 mm in height.
The maximum operating temperature for this inductor is rated at 125°C.
The minimum operating temperature for the SRN1060 is -40°C.
This inductor is constructed with a ferrite core, which ensures high magnetic performance.
The maximum DC resistance for the SRN1060 is 620 mΩ.
This model has a minimum quality factor of 13.
The maximum self-resonant frequency for the SRN1060 is 2.5 MHz.
The inductor features a solder termination style for easy PCB mounting.
Yes, the SRN1060 is RoHS compliant.
This inductor is designed for use in DC/DC converters, notebook computers, and digital video cameras.
