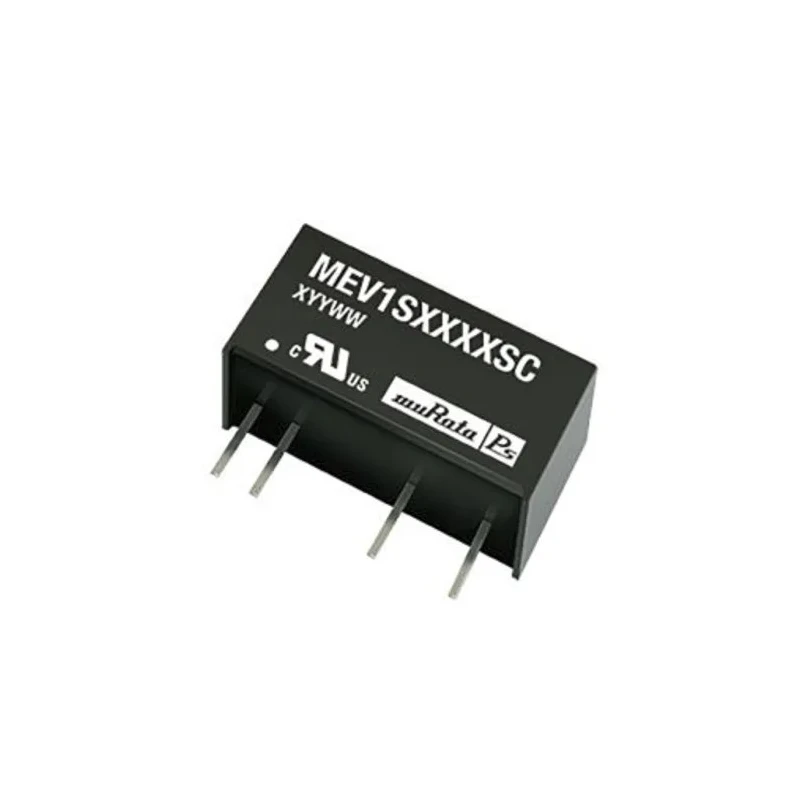

Murata Power Solutions 1W SIP Single Output DC/DC Converter, 15V Output, 4.5-5.5V Input, Through Hole, 85°C Max MEV1

Free Delivery in India | Lowest Global Shipping Charges

Murata Power Solutions 1W SIP Single Output DC/DC Converter, 15V Output, 4.5-5.5V Input, Through Hole, 85°C Max MEV1

Name: Murata Power Solutions 1W SIP Single Output DC/DC Converter, 15V Output, 4.5-5.5V Input, Through Hole, 85°C Max MEV1
Brand: Murata Power Solutions
SKU: 212479
Price: 13.05 USD
Availability: InStock



Category DC/DC Converter Brand Murata Power Solutions Condition New

Specifications

Country of Origin	China
Voltage	Converters / DC-DC Converters Murata Power Solutions MEV1 DC/DC Converter, 15V d
Brand	Murata Power Solutions
Efficiency	87.5%
Length	19.5mm
Model	MEV1
Depth	10mm
Gross Weight	2.5g
Width	6.8mm
Mount Type	Through Hole
Series	MEV1
Maximum Operating Temperature	85°C
Package Type	SIP
Minimum Operating Temperature	-40°C
MTBF	6496000h
Number of outputs	1
Ripple and Noise	15mV Pk-Pk
Maximum Output Power	1W
Maximum Input Voltage	5.5V dc
Standards/Approvals	RoHS
Minimum Input Voltage	4.5V
Number of Pins	7
Output Voltage 1	15V dc
Output Voltage Adjustment Range	4.5/5.5 V
Isolation Voltage	3kV dc
Output Current 2	67A

Key Features

Output voltage fixed at 15V DC with input voltage range of 4.5V to 5.5V DC.
Single isolated output with 3kV DC galvanic isolation ensures minimal switching noise.
High efficiency of up to 87.5% with a compact SIP7 package.
Wide operating temperature range from -40°C to 85°C for demanding environments.
Robust design with no requirement for heatsinks or external components.
Low ripple and noise output at 15mV peak-to-peak for sensitive electronics.
Mean time between failures (MTBF) rated at 6,496,000 hours ensuring reliability.
Fully encapsulated construction with toroidal magnetics enhances durability.

Product Description

Murata Power Solutions MEV1 model is a 1 watt single output DC/DC converter enclosed in a small SIP7 through-hole package designed for isolated power supply applications. It delivers a fixed 15V DC output from a low voltage input range of 4.5 to 5.5 volts DC with galvanic isolation of 3kV DC, reducing interference and switching noise effectively.

Featuring an efficiency rating of 87.5%, the converter offers reliable power delivery and minimizes energy loss. The device operates in a wide temperature range from -40°C up to 85°C, making it suitable for industrial, instrumentation, telecommunications, and embedded system applications requiring stable isolated power supply under harsh conditions.

This DC/DC converter requires no additional external components or heatsinks thanks to its fully encapsulated design and toroidal magnetic construction. Its low ripple and noise output (15mV peak-to-peak) supports use in noise-sensitive electronics.

The unit’s robust build ensures long operational life with a mean time between failures (MTBF) of approximately 6,496,000 hours and meets RoHS compliance for environmental safety. Molded in a UL94V-0-rated flame retardant housing, it provides enhanced safety and durability.

This converter is ideal for integration on control system boards where isolated local supplies are needed. The industry standard SIP7 pinout facilitates easy replacement and mounting on standard circuit boards via through-hole installation.

Output voltage fixed at 15V DC with input voltage range of 4.5V to 5.5V DC. 3kV DC galvanic isolation reduces interference and switching noise. High efficiency of 87.5% minimizes power loss. Wide operating temperature range from -40°C to 85°C suitable for harsh environments.

Fully encapsulated with toroidal magnetics, no heatsink needed. Low ripple and noise output of 15mV peak-to-peak. MTBF of 6,496,000 hours for high reliability. RoHS compliant with UL94V-0 flame retardant package. SIP7 through-hole mounting for easy PCB installation.

Ideal for industrial, laboratory, telecommunications, and embedded control power supply applications requiring compact, reliable, and efficient isolated DC power conversion. Explore more components and solutions in the DC/DC Converter category at EnvMart.
